Multi - Horn Ultrasonic Spot Welding Machine For Welding 35kHz Mechanical Arm

China Multi - Horn Ultrasonic Spot Welding Machine For Welding 35kHz Mechanical Arm supplier
Multi - Horn Ultrasonic Spot Welding Machine For Welding 35kHz Mechanical Arm supplier Multi - Horn Ultrasonic Spot Welding Machine For Welding 35kHz Mechanical Arm supplier Multi - Horn Ultrasonic Spot Welding Machine For Welding 35kHz Mechanical Arm supplier

Large Image :  Multi - Horn Ultrasonic Spot Welding Machine For Welding 35kHz Mechanical Arm

Product Details:

Place of Origin: China
Brand Name: Altrasonic
Certification: CE
Model Number: HSW35

Payment & Shipping Terms:

Minimum Order Quantity: 1 unit
Price: Negotiation
Packaging Details: Carton or Wooden Case
Delivery Time: Within 15 weekdays after receipt total amount
Payment Terms: T/T, Western Union
Supply Ability: 2000pcs per month
Contact Now
Detailed Product Description
Item Np.: HSW35 Frequency: 35kHz
Power: 1000W Horn: ≤10mm
Housing Diameter: 44mm Color: Bule And Silver
Shipping: TNT DHL UPS FEDEX Warranty: 1 Year



Multi-Horn Ultrasonic Spot Welding System for Welding 35kHz Mechanical Arm





Description:



Ultrasonic welding is the clean, fast and reliable method of joining plastics, It is the use of ultrasonic frequency mechanical vibration energy in the work-piece surface to produce the plastic deformation and failure under the pressure surface , realize the welding method.

Ultrasonic welding process is most commonly used to join the thermoplastics, It is used in joining the materials which are not similar and it does not require any bolts, soldering material, nails or the adhesives that are needed to join the materials together.





Specification:



Item No. HSW20 HSW30 HSW35 HSW40 HSW60
Frequency 20kHz 30kHz 35kHz 40kHz 60kHz
Power 1000W 1200W 1000W 500W 300W-500W
Horn ≤12mm ≤10mm ≤10mm ≤10mm ≤10mm
Housing Diameter 44mm 44mm 44mm 44mm 44mm
Weight of Welder 1.0kg 1.0kg 1.0kg 1.0kg 1.0kg





Advantage:



1. Ultrasonic welding can be applied to a diversity of combination of the material welding, It can not applied for semiconductor materials such as high temperature caused by the pollution and the operation, It is easy to weld the heat conductivity and high conductivity materials like gold , silver , copper , aluminum , etc .



2. The consumption power is small , only for the resistance spot welding 5% left and right sides, weld deformation less than 3-5% , solder joint strength and strength the stability by an average of about 15-20% , on the surface of cleanliness requirements is not high.



3. Ultrasonic welding process is widely used in the microelectronics devices and finishing technology, the most successful application is the integrated circuit element of interconnection and it is used in the electronic aerospace electrical packaging plastic industries .



4. Ultrasonic welding process successfully joins many dissimilar-materials combinations, It welds without filler metals or gases, It is fast and easily automated, Because ultrasonic welding does not require the connective bolts or soldering materials to bind two pieces together, it saves on the manufacturing & production costs.



5. Ultrasonic welding process is ideal because it creates the reliable bonds without introducing any impurities or thermal distortion to the components being joined, The ultrasonic weld dries rapidly because there are no adhesives or solvents to dry and there is no need for the materials to cure.



6. Ultrasonic Welding process offers the clean exteriors of welded parts, The potential manpower savings, The absence of drying time in the jig , the gas tight and it has completely stable, possibility of welding in the presence of the foreign bodies such as the powders and the liquids that are incompatible using any other conventional assembly processes.





Application:



Auto parts bumpers, air filters, car audios, foot pads, door panels, clutch forks
Electric products humidifiers, chargers, storage battery, telephones, sockets, flash discs
Medical products leucocyte filters, accurate liquid medicine filters, blood plasma separating cups
Packaging and clothing valve bags, paper cups, dairy food packing cases, bag belts, zippers
Stationery and toys

ink boxes, file folders, name card holders, albums

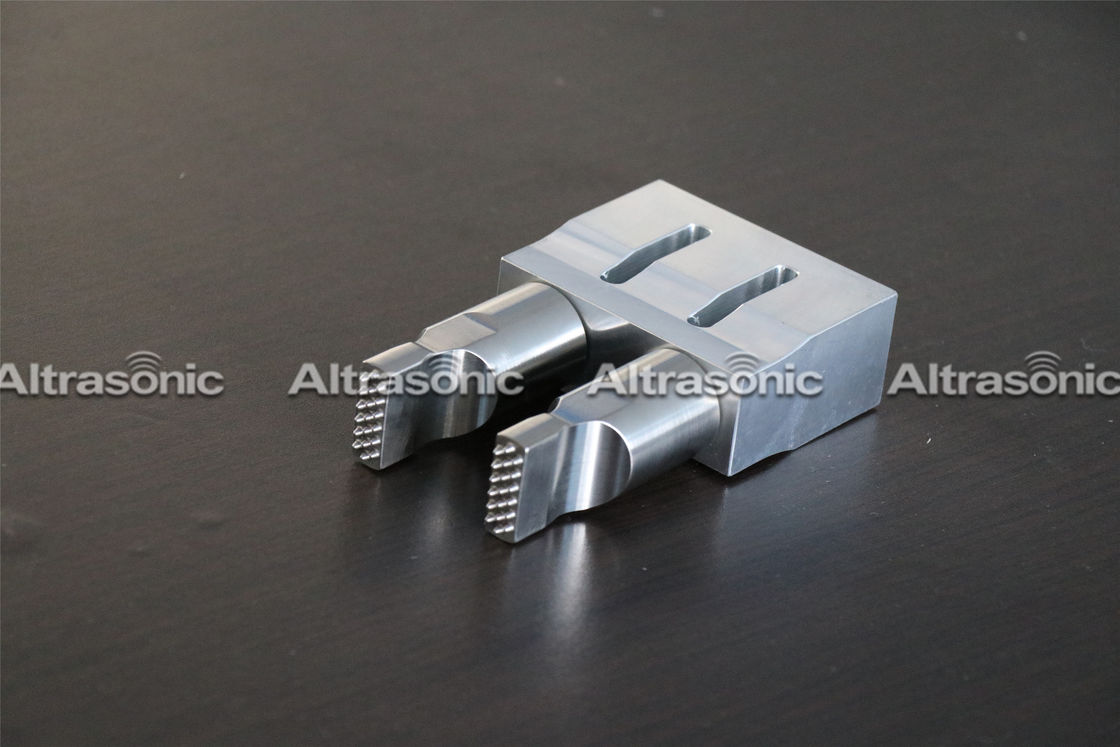

Multi - Horn Ultrasonic Spot Welding Machine For Welding 35kHz Mechanical Arm

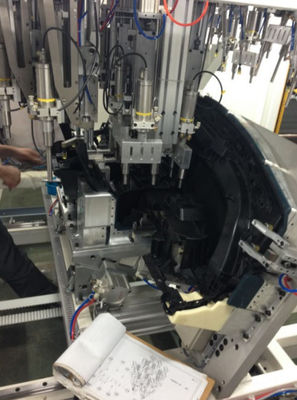

Multi - Horn Ultrasonic Spot Welding Machine For Welding 35kHz Mechanical Arm
