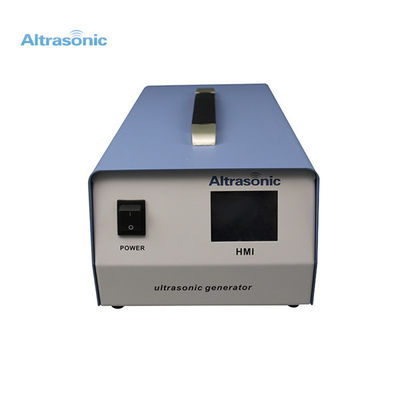

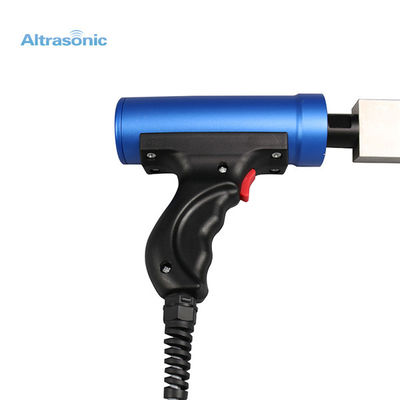

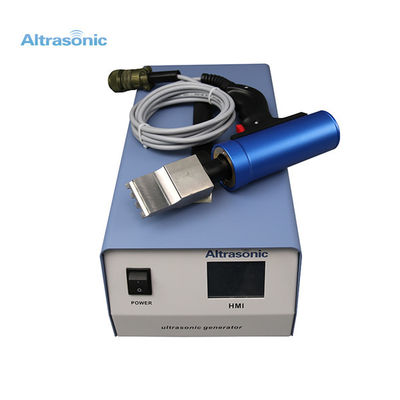

Customized Gun Type 35kHz 1000W Ultrasonic Welding System For HDPE PC PE PP

China Customized Gun Type 35kHz 1000W Ultrasonic Welding System For HDPE PC PE PP supplier
Customized Gun Type 35kHz 1000W Ultrasonic Welding System For HDPE PC PE PP supplier Customized Gun Type 35kHz 1000W Ultrasonic Welding System For HDPE PC PE PP supplier Customized Gun Type 35kHz 1000W Ultrasonic Welding System For HDPE PC PE PP supplier

Large Image :  Customized Gun Type 35kHz 1000W Ultrasonic Welding System For HDPE PC PE PP

Product Details:

Place of Origin: China
Brand Name: ALTRASONIC
Certification: CE
Model Number: HSE35

Payment & Shipping Terms:

Minimum Order Quantity: 1 Unit
Price: Negotiation
Packaging Details: Packed in carton firstly,and then reinforced with wooden case for outer packing
Delivery Time: Within 15 weekdays after receipt total amount
Payment Terms: T/T, Western Union
Supply Ability: 2000pcs per month
Contact Now
Detailed Product Description
Item No.: HSW35 Frequency: 35kHz
Power: 1000W Horn: ≤10mm
Housing Diameter: 44mm Color: Bule And Silver
Warranty: 1 Year Shipping: TNT DHL UPS FEDEX



Customized Gun Type 35kHz 1000W Ultrasonic Welding System for BS HDPE PC PE PPS PP





Description:



The ultrasonic waves vibrate 10's of thousands of times per-second. This oscillation is transferred to a contact surface that is directly in contact with the plastic parts. Since the boundary of the welding area has a large acoustic impedance, it produces high temperatures. Plastic is a pretty poor conductor of heat and can't dissipate the heat before it changes the state of the plastic from solid to liquid. With a bit of pressure applied, this makes the two parts blend together as if they are a single piece of plastic. Once the ultrasonic signal is stopped, the parts become solid again. This is the magic that creates a weld between the two parts that is clean and very strong. The weld will have a strength that is close to that of the raw materials being formed together in an injection molding process.







Specifications:



Item No. HSW20 HSW30 HSW35 HSW40 HSW60
Frequency 20kHz 30kHz 35kHz 40kHz 60kHz
Power 1000W 1200W 1000W 500W 300W-500W
Horn ≤12mm ≤10mm ≤10mm ≤10mm ≤10mm
Housing Diameter 44mm 44mm 44mm 44mm 44mm
Weight of Welder 1.0kg 1.0kg 1.0kg 1.0kg 1.0kg

Advantage:


1. Ultrasonic is the fastest, most repeatable and economical assembly method available to the industry today.

2. With ultrasonic, most thermoplastics can be assembled without heat, mechanical fasteners, or hazardous consumables such as adhesives or solvents.

3. Ultrasonic can join parts - small or large, simple or complex - with lower reject rates than any other method.

4. Using ultrasonic, labor - both as a skill factor and as a time factor - is significantly reduced. And since the equipment can readily be automated, any non-technical operator can be trained in minutes to produce high volume, high integrity assemblies.





Application:



Appliance Fixtures, hardware, and enclosure assembly, welding of components.
Automotive Parts and body components, instrument panels, headlight assemblies, under hood assemblies.
Cosmetic Assembly of compacts and other containers, sealing tubes, packaging.
Electronic/Electrical Component, connector cable and wire harness assemblies, enclosure cases and instrument faces, audio/video cassette and cartridge, switch assemblies.
Food Sealing of pouches, tray containers and fillable fillable tubes; sealing microwavable containers; product packaging.
Hardware Product assembly and blister pack packaging.
Health Care Product containers and accessories.
Instrument Welding and staking case assemblies and face covers.
Medical Sterile package sealing; equipment component assembly; syringes and filters.
Packaging Welding extruded plastic sheet for boxes/containers, package sealing.
Textile Fabric slitting, joining or embossing.
Toy and Game Assembly of game elements and product packaging.





Service:



If you are not sure whether your application is suited for ultrasonic assembly, please rely on us. We are here to help you. Our applications lab is staffed with highly trained ultrasonic specialists whom you can call at any time for advice or information. They will evaluate your applications from parts, prototypes or blueprints, and provide you with prompt and knowledgeable recommendations. This no-cost, no obligation service includes feasibility engineering studies, design recommendations, and material guidance much more.
