|Input:||AC110-240||Power Controller:||Stepping Or Continuous|

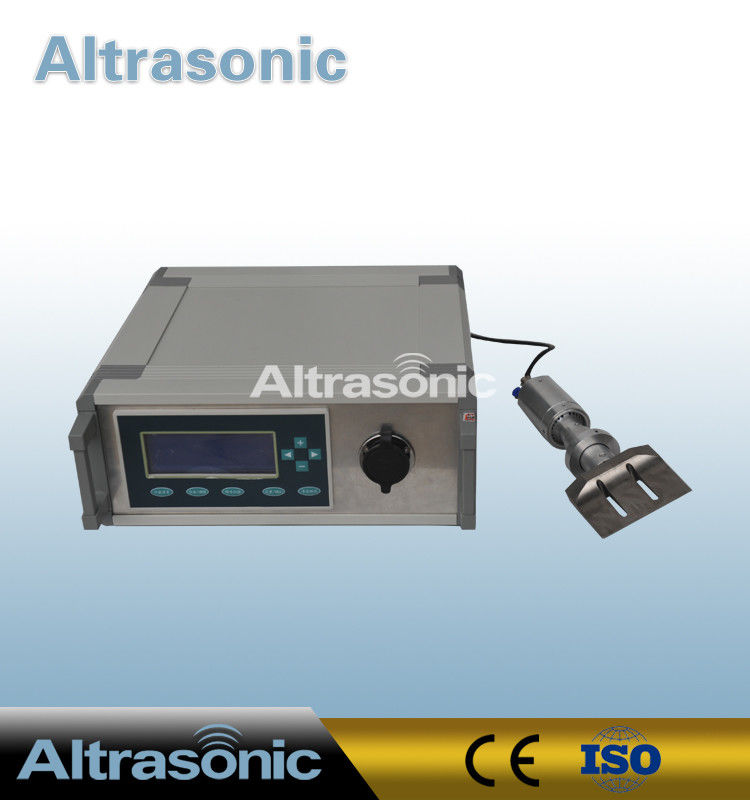

Titanium Blade 40khz Ultrasonic Cutting Equipment
Ultrasonic cutting machine is an ultrasonic device specially used for cutting, which is one of the important categories of ultrasonic applications.
The principle is completely different from traditional cutting. The ultrasonic cutting machine utilizes the energy of the ultrasonic wave to melt the local heating of the material to be cut, thereby achieving the purpose of cutting the material.
The difference between traditional cutting and ultrasonic cutting:
Ultrasonic cutting machine is the use of wave energy for cutting equipment, the main t feature is not to use the traditional edge.
The traditional cutting utilizes a tool with a sharp edge to press the cutting material. The pressure is concentrated at the edge of the blade, the pressure is very large, more than the shear strength of the cutting material , then the material is cut open. As the material is cut by a strong pressure, so the cutting tool edge should be very sharp and the material itself has to bear the relatively large pressure. Therefore the cutting effect for the soft, flexible material is not good, especially more difficult for sticky material.
|Power Controller||stepping or continuous|
|Material Of Cutting Head||aluminum alloy, stainless steel, titanium alloy, alloy steel.|
|Machine Wight||4 kg-16KG|
|Accessories||foot switch, additional blade|
|Cooling Device||compressed air mouth can be installed.|
|Cable Length||2M or customized|
Rubber tire and its related products
Produces a fusion effect for neat cuts, especially in viscous materials
Can be used for many different types of materials
Creates finely finished and structured objects
Emits less heat compared to other industrial cutting methods
Vibration enables various shapes for cutting holes.
