40 Khz Ultrasonic Cutting Machine Replaceable With High Cutting Precision

China 40 Khz Ultrasonic Cutting Machine Replaceable With High Cutting Precision supplier
40 Khz Ultrasonic Cutting Machine Replaceable With High Cutting Precision supplier 40 Khz Ultrasonic Cutting Machine Replaceable With High Cutting Precision supplier 40 Khz Ultrasonic Cutting Machine Replaceable With High Cutting Precision supplier

Large Image :  40 Khz Ultrasonic Cutting Machine Replaceable With High Cutting Precision

Product Details:

Place of Origin: China
Brand Name: Altrasonic
Certification: CE
Model Number: HSQ40B-AB

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: USD$980-$1280 per set
Packaging Details: Inner bubble wrap, then put in a carton box
Delivery Time: 8-10 workdays
Payment Terms: Western Union, T/T
Contact Now
Detailed Product Description



40khz Ultrasonic Cutter Replaceable





Application:



Natural fibers

Synthetic fiber

Thin plastic products(Such as plastic film, mobile phone shell)

All types of paper, base film

Rubber, silicone

Repair of printed circuit board copper foil

ABS,PP,PE ( thickness less than 2mm)

Various types of chemical fabrics







Specification:



Model HSQ40B-AB
Frequency 40KHZ
Output Power 100W

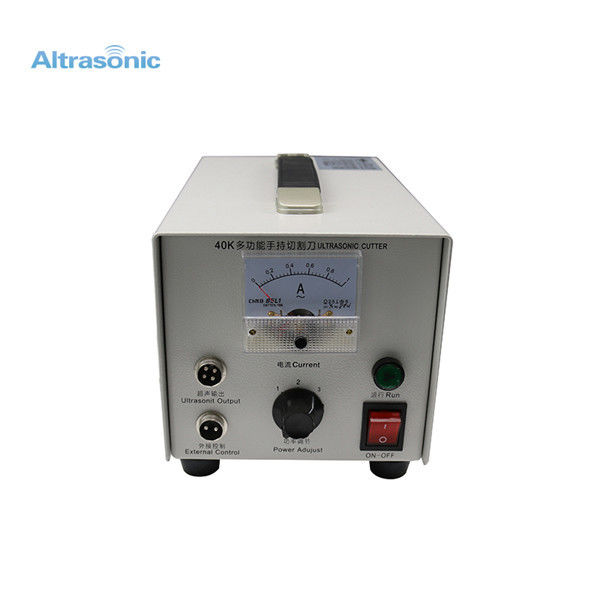

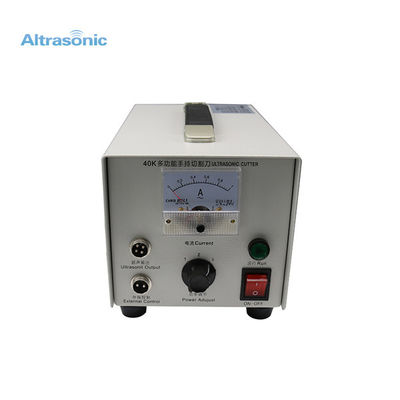

Generator Analog generator, 155 x 265 x 170mm

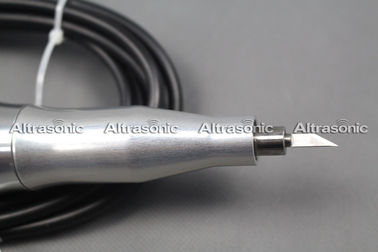

Handle Φ32×170
Size of cutter Blade replaceable
Length of cable 3M
Outer skin Aluminum
Weight 8KG
Voltage 220V / 110V
Accessory Foot switch1pc; Cut blade 25pcs; 1.5mm special hex wrench 1pc;
Screw M3×4L 2pcs
Material of cutter titanium alloy, stainless steel







Why choose Altrasonic:



1. Cost-benefit, we will work out the best program with reasonable price for you after testing. we also have one year warranty for none human damage, in this period factory will responsible for all damages. After warranty, we will offer repair and new spare parts for customer with economical price.

2. Purchase process is very convenient and efficient, we will deal with customer’s case within 24 hour, and it often take 3-4 days to delivery goods from here to your company via international express. Our general lead time is around 7-15days.

3. Strictly quality control, our product will do 3 times aging test and 48 hours working time for stability test before sending out.





FAQ:



1. What is the blade life?

The blade life differs according to material, shape of the work-piece, and processing method. The blade should be changed once every few months when cutting materials with small wear rates, such as rubber. The blade should be changed once every few days when cutting materials with large wear rates, such as materials containing glass fiber.

2. What about waste during processing, such as cutting chips?

Unlike processing using water-jet cutting, ultrasonic cutters do not wet materials and discharge cutting chips and foul water. Unlike processing using laser cutting, ultrasonic cutters do not emit noise and smoke and cause air contamination. Thus, ultrasonic cutting is an environment-friendly processing method.

3. How can I select a model suitable for my work?

When selecting a model, our special staff will propose the mode most suitable for your work based on the characteristics of the work and the thickness of the material to be cut. Combining blade with frequency requires technical skills and experience. Please feel free to contact us. Free test cutting is also provided.
