CE Long Life Time Ultrasonic Homogenizer For Oil And Water Emulsifying

Certification
China Hangzhou Altrasonic Technology Co., Ltd certification
Customer Reviews
The converters corresponding to your INVOICE NO. HS2015021 work very well. We would like to order more

—— Peter

I'm very happy with your good communication skills as well as follow up and good deal. I will definitely inform you my further program for further coo

—— Vinay

We tested it and it worked.  I will let you know about future purchases soon.

—— Alvin

Thank you! It is a pleasure, to work with a company that wants to make it right for the customer :) many times i deal with Chinese companies that do not care about the customer and long term business. I think I made the right decision going with you and Altrasonic !!!

—— Cameron

I'm Online Chat Now

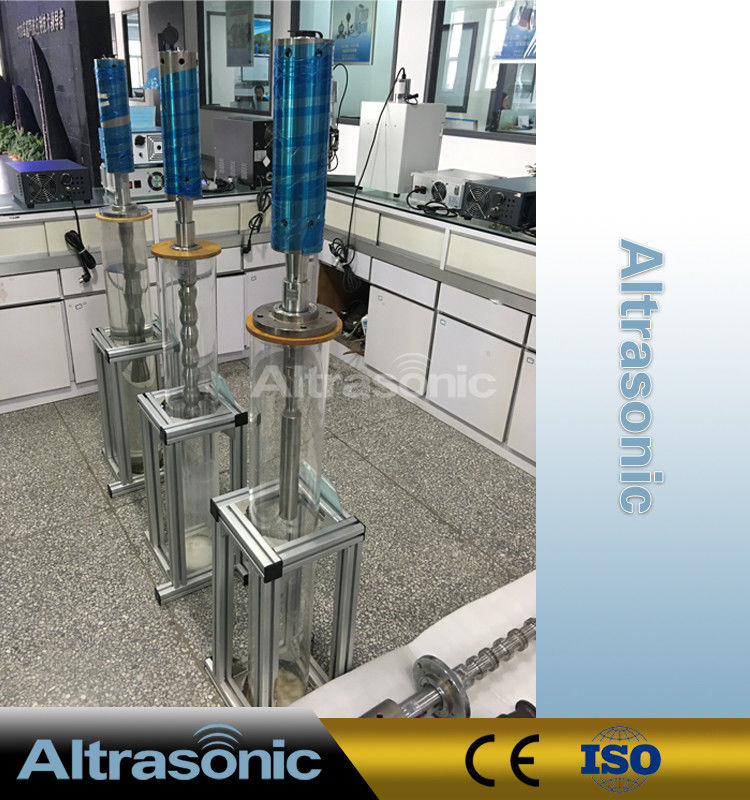

CE Long Life Time Ultrasonic Homogenizer For Oil And Water Emulsifying

CE Long Life Time Ultrasonic Homogenizer For Oil And Water Emulsifying
CE Long Life Time Ultrasonic Homogenizer For Oil And Water Emulsifying CE Long Life Time Ultrasonic Homogenizer For Oil And Water Emulsifying

Large Image :  CE Long Life Time Ultrasonic Homogenizer For Oil And Water Emulsifying

Product Details:
Place of Origin: China
Brand Name: Altrasonic
Certification: CE
Model Number: HSS57B-ZB
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: negotiation
Packaging Details: Packed in carton, and PE form inside
Delivery Time: 10 working days after received your payment
Payment Terms: T/T, Western Union
Supply Ability: 100pcs per month

CE Long Life Time Ultrasonic Homogenizer For Oil And Water Emulsifying

Description
Frequency: 20Khz Power: 1500W
Material: Titanuim Max Capacity: > 15 L/Min
High Light:

ultrasound sonochemistry

,

sonochemistry equipment



20Khz 1500W Ultrasonic Homogenizer For Oil And Water Emulsifying







Minimum Order Quantity:

1pcs

Price:

negotiation

Payment Terms:

T/T

Supply Ability:

100pcs per month

Delivery Time:

10 working days after received your payment

Packaging Details:

Packed in carton, and PE form inside





Specifications:


Model HSS11B-EB HSS17B-ZB HSS57B-ZB HSS59B-ZB HSS61B-ZB
Frequency 40±1 KHz 20±1 KHz 20±1 KHz 20±1 KHz 20±1 KHz
Power 100 W 1000 W 1500 W 2000 W 3000 W
Voltage 220±10% V 220±10% V 220±10% V 220±10% V 220±10% V
Temperature 150 ℃ 150 ℃ 300 ℃ 300 ℃ 300 ℃
Pressure Normal Normal 35 MPa 35 MPa 35 MPa
Intensity of sound >10 W/cm² >10 W/cm² >30 W/cm² >40 W/cm² >60 W/cm²
Max Capacity > 100M L/Min > 5 L/Min > 15 L/Min > 20 L/Min > 30 L/Min
Material Of Tip Head Titanium Alloy Titanium Alloy Titanium Alloy Titanium Alloy Titanium Alloy






Description:


Sonochemistry—the application of ultrasound to chemical reactions and processes—is based on the phenomenon of cavitation: the formation, growth and implosive collapse of bubbles in a liquid.
Cavitation can be produced through different means, including high pressure nozzles, high velocity rotation, or ultrasonic transducers. The input energy is transformed into friction, turbulences, waves and cavitation.
Cavitation bubbles are vacuum bubbles, created by a fast moving surface on one side and an inert liquid on the other. The resulting pressure differences serve to overcome the cohesion and adhesion forces within the liquid. Cavitational collapse produces intense local heating (~5,000 K), high pressures (~1,000 atm), and enormous heating and cooling rates (>109 K/sec and liquid jet streams (~400 km/h).





Applications:


Biodiesel conventionally is produced by the base-catalyzed transesterification of fatty acids from vegetable oils or animal fats with methanol in a batch reactor using heat and mechanical mixing energy as energy inputs. Glycerol is a byproduct of the reaction, and must be separated from the biodiesel product.
The use of ultrasonic processing not only can provide energy for the reaction, but can achieve better mixing and more rapid separation.
Hielscher estimates that costs for ultrasonication in biodiesel processing will vary between €0.002 and

  • Researchers at Iowa State University are exploring the use of ultrasonics to boost ethanol production from corn. (Earlier post.)

  • Advanced Plant Pharmaceuticals, through its merger with World Health Energy, is adopting ultrasonication as its biodiesel process to provide itself with production cost advantages. (Earlier post.)

  • GreenShift Corporation formed General Ultrasonics Corporation, a development stage company that owns patented technologies that use ultrasonic energies to enhance physical and chemical reactions including more efficient steam reformation to produce hydrogen. (Earlier post.)





Competitive Advantage:



Flexible system designs for any length of pipe.

May be adapted to most any diameter pipe or tube.

Will drive most any pipe thickness (e.g.1mm to 30mm) at high power.

Flow through design allows easy adaptation to lab and industrial systems.

Long wave guides options allow for very high temperature applications.

Wide ranging power options offer:

Simplified one-piece tube design without seams or joints allows easy internal cleaning and sterilization.





20Khz 1500W Ultrasonic Homogenizer For Oil And Water Emulsifying
