30 KHZ Ultrasonic Plastic Cutting Knife Fixed On Automatic Production Lines

China 30 KHZ Ultrasonic Plastic Cutting Knife Fixed On Automatic Production Lines supplier

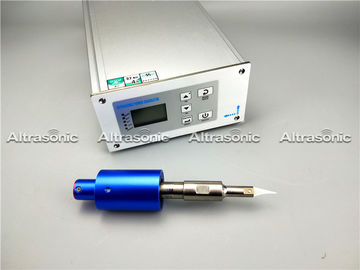

Large Image :  30 KHZ Ultrasonic Plastic Cutting Knife Fixed On Automatic Production Lines

Product Details:

Place of Origin: China
Brand Name: Altrasonic
Certification: CE
Model Number: HSPC30

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: $45-$2800
Packaging Details: wooden case
Delivery Time: 10-15days
Payment Terms: Western Union, MoneyGram, T/T, L/C
Supply Ability: 1000sets per month
Contact Now
Detailed Product Description

30KHZ Ultrasonic Plastic Cutting Knife Fixed on Automatic Production Lines





Ultrasonic cutting is a new technology with enormous potential to replace more traditional cutting processes. Ultrasonic cutting has already being implemented in a wide variety of applications all over the world.

Ultrasonic Cutters are small in size and do not require large installation areas. Special equipment is not required for the installation. Ultrasonic Cutters are small enough to be hand-held for many operations.

Ultrasonic Cutters can also be attached to automated machinery arms. Although they may not be familiar to you, they play an active role in the manufacturing processes of various industrial products which we use daily.

The sharpness of Ultrasonic Cutters differs according to various combinations of oscillator, transducer, and blade. Because of abundant experience, our company prepares combinations suitable for various materials. Since we can select the model most suitable for your cutting work, we ask that you confirm the sharpness of the selected model by test cutting first.

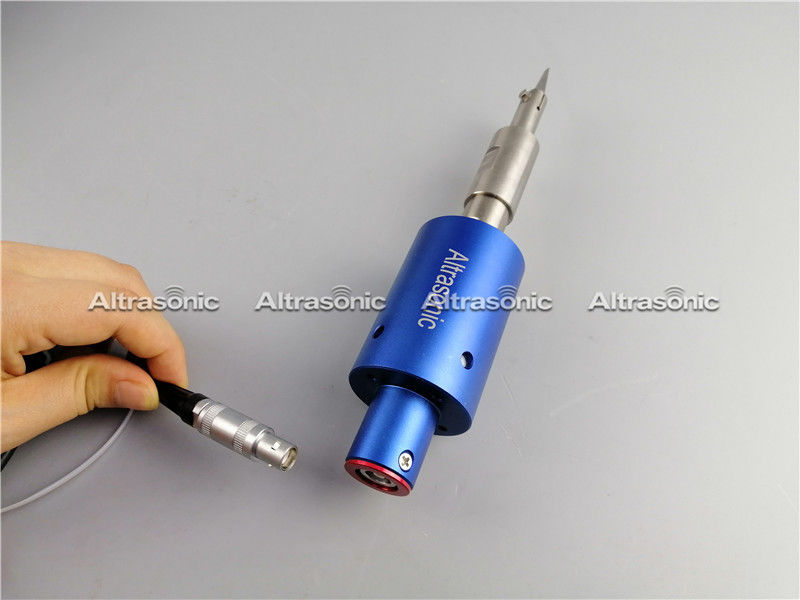

30 KHZ Ultrasonic Plastic Cutting Knife Fixed On Automatic Production Lines

30 KHZ Ultrasonic Plastic Cutting Knife Fixed On Automatic Production Lines



Description:







Specification:



Model HSPC30
Frequency 30KHZ
Output Power 200W
Generator Digital generator, 452 x 180 x 100mm
Handle Φ44×220
Size of cutter Blade replaceable
Length of cable 3M
Outer skin Aluminum
Weight 8KG
Voltage 220V / 110V

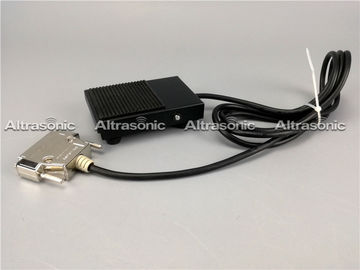

Accessory Foot switch 1pc;
1.5mm special hex wrench 1pc;Screw M3×4L 2pcs
Material of blade titanium alloy, stainless steel



Advantages:



·Continuous or intermittent cutting.

·Cuts are made with a knife-shaped sonotrode or anvil.

·No unravelling.

·Clean cuts.

·Compatible with most thermoplastics.

. Small in size and do not require large installation areas. Special equipment is not required for the installation. Ultrasonic Cutters are small enough to be hand-held for many operations.

Ultrasonic Cutters can also be attached to automated machinery arms.



Applications:



The ultrasonic cutting head cuts virtually all composites (carbon fibres, glass fibres, aramid). A quick and efficient solution for parts such as profiles, stringer, or even complex 3D-parts.

Some of the most common materials cut by ultrasonic methods include:

Rubber

Piping

Print circuit boards

Plastic

Natural and synthetic fibers



FAQ



  • What materials can/cannot be cut by ultrasonic cutters?

Materials that can be cut by ultrasonic cutters are thermoplastic resins, plastics, rubber, cloths, paper, corrugated cardboard, foamed materials, and foods. Sections obtained by ultrasonic cutters are much smoother than those obtained by ordinary cutters. Cutting with less workload can be realized.

  • Can ultrasound be heard?

It is said that the upper limit of frequencies which can be heard by the human ear is approximately 20 kHz. The frequency of Altrasoni’s oscillators is above 25 kHz. Therefore, young people about 20 years old and people with excellent audibility may hear the ultrasound (audibility declines with age). If you are anxious about hearing ultrasound, noise insulation materials can prevent this.

  • What about waste during processing, such as cutting chips?

Unlike processing using water-jet cutting, ultrasonic cutters do not wet materials and discharge cutting chips and foul water. Unlike processing using laser cutting, ultrasonic cutters do not emit noise and smoke and cause air contamination. Thus, ultrasonic cutting is an environment-friendly processing method.
