Big Capacity Ultrasonic Homogenizer For Nano Particle , Oil And Water Dye

China Big Capacity Ultrasonic Homogenizer For Nano Particle , Oil And Water Dye supplier
Big Capacity Ultrasonic Homogenizer For Nano Particle , Oil And Water Dye supplier Big Capacity Ultrasonic Homogenizer For Nano Particle , Oil And Water Dye supplier Big Capacity Ultrasonic Homogenizer For Nano Particle , Oil And Water Dye supplier

Large Image :  Big Capacity Ultrasonic Homogenizer For Nano Particle , Oil And Water Dye

Product Details:

Place of Origin: CHINA
Brand Name: Altrasonic
Certification: CE
Model Number: HSS20-3000

Payment & Shipping Terms:

Minimum Order Quantity: 1 SET
Price: negotiation
Packaging Details: Packed in wooden carton
Delivery Time: 7 days after receiving from the payment
Payment Terms: T/T, Western Union
Supply Ability: 3000 PCS per month
Contact Now
Detailed Product Description
Name: Ultrasonic Sonochemistry Frequency: 20Khz
Power: 3000W Weight: 35Kg

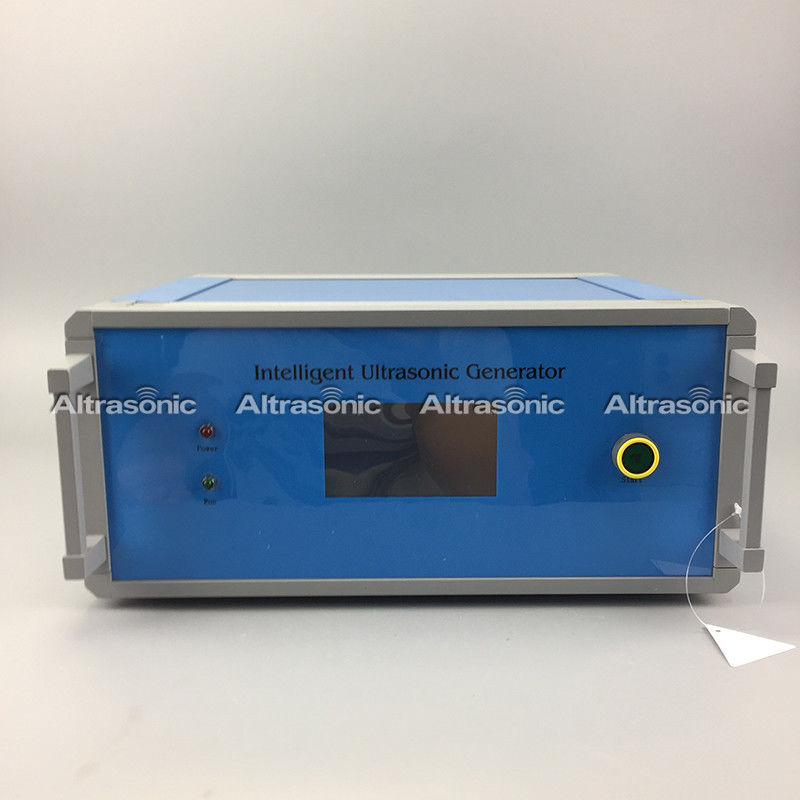

Generator: Digital Mode Control: Remote Control
Application: Dispersing Probe: Different Size And Type Optional
Capacity: More Than 100L

Big Capacity Ultrasonic Homogenizer For Nano Particle , Oil And Water Dye





Altrasonic equipment focused on the r&d of high power ultrasound applications. Altrasonic has absolute

leading core technology, the most stable and mature manufacturing technology, rich experience, can provide direct ultrasonic application scheme demonstrate, structure design, system configuration and related parts production.



Ultrasound is a well-established method for particle size reduction in dispersions and emulsions. Ultrasonic processors are used in the generation of nano-size material slurries, dispersions and emulsions because of the potential in the deagglomeration and the reduction of primaries. These are the mechanical effects of ultrsonic cavitation. Ultrasonic can also be used to influence chemical reactions by the cavitation energy.

As the market for nano-size materials grows, the demand for ultrasonic processes at production level increases.





Specification:



Model HSS20-500 HSS20-1000-L HSS20-1000 HSS20-1500 HSS20-2000 HSS20-3000
Frequency 20Khz 20Khz 20Khz 20Khz 20Khz 20Khz
Power 500 W 1000 W 1000 W 1500W 2000W 3000 W
Voltage 220V 220V 220V 220V 220V 220V
Temperature 150 ℃ 150 ℃ 150 ℃ 300℃ 300℃ 300 ℃
Pressure Normal Normal Normal 35 MPa 35 MPa 35 MPa
Intensity of sound >10 W/cm² >10 W/cm² >10 W/cm² >30 W/cm² >40 W/cm² >60 W/cm²
Max capacity > 500ml/Min > 2 L/Min > 5L/Min > 15L/Min > 20L/Min > 100 L/Min
Material of probe Titanium Alloy Titanium Alloy Titanium Alloy Titanium Alloy Titanium Alloy Titanium Alloy





Introduction:



Ultrasound is a very effective processing method in the generation and application of nano-size materials. In general, ultrasonic cavitation in liquids may cause fast and complete degassing: initiate various chemical reactions by generating free chamical ions (radicals); accelerate chemical reactions by facilitating the mixing of reactant; produce highly concentrated emulsions or uniform dispersions of micron-size or nano-size materials. Ultrasound can be tested in lab and bench-up scale before the results are scaled up to the commercial level.



Advantages:



1. Core parts withTitanium materials.

2. Ultrasonic horn with different size and type for selection

3. Matching with digital generator, auto-tuning, auto search frequency

4. Power adjustable from 1% to 99%

5. Frequency range from 19khz to 21khz

6. Lab and bench-up scale for testing





Innovation:



  1. T caps use replaceable, solve the problem of the tool head cavitation, T caps normal working hours more than 800 hours.
  2. Using the high-power ultrasonic transducer (1500w - 3000w), More stable performance, normal service life more than 10000 hours.
  3. Use of the digitally controlled power, to ensure that all the time in the best condition.
  4. Dumbbell-type tool head design, greatly improving the ultrasonic radiation power per unit area.
  5. The integrated piping made of stainless steel #316.
  6. Overall liquid flow-controllable
  7. Use network-based CAN-bus technology, all working parameters can have room remote control.



Applications:



  • Ultrasonic mixing
  • Ultrasonic dispersing and deagglomeration
  • Ultrasonic Emulsifying
  • Ultrasonic Sonochemistry
  • ......



20Khz 3000Watt Ultrasonic Homogenizer For Nano Particle, Oil And Water,Dye



Big Capacity Ultrasonic Homogenizer For Nano Particle , Oil And Water Dye



Big Capacity Ultrasonic Homogenizer For Nano Particle , Oil And Water Dye



Big Capacity Ultrasonic Homogenizer For Nano Particle , Oil And Water Dye
