Digital Ultrasonic Cutting Machine / Ultrasonic Cutter For Plastic Sheets

China Digital Ultrasonic Cutting Machine / Ultrasonic Cutter For Plastic Sheets supplier
Digital Ultrasonic Cutting Machine / Ultrasonic Cutter For Plastic Sheets supplier Digital Ultrasonic Cutting Machine / Ultrasonic Cutter For Plastic Sheets supplier Digital Ultrasonic Cutting Machine / Ultrasonic Cutter For Plastic Sheets supplier

Large Image :  Digital Ultrasonic Cutting Machine / Ultrasonic Cutter For Plastic Sheets

Product Details:

Place of Origin: CHINA
Brand Name: Altrasonic
Certification: CE
Model Number: HSPC30

Payment & Shipping Terms:

Minimum Order Quantity: 1 Unit
Price: Negotiation
Packaging Details: Carton packing
Delivery Time: 7 workdays afer receiving the payment
Payment Terms: T/T, Western Union
Supply Ability: 1000 pieces per month
Contact Now
Detailed Product Description
Frequency: 30Khz Power: 200W
Blade: Replaceable Material Of The Blade: Titanium
Application: Cutting, Deburring Of Molded Parts Generator: Digital

Digital Ultrasonic Cutting Machine for Plastic Sheets





Description:



Ultrasonic cutting principle is through the ultrasonic generator to 50 / 60Hz current into 20,30 or 40kHz power. The converted high frequency electric energy is again converted into mechanical vibrations at the same frequency by the transducer, and then the mechanical vibration is transmitted to the cutter by means of a set of amplitude modulator devices which can change the amplitude. The cutting tool transmits the received vibration energy to the cutting surface of the workpiece to be cut in which the vibration energy is cut by means of activating the molecular energy of the material to be cut and opening the molecular chain.



Ultrasonic cutting knife maximum output power of 300W, for cutting difficult to cut the material, you can use 1mm thick wear-resistant carbide blade, and the user can replace the blade, increase the life of the cutting tool less cost. Ultrasonic cutting is the use of ultrasonic energy, will be cutting the material of local heating melting, to achieve the purpose of cutting materials, without sharp edge.

This section of the cutting knife with a 1mm thick alloy knife head, sharp head so that the cutting contact surface becomes smaller, reducing the heat of the head, sharp blade with ultrasonic cutting effect is more ideal.





Specification:



Model HSPC30
Frequency 30KHZ
Output Power 200W

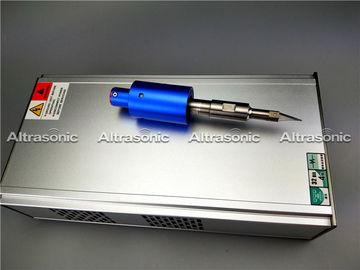

Generator Digital generator, 452 x 180 x 100mm
Handle Φ44×220

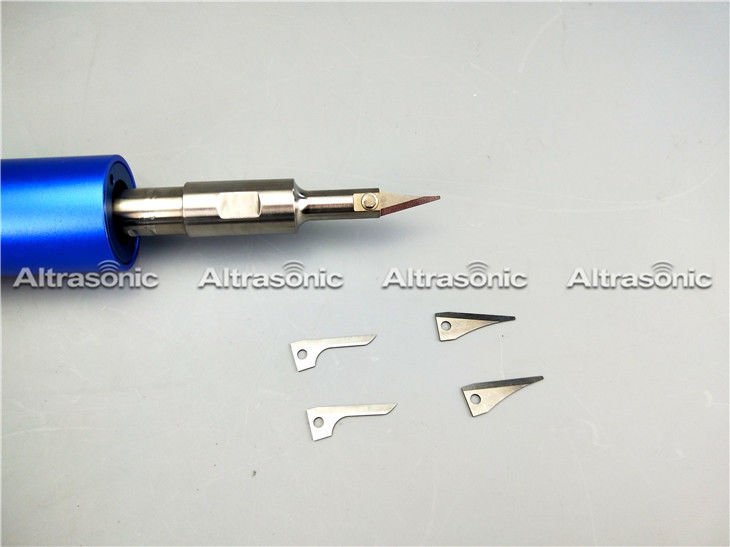

Size of cutter Blade replaceable
Length of cable 3M
Outer skin Aluminum
Weight 8KG
Voltage 220V / 110V

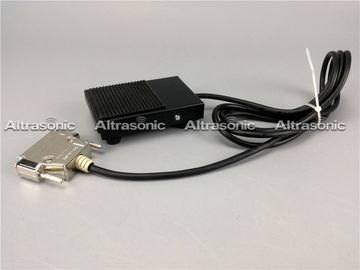

Accessory Foot switch 1pc;Cut blade 2pcs;
1.5mm special hex wrench 1pc;Screw M3×4L 2pcs
Material of blade titanium alloy, stainless steel







30K ultrasonic multi-function handheld cutter applies to:

  • Natural fibers
  • Synthetic fiber
  • Thin plastic products(Such as plastic film, cell phone case)
  • All types of paper, bottom film
  • Rubber, silicone
  • Repair of printed circuit board copper foil
  • ABS,PP,PE … other organic plastic sheet less than 2mm
  • Various types of synthetic fabrics
  • 30K ultrasonic cutting knife can be used for hand-held cutting and automatic mechanical clamping.







Advantages of Ultrasonic Cutting Materials



1. Ultrasonic vibration dramatically reduces resistance during cutting, realizing the best sharpness.

2. Cutting surface finish is good, good bonding performance.

3. It is possible to cut and deburr the hard material and the thick material by the high power specification than before.

4. Fast, high efficiency, no pollution.

5. Even with high power, due to its compact unit structure, it is easy to install in automatic machines and robots.

6. Adopt replacement type knife to reduce running cost







30khz Ultarsonic Cutting Equipement for Metal and Plastic Sheets Deburring

Digital Ultrasonic Cutting Machine / Ultrasonic Cutter For Plastic Sheets

Digital Ultrasonic Cutting Machine / Ultrasonic Cutter For Plastic Sheets
