Precise 10~200Khz Ultrasonic Amplitude Measuring Instrument For Testing

China Precise 10~200Khz Ultrasonic Amplitude Measuring Instrument For Testing supplier
Precise 10~200Khz Ultrasonic Amplitude Measuring Instrument For Testing supplier Precise 10~200Khz Ultrasonic Amplitude Measuring Instrument For Testing supplier Precise 10~200Khz Ultrasonic Amplitude Measuring Instrument For Testing supplier

Large Image :  Precise 10~200Khz Ultrasonic Amplitude Measuring Instrument For Testing

Product Details:

Place of Origin: China
Brand Name: Altrasonic
Certification: CE
Model Number: HS09018

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: Packed in carton,PE foam inside
Delivery Time: Within 7 working days
Payment Terms: T/T, Western Union
Supply Ability: 200 sets per month
Contact Now
Detailed Product Description
Precision: 2.5% Sensitivity: 1 μm
Measuring Range: 10 KHz – 200 KHz Test Direction: Up Or Down

Precise 10~200Khz Ultrasonic Amplitude Measuring Instrument for Testing Ultrasonic Equipments





Description:



It is well known that the amplitude (displacement) of ultrasonic vibration is one of the key indicators of ultrasonic equipment. The amplitude of the ultrasonic vibration directly represents the energy of the ultrasonic output, and also relates to the strength of the relevant material and the service life of the whole machine.





Characteristic:



1.Digital and analog display

2.Absolute and relative measurement

3. Numerical preset actual position

4.Large display with all round

5.High-capacity volt lithium battery(3V)





Advantages:



1.Any position can be reset

2.Any position can be metric and imperial conversion

3.Can change the direction of the count

4.Automatic and manual shutdown

5.Relative and absolute surveying users can design any position as the starting position

6.Data output wires by selecting the directly transmitted to computer for data processing

7.Analog pointer can show trends





Specifications:



Precision 2.5%
Sensitivity 1 μm
Measuring Range More than 3 μm
Frequency Range 10 KHz – 200 KHz
Supply Power Built-in power supply (DC 3V)
Type of Indicator Digital
Test direction

Up or down





Applications:


Ultrasonic Amplitude Measuring Instrument is used to measure the amplitude of ultrasonic equipment.

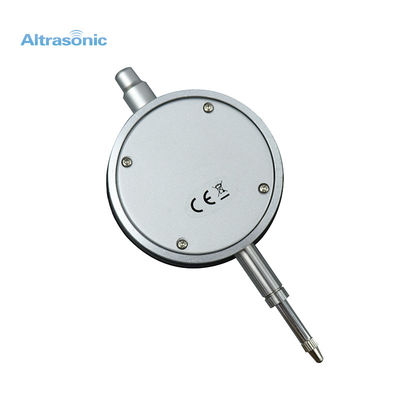

Precise 10~200Khz Ultrasonic Amplitude Measuring Instrument For Testing

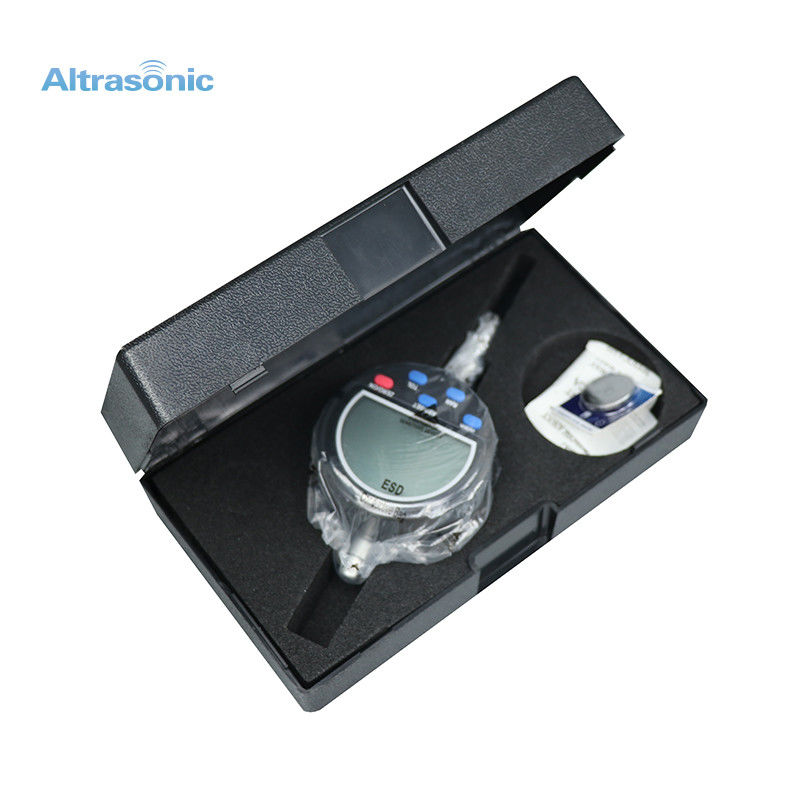

Precise 10~200Khz Ultrasonic Amplitude Measuring Instrument For Testing
