2600W Ultrasonic Piezoelectric Transducer , High Power Piezo Transducer

China 2600W Ultrasonic Piezoelectric Transducer , High Power Piezo Transducer supplier

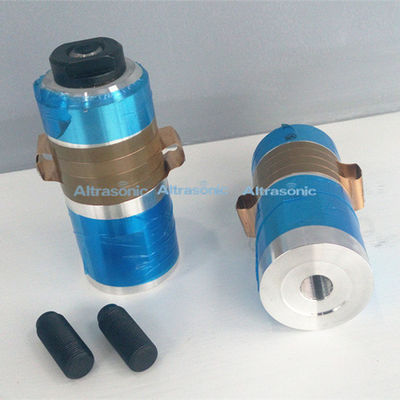

Large Image :  2600W Ultrasonic Piezoelectric Transducer , High Power Piezo Transducer

Product Details:

Place of Origin: China
Brand Name: Altrasonic
Certification: CE
Model Number: HS-7015-4Z

Payment & Shipping Terms:

Minimum Order Quantity: 1 unit
Price: negotiation
Packaging Details: Packed in carton
Delivery Time: 3 working days after received your payment
Payment Terms: T/T, Western Union
Supply Ability: 10,000 units per month
Contact Now
Detailed Product Description



15 kHz 2600W Ultrasonic Piezoelectric Transducer





Product Description

The transducer converts high-frequency electrical energy into high-frequency mechanical vibrations. And it contains several piezoelectric ceramic discs sandwiched under pressure between two metal blocks. Between each disc is a thin metal plate, which forms the electrode. When a sinusoidal electrical signal is fed to the transducer via the electrodes, the discs expand and contract, producing axial vibrations.

Specifications

Model HS-7015-4Z
Frequency 15 khz
Output power 2600 watt
Joint bolt M20*1.5
Ceramic disc Diameter 70 mm
Quantity of Ceramic discs 4 pcs
Capacitance 12.5~14nf
Amplitude 10 um
Application welding machine



Applied Range

Ultrasonic transducer,ultrasonic generator and ultrasonic horn constitute a whole ultrasonic system,which can be widely used to do welding in various kinds of industries.

Applied Industries:
automobile industry, electric industry, medical industry, household appliance industry, non woven fabric clothing, packing, office supplies, toys, etc.

Applied Machines: Ultrasonic cleaner,Beauty set,welding machines,cutting machines,Medical scalpel and tartar clear.

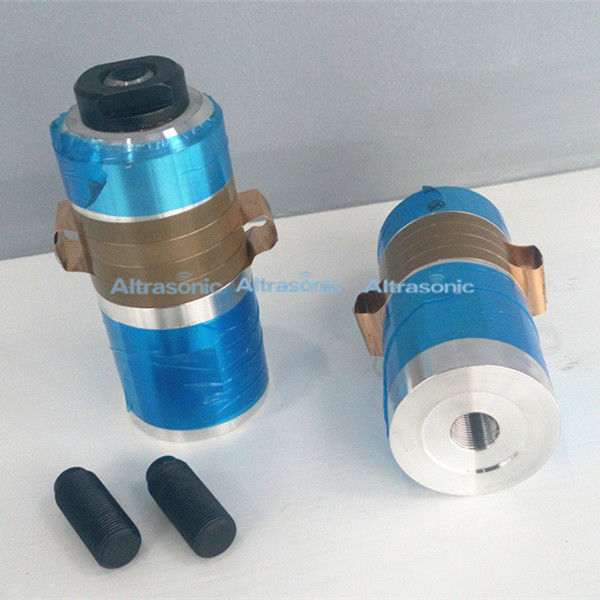

2600W Ultrasonic Piezoelectric Transducer , High Power Piezo Transducer

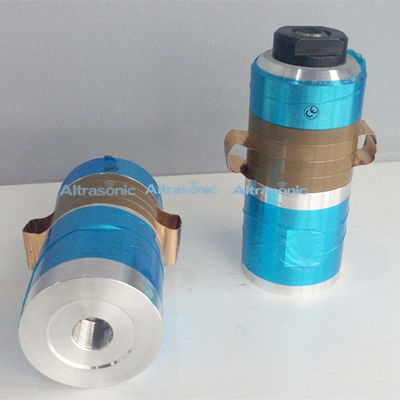

2600W Ultrasonic Piezoelectric Transducer , High Power Piezo Transducer
