50mm Diameter Piezoelectric Ceramics Ultrasonic Transducer 20khz With M12 Connected Screw

50mm Diameter Piezoelectric Ceramics Ultrasonic Transducer 20khz With M12 Connected Screw
50mm Diameter Piezoelectric Ceramics Ultrasonic Transducer 20khz With M12 Connected Screw 50mm Diameter Piezoelectric Ceramics Ultrasonic Transducer 20khz With M12 Connected Screw 50mm Diameter Piezoelectric Ceramics Ultrasonic Transducer 20khz With M12 Connected Screw

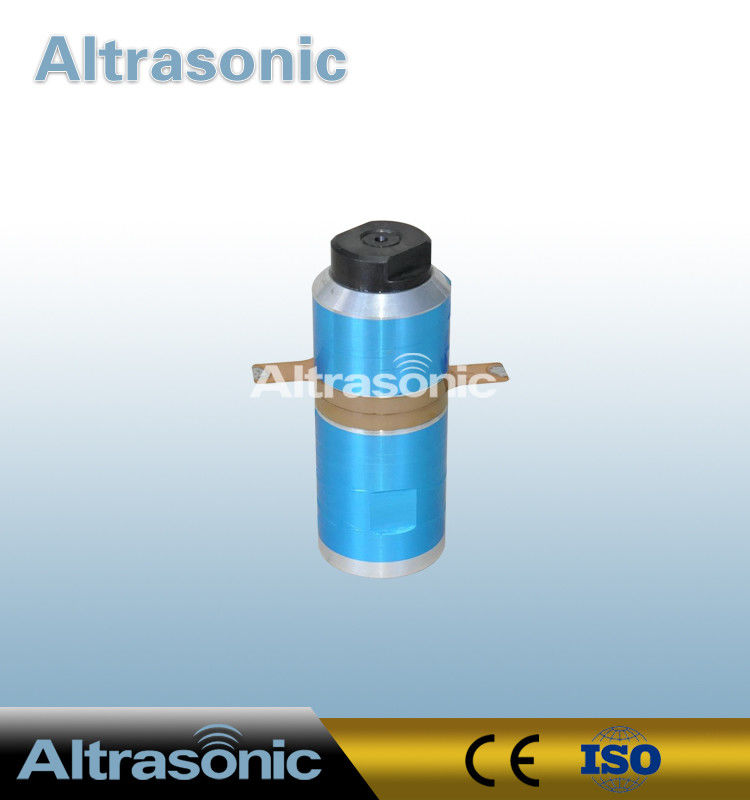

Large Image :  50mm Diameter Piezoelectric Ceramics Ultrasonic Transducer 20khz With M12 Connected Screw

Product Details:
Place of Origin: China
Brand Name: Altrasonic
Certification: CE
Model Number: HS-5020-2Z
Payment & Shipping Terms:
Minimum Order Quantity: 1PCS
Price: Negotiable
Packaging Details: Packed in carton
Payment Terms: T/T, Western Union
Supply Ability: 5000 pieces/month

50mm Diameter Piezoelectric Ceramics Ultrasonic Transducer 20khz With M12 Connected Screw

Description
Model Number: HS-5020-2Z Frequency: 20khz
Power: 800w Ceramic Diameter: 50mm
Qty Of Ceramic: 2 Max Amplitude: 10um
High Light:

high frequency ultrasonic transducer

,

portable transducer

20Khz Ultrasonic Transducer with 50mm Diameter Piezoelectric Ceramics with M12 Connected Screw



Product Details



Place of Origin: China
Brand Name: Altrasonic
Certification: CE
Model Number: HS-5020-2Z





Detailed Product Description



Product Name Ultrasonic Transducer Joint Bolt M18*1.5
Diameter Ceramic 50mm Capacitance 6~9nf
Type NTY Type Application Welding



What is Ultrasonic Welding ?



Ultrasonic welding is an industrial technique whereby high-frequency ultrasonic acoustic vibrations are locally applied to workpieces being held together under pressure to create a solid-state weld. It is commonly used for plastics, and especially for joining dissimilar materials. In ultrasonic welding, there are no connective bolts, nails, soldering materials, or adhesives necessary to bind the materials together.





NTK Type Ultrasonic Transducer

Main features:


Firstly:Mechanical quality, high efficiency, high in the resonant frequency factor some work can gain the highest electro-acoustic conversion efficiency.
Second, amplitude big: via computer optimization design of structure, vibration amplitude ratio is high, front cover.
Three, large power: in prestressed screw, under the action of piezoelectric ceramic energy get maximum play.
Four, heat-resistant good: resonant impedance small, discusses the small, use temperature range. High reliability life long.



Application



Transducer For Ultrasonic Welder, in electronics, a device that converts electric energy into some other form of energy, especially the application of mechanical energy in industry is more and more significant.

We mainly supply two kinds of Ultrasonic transducers: NTK type and Branson type. Widely used in ultrasonic welding, ultrasonic cutting, ultrasonic sewing machine,ultrasonic sonochemistry, ultrasonic wire stripping machine,ultrasonic nebulizer,Ultrasonic riveting machine.



Competitive Advantage



1. Stable parameters

2. Easy matching with ultrasonic power supply

3. Superior raw materials

4. Accept OEM cooperation



20Khz Ultrasonic Transducer with 50mm Diameter Piezoelectric Ceramics with M12 Connected Screw

50mm Diameter Piezoelectric Ceramics Ultrasonic Transducer 20khz With M12 Connected Screw 0

50mm Diameter Piezoelectric Ceramics Ultrasonic Transducer 20khz With M12 Connected Screw 1
