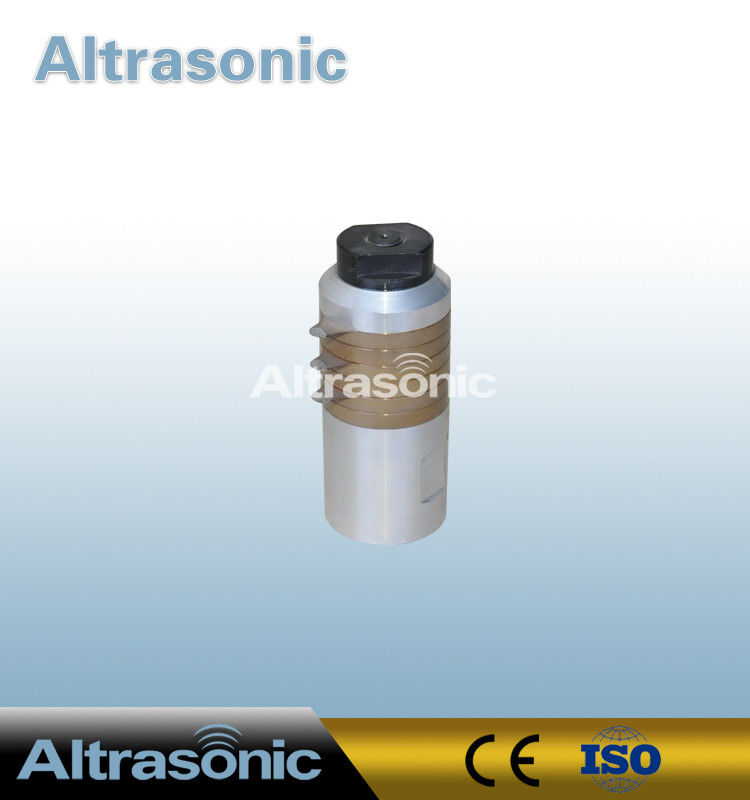

20kHz Ultrasonic Piezoelectric Transducer For Plastic Welding Machine

20kHz Ultrasonic Piezoelectric Transducer For Plastic Welding Machine
20kHz Ultrasonic Piezoelectric Transducer For Plastic Welding Machine 20kHz Ultrasonic Piezoelectric Transducer For Plastic Welding Machine 20kHz Ultrasonic Piezoelectric Transducer For Plastic Welding Machine

Large Image :  20kHz Ultrasonic Piezoelectric Transducer For Plastic Welding Machine

Product Details:
Place of Origin: China
Brand Name: Altrasonic
Certification: CE
Model Number: HS-5020-6Z
Payment & Shipping Terms:
Minimum Order Quantity: 1PCS
Price: Negotiable
Packaging Details: Packed in carton firstly, and then reinforced with wooden case for outer packing
Payment Terms: T/T, Western Union
Supply Ability: 5000 pieces /month

20kHz Ultrasonic Piezoelectric Transducer For Plastic Welding Machine

Description
Model Number: HS-5020-6Z Frequency: 20khz
Power: 2000w Ceramic Diameter: 50 Mm
Capacitance: 18-25nf Amplitude: 10 Um
Ceramic Disc: 6 Pcs Connect Screw: M18*1.5
High Light:

high frequency ultrasonic transducer

,

portable transducer



20kHz Ultrasonic Piezoelectric Transducer For Plastic Welding Machine





Product Details:



Place of Origin: China
Brand Name: Altrasonic
Certification: CE
Model Number: HS-5020-6Z



Payment & Shipping Terms:



Minimum Order Quantity: 1 unit
Price: negotiation
Packaging Details: Packed in carton firstly,and then reinforced with wooden case for outer packing
Delivery Time: 3 working days after received your payment
Payment Terms: T/T or western Union
Supply Ability: 10,000 units per month



Detailed Product Description:



Product Name: Ultrasonic Welding Transducer Frequency: 20 Khz
Ceramic Diameter: 50 Mm Capacitance: 18-25nf
Power: 2000 Watt Application: Welding Machine
Amplitude: 10 Um Ceramic Disc: 6 Pcs
Material Of Booster: Titanium, Aluminum, Steel Materials Optional Protective Housing: Aluminum And Stainless Steel Optional
Connect Screw: M18*1.5



Principle:



1, The main ultrasonic unit composed of a converter (piezoelectric transducer),booster and a sonotrode (horn). All three elements of the stack are specifically tuned to resonate at the same exact ultrasonic frequency( typically 15,20,30,35 or 40KHz)

• Converter/transducer: converters the electrical signal into a mechanical vibration

• Booster: modifies the amplitude of the vibration. It is also used in standard systems to clamp the stack in the press.

• Sonotrode/horn: applies the mechanical vibration to the parts to be welded.

2, ultrasonic generator(power supply) delivering a high power AC signal with frequency matching the resonance frequency of the stack.



Features:



1.Adopt the imported chips

2.High output power

3.High quality

4.Already export to USA, Europe, Asia ,Middle East etc country

5.15KHz-70KHz,100w-6000w supplied



Application :



The applications of ultrasound are extensive and are found in many industries including electrical and computer,automotive and aerospace, medical and packaging. Whether two items can be ultrasonically welded is determined by their thickness. If they are too thick ,this process will not join them. This is the main obstacle in the welding of metals. However, wires,microcircuit connections,sheet metal,foils,ribbons and meshes are often joined using ultrasonic welding. Ultrasonic welding is a very popular technique for bonding thermoplastics. It is fast and easily automated with weld times often below one second and there is no ventilation system required to remove heat or exhaust.



Competitive Advantage:



1. Stable parameters

2. Easy matching with ultrasonic power supply

3. Superior raw materials

4. Accept OEM cooperation

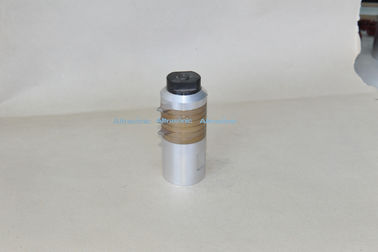

20kHz Ultrasonic Piezoelectric Transducer For Plastic Welding Machine 0

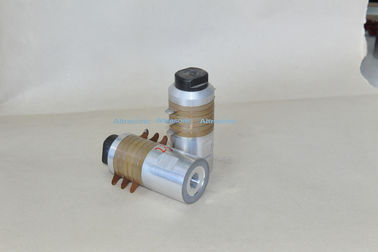

20kHz Ultrasonic Piezoelectric Transducer For Plastic Welding Machine 1
