High Precise 15K 2600W Ultrasonic Welding Transducer , Ultrasonic Piezo Transducer

China High Precise 15K 2600W Ultrasonic Welding Transducer , Ultrasonic Piezo Transducer supplier

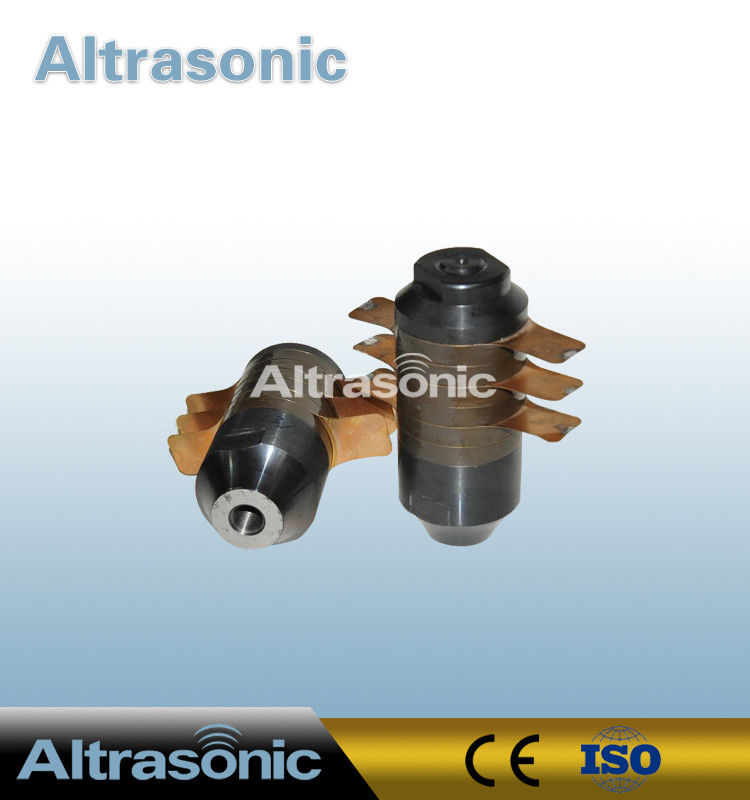

Large Image :  High Precise 15K 2600W Ultrasonic Welding Transducer , Ultrasonic Piezo Transducer

Product Details:

Place of Origin: china
Brand Name: Altrasonic
Model Number: HS-6015-6Z

Payment & Shipping Terms:

Minimum Order Quantity: 1
Packaging Details: Packed in carton,PE foam inside
Delivery Time: 8 working days after received your payment
Payment Terms: T/T, Western Union
Supply Ability: 5000pieces/month
Contact Now
Detailed Product Description
Model Number: HS-6015-6Z Certification: CE
Frequency: 15khz Input Power: 2600W
Max Amplitude: 16um Qty Of Ceramic: 6



15K 2600W High Precise Ultrasonic Welding Transducer





Specifications:



Model HS-6015-6Z
Frequency 15K
Output power 2600W
Joint bolt M20*1.5
Ceramic disc Diameter 60mm
Quantity of Ceramic discs 6pcs
Capacitance 14~21nf
Amplitude 16um
Application Welding



Description:



The transducer converts high-frequency electrical energy into high-frequency mechanical vibrations. And it contains several piezoelectric ceramic discs sandwiched under pressure between two metal blocks.The 15K 2600W Ultrasonic Welding Transducer have feature as follow:good heat resisitance, large range of working temperature, fastened by bolt.



Application:



1.Automotive: engine, compartment

2.Medical: membranes, adaptors, connectors

3.Automation: industrial, automation, multihead components



Competitive Advantages:



1.Piezoelectric element offer a high speed of vibration.

2.Bolt-on mounting gives the fast, easy installation and high reliability.

3.Low resonance impedance and heat productivity.



FAQ:



Q: What is the relationship between ultrasonic horn length and wavelength?

A: Ultrasonic horn length can be distinguished by frequency. Different wavelengths of the same frequency will have different lengths.







15K 2600W High Precise Ultrasonic Welding Transducer
