High Power Piezo Electric Ultrasonic Welding Transducer With Heat Resistant 4 Pcs

China High Power Piezo Electric Ultrasonic Welding Transducer With Heat Resistant 4 Pcs supplier
High Power Piezo Electric Ultrasonic Welding Transducer With Heat Resistant 4 Pcs supplier High Power Piezo Electric Ultrasonic Welding Transducer With Heat Resistant 4 Pcs supplier High Power Piezo Electric Ultrasonic Welding Transducer With Heat Resistant 4 Pcs supplier High Power Piezo Electric Ultrasonic Welding Transducer With Heat Resistant 4 Pcs supplier

Large Image :  High Power Piezo Electric Ultrasonic Welding Transducer With Heat Resistant 4 Pcs

Product Details:

Place of Origin: china
Brand Name: Altrasonic
Model Number: HS-6015-4Z

Payment & Shipping Terms:

Minimum Order Quantity: 1
Packaging Details: Packed in carton,PE foam inside
Delivery Time: 8 working days after received your payment
Payment Terms: T/T, Western Union
Supply Ability: 5000pieces/month
Contact Now
Detailed Product Description
Model Number: HS-6015-4Z Certification: CE
Frequency: 15khz Input Power: 2200W
Max Amplitude: 16um Qty Of Ceramic: 4

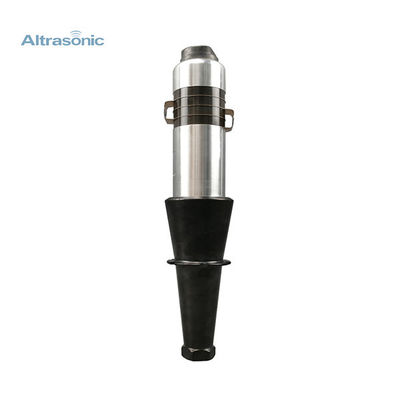

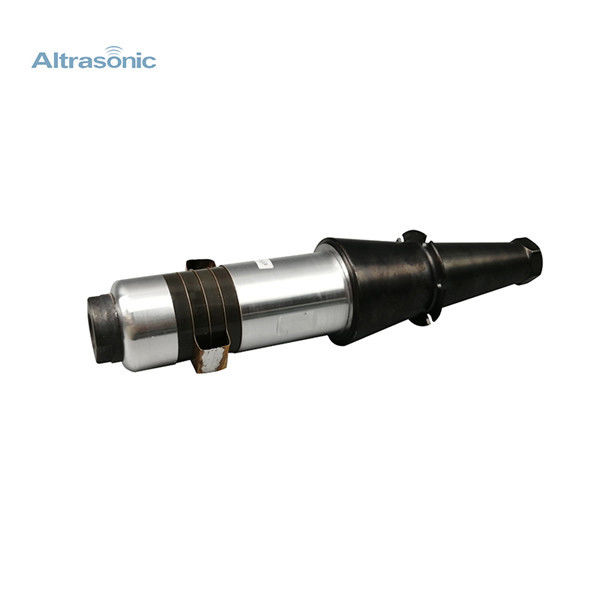

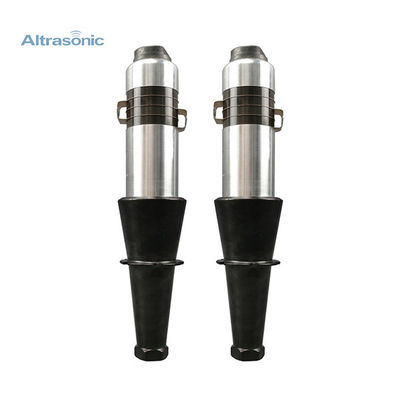

15khz 2600w High Power Piezo Electric Ultrasonic Transducer with Heat Resistant 4pcs



Description



The transducer converts high-frequency electrical energy into high-frequency mechanical vibrations. And it contains several piezoelectric ceramic discs sandwiched under pressure between two metal blocks. Between each disc is a thin metal plate, which forms the electrode. When a sinusoidal electrical signal is fed to the transducer via the electrodes, the discs expand and contract, producing axial vibrations.


High Power Piezo Electric Ultrasonic Welding Transducer With Heat Resistant 4 Pcs



Detailed Product Description



Product Name Ultrasonic Transducer Joint Bolt M20*1.5 or M16*1
Diameter Ceramic 60mm Capacitance 8~13nf
Type NTY Type Application Welding



Main Features



1. High mechanical quality

2. Piezoelectric element offer a high speed of vibration.

3. Having steady output amplitude even the load markedly changed.
4. Extended using temperature, ensuring good amplitude linearity

5. Bolt-on mounting gives the fast, easy installation and high reliability.

6.easy for assembling

7. good heat resistance

8. large range of working temperature

9.low resonance impedance and heat productivity

10.good construction

11.fastened by bolt



Competitive Advantage



1. Imported ceramic discs and superior aluminum raw materials

2. Once assembled, the transducers are aged before testing and final assembly. The properties of piezoelectric materials can change with time and pressure, so a bit of time on the shelf prior to testing will identify nonconforming material.

3. One by one testing to ensure that each transducer performance are excellent.

   4. In good heat resistance, can be used in a wide range of temperature with long life and high reliability.



Specification Of Ultrasonic Transducer



The columnar type NTK TYPE (stabilized power and high reliablity widely application)
Item No. Connect screw (Size) Ceramic diameter (mm) Quantity of Ceramic (pc) Resonance frequency (khz) Resistance (Ω) Capacitance Input power (W) Max. Amplitude (um)
            Yellow Grey Black
7015-4Z M20 X 1.5 70 4 15 15 12500-14000 / 17000-19000 2600 10
6015-4Z M20 X 1.5 or M16 X 1 60 4 15 15 8000-10000 10000-12000 12500-13500 2200 10
6015-6Z M20 X 1.5 60 6 15 15 14000-16000 / 19500-21000 2600 10
5015-4Z M18 X 1.5 50 4 15 15 12000-13000 13000-14300 15000-17000 1500 8
4015-4Z M16 X 1 40 4 15 15 10000-11000 10500-11500   700 8
5520-4Z M18 X 1 55 4 20 15 10000-11000 10500-11500 14300-20000 2000 8
5020-6Z M18 X 1.5 50 6 20 15 18500-20000 / 22500-25000 2000 8
5020-4Z M18 X 1.5 50 4 20 15 11000-13000 13000-15000 15000-17000 1500 8
5020-2Z M18 X 1.5 50 2 20 20 6000-6500 6500-7000 8000-9000 800 6
4020-4Z 1/2-20UNF 40 4 20 15 9000-10000 9500-11000 / 900 6
4020-2Z 1/2-20UNF 40 2 20 25 / 4800-5500 / 500 5
5025-2Z M12 X 1 50 2 25 25 5000-5600 / 7000-8000 500 4
3828-2Z 1/2-20UNF 38 2 28 30 3800-4300 / / 500 3
3828-4Z 1/2-20UNF 38 4 28 30 7600-8500 / 10500-12000 800 4
3028-2Z 3/8-24UNF 30 2 28 30 2700-3100 3400-3800 / 400 3
2528-4Z M8 X 1 25 4 28 30 3900-4300 / / 400 4
2528-2Z M8 X 1 or 3/8-24UNF 25 2 28 35 1950-2200 2200-2500 / 300 3
3030-4Z M10 30 4 30 30 / 6200-6900 / 700 4
3035-2Z 3/8-24UNF 30 2 35 40 2700-3100 / / 500 2
3035-4Z M10 X 1 30 4 35 30 5000-6200 / / 800 3
2535-2Z M8 X 1 25 2 35 40 1900-2200 / / 400 2
2540-2Z 3/8-24UNF 25 2 40 40 / 2000-2300 / 500 2
3040-4Z M10 30 4 40 30 5500-6200 / / 1000 2
3050-4Z M8 30 4 50 30 5500-6200 / / 600 2
1560-2Z M6 X 0.75 15 2 60 60 / / 700-800 100 1
1070-2Z M4 10 2 70 200 / / 350-400 100 1
The upside-down trumpet type BRANSON TYPE (Larger amplitude and bigger output power, high-sound intensity and high-power density application)
Item No. Connect screw (Size) Ceramic diameter (mm) Quantity of Ceramic (pc) Resonance frequency (khz) Resistance (Ω) Capacitance Input power (W) Max. Amplitude (um)
            Yellow Grey Black
7015-4D M20 X 1.5 70 4 15 15 12500-14000 / 17000-19000 2600 11
6015-4D M18 X 1.5 60 4 15 15 9000-10000 10000-11000 / 2200 11
6015-6D 1/2-20UNF 60 6 15 15 19000-20500 / 23000-25000 2600 11
5015-6D 1/2-20UNF 50 6 15 15 17000-19000 / 23000-25000 2000 11
5020- 4DS 1/2-20UNF 50 4 20 15 11000-12000 12000-13500 / 1300 8
5020-4D 1/2-20UNF 50 4 20 15 11000-12000 12000-13500 14500-16000 1500 8
5020-6D 1/2-20UNF 50 6 20 15 19000-21000 / 22500-25000 2000 10
4020-6D 1/2-20UNF 40 6 20 15 13500-15000 / / 1500 10
4020-4D 1/2-20UNF 40 4 20 15 8500-9300/ 9500-10500 10000-11000 10500-11500 900 8
3020-6D 3/8-24UNF 30 6 20 15 8000-9000 / / 600 9
3030-4D M8 or M8 X 1 30 4 30 20 / 6200-6900 / 800 5
3535-2D M8 X 1 35 2 35 25 / / 4500-5000 600 9
3535-4D M8 X 1 35 4 35 20 6600-7400 / 9000-10000 1000 4
3035-4D 1/2-20UNF 30 4 35 20 5500-6200 / 9200-10200 800 4
2535-4D M8 25 4 35 25 3900-4300 / / 500 4
3040-2D M8 30 2 40 30 / 3400-3800 / 500 2
2540-4D M8 25 4 40 30 4500-5300 / / 500 3
2040-2D M8 20 2 40 40 1100-1300 1150-1350 / 300 2
