35kHz 600W 2 Pieces Ceramics Ultrasonic Welding Transducer Titanium Alloy Customized

China 35kHz 600W 2 Pieces Ceramics Ultrasonic Welding Transducer Titanium Alloy Customized supplier
35kHz 600W 2 Pieces Ceramics Ultrasonic Welding Transducer Titanium Alloy Customized supplier 35kHz 600W 2 Pieces Ceramics Ultrasonic Welding Transducer Titanium Alloy Customized supplier 35kHz 600W 2 Pieces Ceramics Ultrasonic Welding Transducer Titanium Alloy Customized supplier

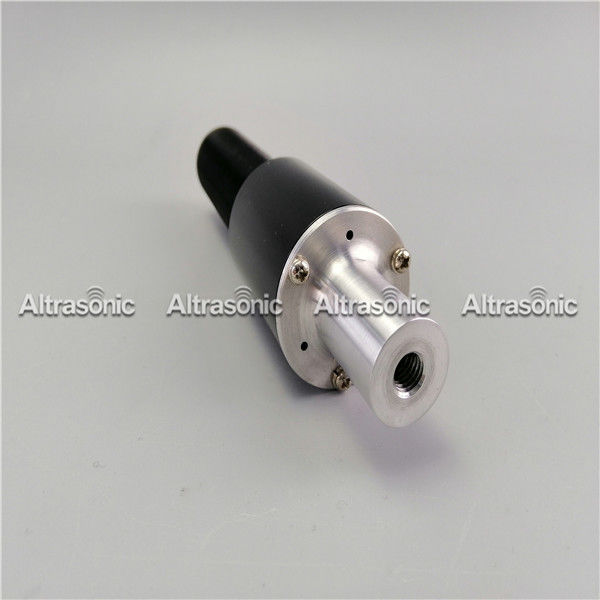

Large Image :  35kHz 600W 2 Pieces Ceramics Ultrasonic Welding Transducer Titanium Alloy Customized

Product Details:

Place of Origin: China
Brand Name: Altrasonic
Certification: CE
Model Number: HS3535-2D

Payment & Shipping Terms:

Minimum Order Quantity: 1 unit
Price: negotiation
Packaging Details: Packed in carton firstly, and then reinforced with wooden case for outer packing
Delivery Time: 7 weekdays after received your payment
Payment Terms: T/T, Western Union
Supply Ability: 10,000 units per month
Contact Now
Detailed Product Description
Frequency: 35kHz Qty Of Ceramic: 2 Pieces
Capacitance: 4.5-5nF Ceramic Diameter: 35mm
Power: 600W Colour: Silver And Black





35kHz 600W 2 pieces Ceramics Ultrasonic Welding Transducer Titanium Alloy Customized



Specification:



Item No. HS3535-2D
Connect screw M8*1
Ceramic diameter 35mm
Qty of ceramic 2 pieces
Frequency 35kHz
Capacitance 4.5-5nF
Power 600W
Amplitude 6um



Description:



The 35kHz 600W Ultrasonic Welding Transducer For Branson Welding machine / spot welder is applied to different type ultrasonic welding machine, standard welding machine, NTK type welding machine, Branson type. And can be connected with different type welding horn.



Feature:



The transducer converts high-frequency electrical energy into high-frequency mechanical vibrations. And it contains several piezoelectric ceramic discs sandwiched under pressure between two metal blocks. Between each disc is a thin metal plate, which forms the electrode. When a sinusoidal electrical signal is fed to the transducer via the electrodes, the discs expand and contract, producing axial vibrations.



Advantage:



1. Titanium, aluminum, steel materials of horn optional.

2. Once assembled, the transducers are aged before testing and final assembly. The properties of piezoelectric materials can change with time and pressure, so a bit of time on the shelf prior to testing will identify nonconforming material.

3. One by one testing to ensure that each transducer performance are excellent.

4. In good heat resistance, can be used in a wide range of temperature with long life and high reliability.



Application:



Ultrasonic transducer,ultrasonic generator and ultrasonic horn constitute a whole ultrasonic system,
which can be widely used to do welding in various kinds of industries.
Applied Industries : automobile industry, electric industry, medical industry, household appliance industry, non woven fabric clothing,packing, office supplies, toys, etc.
Applied Machines : Ultrasonic cleaner,Beauty set,welding machines,cutting machines,Medical scalpel and tartar clear.



What we can do for you:

1. OEM - special custom-made the ultrasonic transducers or parts for you, and save cost for you.

2. Supply Replacement converter - Including NTK, Branson CJ20, CR20, 922JA..., Dukane 110-3122, Rinco brand and so on.

3. For some special items, you can provide us with samples, then we can give you a competitive price and custom-made it for you.



Warranty:



We offer the same warranty as the OEM, namely, three years one-time replacement.

Simply ship the broken unit back to arrive within three years of original shipment, and it will be

replaced (one time).
