40Khz High Frequency Plastic Welding Machine , Portable Ultrasonic Spot Welder

China 40Khz High Frequency Plastic Welding Machine , Portable Ultrasonic Spot Welder supplier
40Khz High Frequency Plastic Welding Machine , Portable Ultrasonic Spot Welder supplier 40Khz High Frequency Plastic Welding Machine , Portable Ultrasonic Spot Welder supplier 40Khz High Frequency Plastic Welding Machine , Portable Ultrasonic Spot Welder supplier

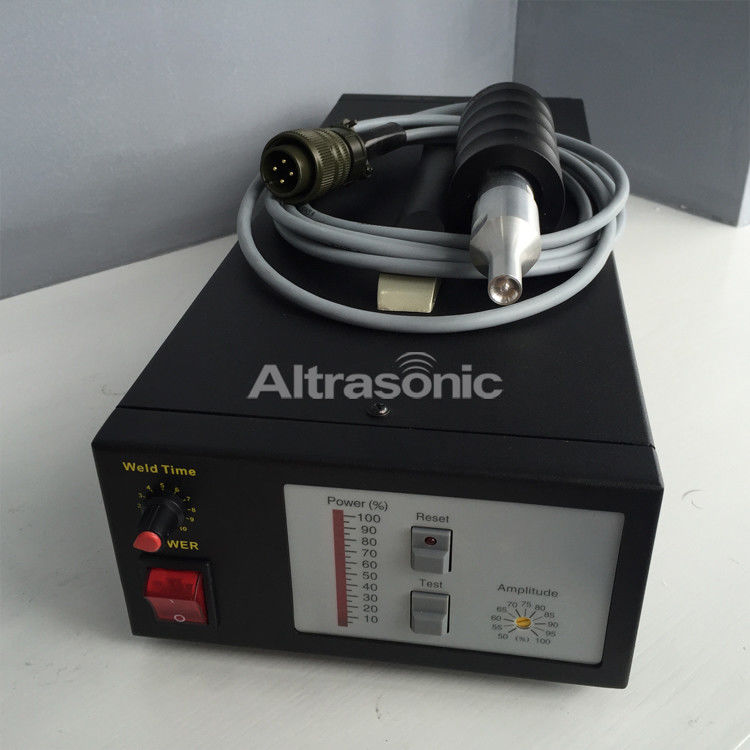

Large Image :  40Khz High Frequency Plastic Welding Machine , Portable Ultrasonic Spot Welder

Product Details:

Place of Origin: China
Brand Name: Altrasonic
Certification: CE
Model Number: HS-40

Payment & Shipping Terms:

Minimum Order Quantity: 1 unit
Price: negotiation
Packaging Details: Packed in carton firstly,and then reinforced with wooden case for outer packing
Delivery Time: 7 working days after received your payment
Payment Terms: T/T, Western Union
Supply Ability: 3000 units per month
Contact Now
Detailed Product Description
Product Name: Ultrasonic Spot Welding Machine Frequency: 40Khz
Power: 500W Inlet Power: AC220V±10V Or AC110V±10V , 50/60HZ
Working Environment: +5~+50℃ Keeping Environment: -5~+70℃
Net Weight: 10Kgs Max Current: 15A




40Khz High Frequency Portable Ultrasonic Spot Welding Machine


Description:

The principle of ultrasonic welding is through the ultrasonic generator to convert high-frequency electrical energy into higher frequency mechanical movement, then mechanical movement through a set of amplitude can be changed to the transmission device to the welding head.

The welding head transmits the received vibration energy to the joint portion of the workpiece to be welded, in which the vibration energy is converted into heat energy by friction and the plastic is melted. Ultrasonic not only can be used to weld hard thermoplastics, but also can process fabrics and films.


Specifications:


ModelHS-40HS-35HS-30HS-28HS-20
Frequency40khz35khz30khz28khz20khz
Power500W500~800w500~800w500~800w500~1000w
Horn≤10mm≤10mm≤10mm≤12mm≤13mm
Housing Diameter44mm44mm44mm44mm64mm
Weight of welder1.0kg1.0kg1.0kg1.0kg

1.5kg



Different Type of Ultrasonoic Welder:

Gun type: in accordance with the shape design of human body engineering, ultrasonic start switch is located on the trigger, easy to grasp and use the welding operation, especially suitable for horizontal or vertical.

Cylinder type: for the appearance of design straight, ultrasonic start switch is located outside the cylinder, easy welding and hand carried, can also be installed between the on machine, welding operation for each direction.




Comptetive Advantages:

  • Application in riveting, forming and welding
  • Light weight, easy to take, easy to operate (handheld)
  • Equipped with welding timer
  • Easty to set time welding
  • Equipped with an overload protection circuit( Voltage, current, phase, temperature, output)
  • FET power output
  • Automatic resonance
  • Maintain the amplitude function automatically
  • Starting: achieving maximum power with 105msec



Applications In Automobile:

Ultrasonic Spot Welding is mainly used in automotive interior parts. Ultrasonic spot welding in sound-proof cotton of engine cover, trunk and wheel casing, and hallstand felt. Ultrasonic Riveting Welding can be used in automobile air-conditioning outlet welding, car rear view mirror, car door handles, hand car door and so on.

Automotive plastic parts are mostly welded in non-standard ultrasonic welding equipment, long multi-station design, with PCL program control and LCD operation, large automotive complex workpiece welding, including different directions of the welding surface, in multiple locations.


Components of Ultrasonic Welder

Components of Ultrasonic Welding (Horn, Booster and Transducer)
They can amplify the amplitude at a particular ratio step by step. For example, the transducer amplitude is 6um, the booster can amplify it triply to 18um, and then the horn can make it to 36um. However, the work life of horn would be shortened with the amplification of amplitude. The required amplitude differs with the welding material.

40Khz High Frequency Portable Ultrasonic Spot Welding Machine



40Khz High Frequency Plastic Welding Machine , Portable Ultrasonic Spot Welder



40Khz High Frequency Plastic Welding Machine , Portable Ultrasonic Spot Welder



Tag: ultrasonic spot welder,portable spot welder
