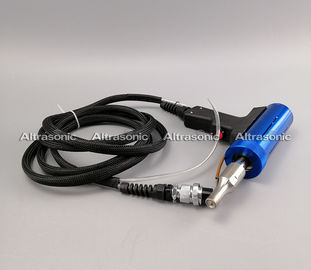

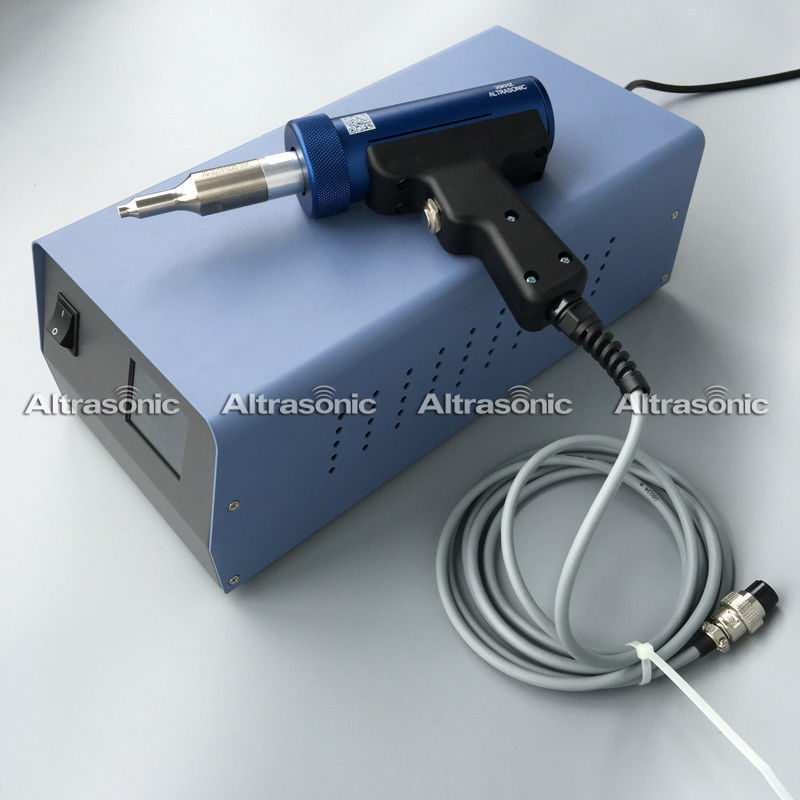

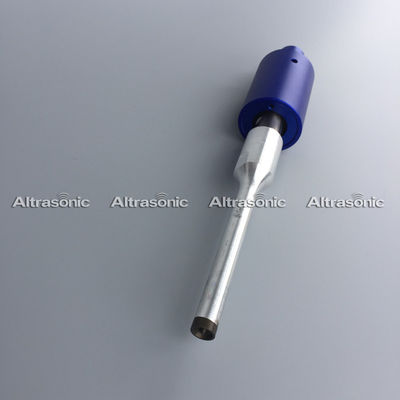

35Khz 500 Watt Handheld Ultrasonic Spot Welding Machine For Auto Parts

China 35Khz 500 Watt Handheld Ultrasonic Spot Welding Machine For Auto Parts supplier
35Khz 500 Watt Handheld Ultrasonic Spot Welding Machine For Auto Parts supplier 35Khz 500 Watt Handheld Ultrasonic Spot Welding Machine For Auto Parts supplier 35Khz 500 Watt Handheld Ultrasonic Spot Welding Machine For Auto Parts supplier 35Khz 500 Watt Handheld Ultrasonic Spot Welding Machine For Auto Parts supplier

Large Image :  35Khz 500 Watt Handheld Ultrasonic Spot Welding Machine For Auto Parts

Product Details:

Place of Origin: China
Brand Name: Altrasonic
Certification: CE
Model Number: HS-35

Payment & Shipping Terms:

Minimum Order Quantity: 1 unit
Price: negotiation
Packaging Details: Packed in carton firstly,and then reinforced with wooden case for outer packing
Delivery Time: 7 working days after received your payment
Payment Terms: T/T, Western Union, Paypal
Supply Ability: 3000 units per month
Contact Now
Detailed Product Description
Product Name: Ultrasonic Spot Welding Machine Frequency: 35Khz
Power: 500~800W Inlet Power: AC220V±10V Or AC110V±10V , 50/60HZ
Auotomatic Resonance Frequency Range: ±1000hz Working Environment: +5~+50℃
Portable Welder Weight: 1Kgs Max Current: 15A







35Khz 500Watt Handheld Ultrasonic Spot Welding Machine For Auto Parts​








Description:



Ultrasonic welding remains one of the fastest and most cost effective techniques for welding smaller thermoplastic parts. Using ultrasonic welding, one part is held stationary in a holding fixture while the other part is vibrated acoustically against it under pressure, creating frictional heat at their joining surfaces.



Hand-held ultrasonic welding machine, also known as ultrasonic spot welding machine. It is an ultrasonic welding device that uses the principle of ultrasonic high-frequency vibration friction to make the welding surface of the workpiece friction and generate heat while applying pressure thereto, so that the structural molecules are fully activated to form a fusion between the molecular layers.



Specifications:




  Gun Type& Cylinder Type
Model HS-40 HS-35 HS-30 HS-28 HS-20
Frequency 40khz 35khz 30khz 28khz 20khz
Power 500W 500~800w 500~800w 500~800w 500~1000w
Horn ≤10mm ≤10mm ≤10mm ≤12mm ≤13mm
Housing Diameter 44mm 44mm 44mm 44mm 64mm
Weight of welder 1.0kg 1.0kg 1.0kg 1.0kg 1.5kg






Affecting Factors in Ultrasonic Welding:



Ultrasonic automotive plastics as the condition of ultrasonic welding, the most important is the time to apply welding energy (vibration, welding time) length and pressure, of course, other conditions are also very important. Welding temperature ultrasonic welding material viscosity flow temperature. Otherwise the material will not melt.





Attention for Welding



The welding time varies depending on the material and the shape of the product. The welding time of some molded articles is only 0.2 seconds. Over time will cause excessive welding and produce a lot of flash and bubble, resulting in poor airtight, must pay attention. Cooling (holding) time For crystalline plastic, if the temperature below the melting point, the connection will be solidified, usually the pressure time is maintained between 0.1-0.2 seconds. AMMA plastic).





Applications:



Automobile and motorcycle: battery, front Angle lamp, rear lamp, instrument, reflector, manual auto protection jacket welding, auto door plate welding, auto front baffle welding, auto floor welding, auto bumper repair welding, etc.



Advantages:



1. Adopt Taiwan ultrasonic system.

2. Time control and set ultrasonic time.

3. It has the function of overheat and overload protection with high reliability.

4. Adaptive output power load, high efficiency and excellent energy saving.

5. Output amplitude is stepless and adjustable, and ultra-resistant folding connection line is configured.

6. Small size, large power, high integration, customized by professional manufacturers of components and components.

7. For ultrasonic testing, the output of ultrasonic can be controlled manually, and it is used to check whether the power supply is normal during debugging and maintenance.





35Khz 500 Watt Handheld Ultrasonic Spot Welding Machine For Auto Parts

35Khz 500 Watt Handheld Ultrasonic Spot Welding Machine For Auto Parts

35Khz 500 Watt Handheld Ultrasonic Spot Welding Machine For Auto Parts



35Khz 500Watt Handheld Ultrasonic Spot Welding Machine For Auto Parts



35Khz 500 Watt Handheld Ultrasonic Spot Welding Machine For Auto Parts35Khz 500 Watt Handheld Ultrasonic Spot Welding Machine For Auto Parts

35Khz 500 Watt Handheld Ultrasonic Spot Welding Machine For Auto Parts







Tag: ultrasonic spot welder,portable spot welder
