2000 Watt Ultrasonic Piezoelectric Transducer Dukane 110-3122 Replacement

China 2000 Watt Ultrasonic Piezoelectric Transducer Dukane 110-3122 Replacement supplier
2000 Watt Ultrasonic Piezoelectric Transducer Dukane 110-3122 Replacement supplier 2000 Watt Ultrasonic Piezoelectric Transducer Dukane 110-3122 Replacement supplier 2000 Watt Ultrasonic Piezoelectric Transducer Dukane 110-3122 Replacement supplier

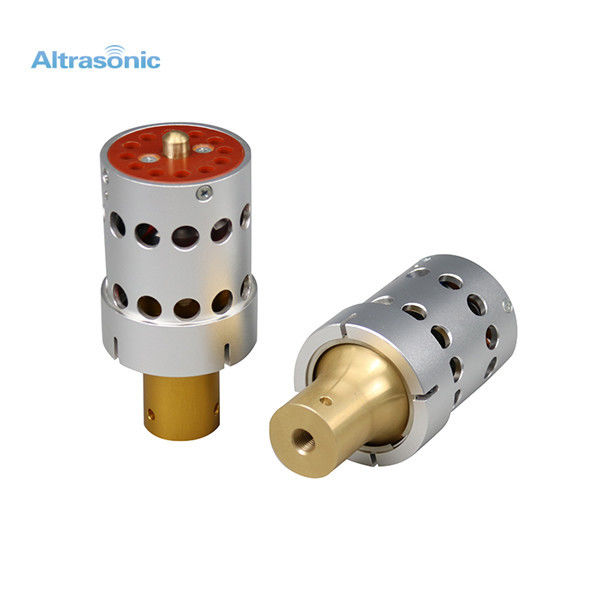

Large Image :  2000 Watt Ultrasonic Piezoelectric Transducer Dukane 110-3122 Replacement

Product Details:

Place of Origin: China
Brand Name: Altrasonic
Certification: CE
Model Number: HSD110-3122

Payment & Shipping Terms:

Minimum Order Quantity: 1 unit
Price: negotiation
Packaging Details: Packed in carton firstly,and then reinforced with wooden case for outer packing
Delivery Time: 7 working days after received your payment
Payment Terms: T/T or western Union
Supply Ability: 10,000 units per month
Contact Now
Detailed Product Description
Product Name: Replacement Transducer For Dukane 110-3122 Frequency: 20 Khz
Ceramic Diameter: 50 Mm Capacitance: 11000pf
Power: 2000 Watt Application: Welding Machine
Amplitude: 20 Um Ceramic Disc: 4 Pcs
Material Of Booster: Titanium, Aluminum, Steel Materials Optional Protective Housing: Aluminum And Stainless Steel Optional



2000 Watt Ultrasonic Piezoelectric Transducer Dukane 110-3122 Replacement



Specifications:



Model HSD110-3122
Frequency 20 khz
Output power 2000 watt
Joint bolt 1/2-20 UNF
Ceramic disc Diameter 50mm
Qty of ceramic discs 4pcs
Capacitance 11nf
Amplitude 20 um
Application Plastic welding machine





Description:



The 2000 Watt 20 KHz Ultrasonic Converter Direct replacement for the Dukane 110-3122 that delivers lower cost, rugged quality and superior value.First, all of the parts are all new. The parts are made from certified materials in tightly controlled manufacturing processes, assembled and



tested in a climate-controlled environment using carefully calibrated equipment, then properly aged and re-tested to ensure performance that duplicates the OEM part.





The transducer converts high-frequency electrical energy into high-frequency mechanical vibrations. And it contains several piezoelectric ceramic discs sandwiched under pressure between two metal blocks. Between each disc is a thin metal plate, which forms the electrode. When a sinusoidal electrical signal is fed to the transducer via the electrodes, the discs expand and contract, producing axial vibrations.





Applied Range:

Ultrasonic transducer,ultrasonic generator and ultrasonic horn constitute a whole ultrasonic system,
which can be widely used to do welding in various kinds of industries.

Applied Industries : automobile industry, electric industry, medical industry, household appliance industry, non woven fabric
clothing,packing, office supplies, toys, etc.
Applied Machines : Ultrasonic cleaner,Beauty set,welding machines,cutting machines,Medical scalpel and tartar clear.





Competitive Advantage:



1. Titanium, aluminum, steel materials of horn optional.

2. Once assembled, the transducers are aged before testing and final assembly. The properties of piezoelectric materials can change with time and pressure, so a bit of time on the shelf prior to testing will identify nonconforming material.

3. One by one testing to ensure that each transducer performance are excellent.

4. In good heat resistance, can be used in a wide range of temperature with long life and high reliability.



Warranty:





We offer the same warranty as the OEM, namely, three years one-time replacement.



Simply ship the broken unit back to arrive within three years of original shipment, and it will be replaced (one time).













High Power Ultrasonic Welding Transducer 20khz 2000Watt Dukane 110-3122 Replacement

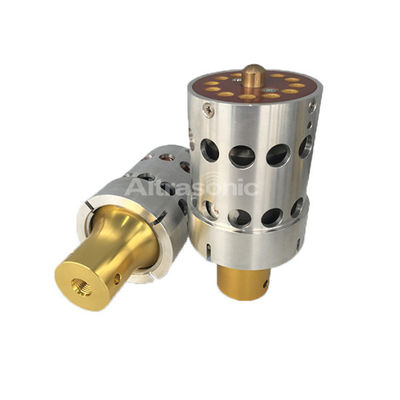

2000 Watt Ultrasonic Piezoelectric Transducer Dukane 110-3122 Replacement

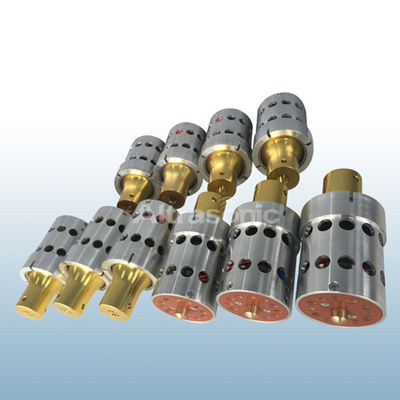

2000 Watt Ultrasonic Piezoelectric Transducer Dukane 110-3122 Replacement

2000 Watt Ultrasonic Piezoelectric Transducer Dukane 110-3122 Replacement
