Payment & Shipping Terms:
|Material:||Food Grade Titanium||Power:||800W|
|Length Of Blade:||305/255/155mm/80mm Or Customized||Voltage:||110V/220V|
|Weight:||10-15kg||Cable Length:||3M Or Customized|
|Generator:||Digital, Auto -tuning||PLC Control:||Support|
|Install Tape:||Hand-held Or Mounted On Robot||Wattanty:||One Year|
ultrasonic food cutting machine,
ultrasonic food cutter

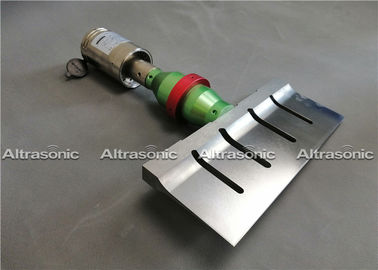

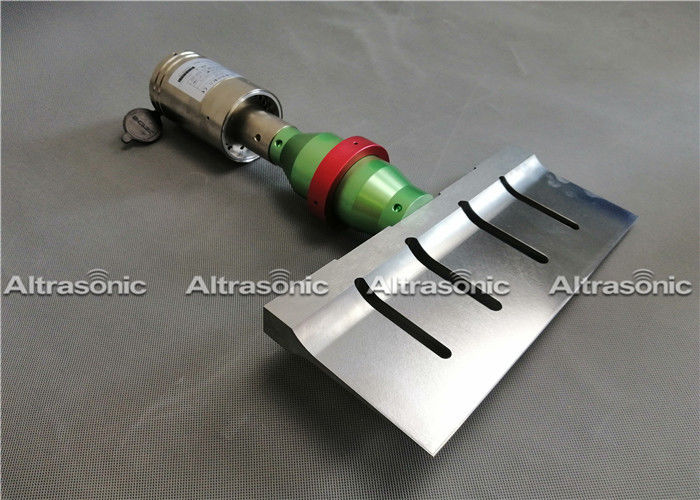

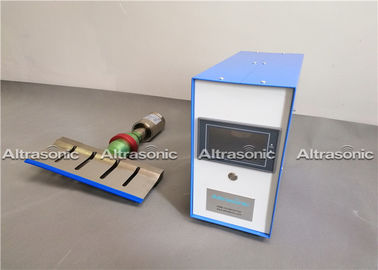

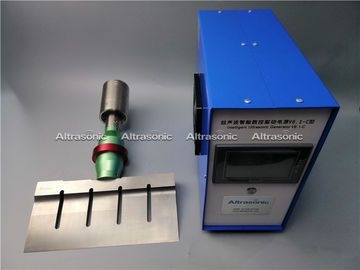

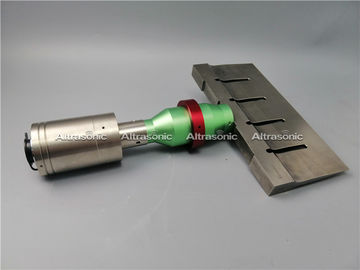

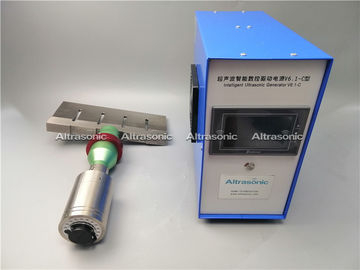

20K Ultrasonic Cake Cutting Machine With High-speed Titanium Blade For Bakery
Ultrasonic cake cutting machine is the use of wave energy for cutting a class of equipment, its biggest feature is the cutting without cutting edge. The traditional cutting is the use of cutting tools with sharp edges, pressed to the cutting material. This pressure is concentrated in the edge, the pressure is very large. More than the shear strength of the material being cut, the material of the molecular combination was opened, it was cut off. As the material is a strong pressure to pull hard, so the cutting knife its edge should be very sharp, the material itself to bear the relatively large pressure. Its soft, flexible material cutting effect is not good, more difficult to sticky material.
|Power Controller||stepping or continuous|
|Length of the blade||305/255/155mm/80mm or Customized|
|Material Of Cutting Head||Food grade titanium alloy|
|Accessories||foot switch, additional blade|
|Cooling Device||compressed air mouth can be installed.|
|Cable Length||3M or customized|
1. No sticking to the ultrasonic blade / horn / knife / sonotrode
2. Perfect clean cut surface
3. Compact equipment with a wide range of application
4. Scalable machines adjustable to your needs, via our partners.
5. Wide product variety of cutting without any tool changing, like for rubber tires.
6. No diameter, weight or thickness limits
7. Easy to wash down, and easy to maintain
8. Possibility to increase the cutting width with blades in series
9. High speed slicing: 60 to 200 strokes / min. per blade
- Prepared meats
- Foie gras
- Fresh or frozen foods
1: How can I ensure your ultrasonic cutter sharp enough for my application?
The sharpness of Ultrasonic Cutters differs according to various combinations of oscillator, transducer, and blade. Because of abundant experience, our company prepares combinations suitable for various materials. Since we can select the model most suitable for your cutting work, we ask that you confirm the sharpness of the selected model by test cutting first.
2. What’s the distinct advantages of ultrasonic food cutting machine?
Altrasonic offers a complete line of specialized equipment and components for ultrasonic food cutting. Compared to conventional cutters, ultrasonic food cutters are more sanitary, with less down time, better cost-effectiveness and increased consistency at the cutting surface where the blades stay sharp longer.
3 :what’s the feature of Altrasonic cutting tools?
Cutting tools are manufactured in-house by a precision wire EDM process that reduces stress for longer life. Sonics provides full customization of OEM components, kits and knife horns. Typical applications include cheese cutting; cake and dessert product cutting; confectionary product cutting; meat cutting; sandwich and wrap cutting.
