NTK Type Ultrasonic Welding Transducer For Ultrasonic Plastic Welding Machine

China NTK Type Ultrasonic Welding Transducer For Ultrasonic Plastic Welding Machine supplier
NTK Type Ultrasonic Welding Transducer For Ultrasonic Plastic Welding Machine supplier NTK Type Ultrasonic Welding Transducer For Ultrasonic Plastic Welding Machine supplier NTK Type Ultrasonic Welding Transducer For Ultrasonic Plastic Welding Machine supplier NTK Type Ultrasonic Welding Transducer For Ultrasonic Plastic Welding Machine supplier

Large Image :  NTK Type Ultrasonic Welding Transducer For Ultrasonic Plastic Welding Machine

Product Details:

Place of Origin: China
Brand Name: Altrasonic
Certification: CE
Model Number: HS2528-2Z

Payment & Shipping Terms:

Minimum Order Quantity: 2 unit
Price: negotiation
Packaging Details: Packed in carton firstly,and then reinforced with wooden case for outer packing
Delivery Time: 7 working days after received your payment
Payment Terms: T/T or western Union
Supply Ability: 5,000 units per month
Contact Now
Detailed Product Description

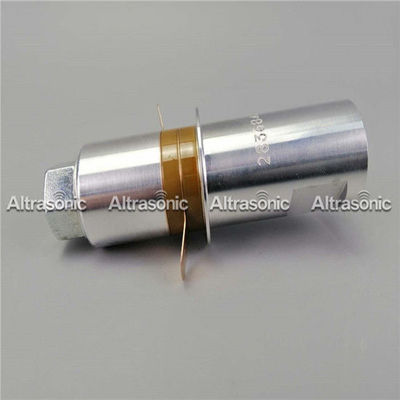

Product Name: Ultrasonic Welding Transducer Joint Bolt: M8*1 Or 8-24UNF
Ceramic Diameter: 25mm Type: NTK Type
Application: Welding

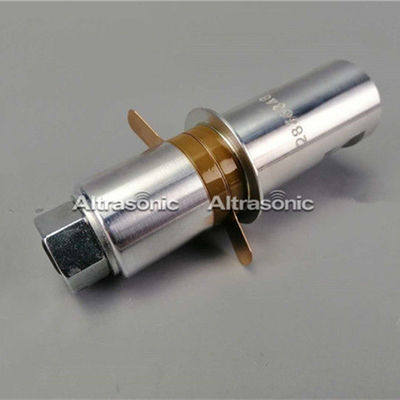

28 Khz NTK Type Ultrasonic Transducer For Welding Without Protective Housing









Specifications:



Model

HS2528-2Z

Frequency

28khz

Output power

300 watt

Joint bolt

M8*1or 8-24UNF

Ceramic disc Diameter

25mm

Quantity of Ceramic discs

2pcs

Amplitude

10um

Application

Welding





Description:



The transducer converts high-frequency electrical energy into high-frequency mechanical vibrations. And it contains several piezoelectric ceramic discs sandwiched under pressure between two metal blocks. Between each disc is a thin metal plate, which forms the electrode. When a sinusoidal electrical signal is fed to the transducer via the electrodes, the discs expand and contract, producing axial vibrations.





Applications:



Transducer, in electronics, a device that converts electric energy into some other form of energy, especially the application of mechanical energy in industry is more and more significant.

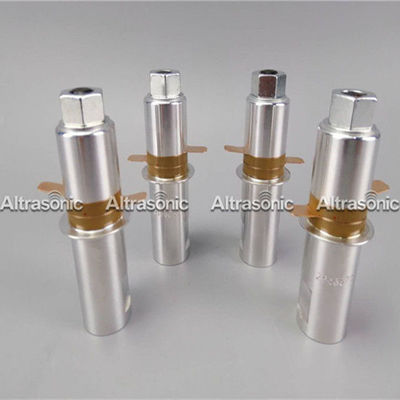

We mainly supply two kinds of Ultrasonic transducers: NTK type and Branson type. Widely used in ultrasonic welding, ultrasonic cutting,ultrasonic sewing machine,ultrasonic sonochemistry, ultrasonic wire stripping machine,ultrasonic nebulizer,Ultrasonic riveting machine.


Specification Of Ultrasonic Transducer:

The columnar type NTK TYPE (stabilized power and high reliablity widely application)
Item No. Connect screw (Size) Ceramic diameter (mm) Quantity of Ceramic (pc) Resonance frequency (khz) Resistance (Ω) Capacitance Input power (W) Max. Amplitude (um)
            Yellow Grey Black
7015-4Z M20 X 1.5 70 4 15 15 12500-14000 / 17000-19000 2600 10
6015-4Z M20 X 1.5 or M16 X 1 60 4 15 15 8000-10000 10000-12000 12500-13500 2200 10
6015-6Z M20 X 1.5 60 6 15 15 14000-16000 / 19500-21000 2600 10
5015-4Z M18 X 1.5 50 4 15 15 12000-13000 13000-14300 15000-17000 1500 8
4015-4Z M16 X 1 40 4 15 15 10000-11000 10500-11500   700 8
5520-4Z M18 X 1 55 4 20 15 10000-11000 10500-11500 14300-20000 2000 8
5020-6Z M18 X 1.5 50 6 20 15 18500-20000 / 22500-25000 2000 8
5020-4Z M18 X 1.5 50 4 20 15 11000-13000 13000-15000 15000-17000 1500 8
5020-2Z M18 X 1.5 50 2 20 20 6000-6500 6500-7000 8000-9000 800 6
4020-4Z 1/2-20UNF 40 4 20 15 9000-10000 9500-11000 / 900 6
4020-2Z 1/2-20UNF 40 2 20 25 / 4800-5500 / 500 5
5025-2Z M12 X 1 50 2 25 25 5000-5600 / 7000-8000 500 4
3828-2Z 1/2-20UNF 38 2 28 30 3800-4300 / / 500 3
3828-4Z 1/2-20UNF 38 4 28 30 7600-8500 / 10500-12000 800 4
3028-2Z 3/8-24UNF 30 2 28 30 2700-3100 3400-3800 / 400 3
2528-4Z M8 X 1 25 4 28 30 3900-4300 / / 400 4
2528-2Z M8 X 1 or 3/8-24UNF 25 2 28 35 1950-2200 2200-2500 / 300 3
3030-4Z M10 30 4 30 30 / 6200-6900 / 700 4
3035-2Z 3/8-24UNF 30 2 35 40 2700-3100 / / 500 2
3035-4Z M10 X 1 30 4 35 30 5000-6200 / / 800 3
2535-2Z M8 X 1 25 2 35 40 1900-2200 / / 400 2
2540-2Z 3/8-24UNF 25 2 40 40 / 2000-2300 / 500 2
3040-4Z M10 30 4 40 30 5500-6200 / / 1000 2
3050-4Z M8 30 4 50 30 5500-6200 / / 600 2
1560-2Z M6 X 0.75 15 2 60 60 / / 700-800 100 1
1070-2Z M4 10 2 70 200 / / 350-400 100 1

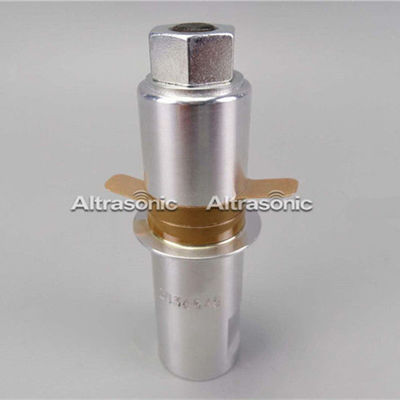

The upside-down trumpet type BRANSON TYPE (Larger amplitude and bigger output power, high-sound

intensity and high-power density application)

Item No. Connect screw (Size) Ceramic diameter (mm) Quantity of Ceramic (pc) Resonance frequency (khz) Resistance (Ω) Capacitance Input power (W) Max. Amplitude (um)
            Yellow Grey Black
7015-4D M20 X 1.5 70 4 15 15 12500-14000 / 17000-19000 2600 11
6015-4D M18 X 1.5 60 4 15 15 9000-10000 10000-11000 / 2200 11
6015-6D 1/2-20UNF 60 6 15 15 19000-20500 / 23000-25000 2600 11
5015-6D 1/2-20UNF 50 6 15 15 17000-19000 / 23000-25000 2000 11
5020- 4DS 1/2-20UNF 50 4 20 15 11000-12000 12000-13500 / 1300 8
5020-4D 1/2-20UNF 50 4 20 15 11000-12000 12000-13500 14500-16000 1500 8
5020-6D 1/2-20UNF 50 6 20 15 19000-21000 / 22500-25000 2000 10
4020-6D 1/2-20UNF 40 6 20 15 13500-15000 / / 1500 10
4020-4D 1/2-20UNF 40 4 20 15 8500-9300/ 9500-10500 10000-11000 10500-11500 900 8
3020-6D 3/8-24UNF 30 6 20 15 8000-9000 / / 600 9
3030-4D M8 or M8 X 1 30 4 30 20 / 6200-6900 / 800 5
3535-2D M8 X 1 35 2 35 25 / / 4500-5000 600 9
3535-4D M8 X 1 35 4 35 20 6600-7400 / 9000-10000 1000 4
3035-4D 1/2-20UNF 30 4 35 20 5500-6200 / 9200-10200 800 4
2535-4D M8 25 4 35 25 3900-4300 / / 500 4
3040-2D M8 30 2 40 30 / 3400-3800 / 500 2
2540-4D M8 25 4 40 30 4500-5300 / / 500 3
2040-2D M8 20 2 40 40 1100-1300 1150-1350 / 300 2
