Rinco Type Ultrasonic Transducer Replacement High Performance

Rinco Type Ultrasonic  Transducer Replacement  High Performance
Rinco Type Ultrasonic  Transducer Replacement  High Performance Rinco Type Ultrasonic  Transducer Replacement  High Performance Rinco Type Ultrasonic  Transducer Replacement  High Performance Rinco Type Ultrasonic  Transducer Replacement  High Performance Rinco Type Ultrasonic  Transducer Replacement  High Performance Rinco Type Ultrasonic  Transducer Replacement  High Performance

Large Image :  Rinco Type Ultrasonic Transducer Replacement High Performance

Product Details:
Place of Origin: China
Brand Name: Altrasonic
Certification: CE
Model Number: HSR-35
Payment & Shipping Terms:
Minimum Order Quantity: 1PCS
Price: Negotiable
Packaging Details: Packed in carton firstly,and then reinforced with wooden case for outer packing
Delivery Time: 7 working days after received your payment
Payment Terms: T/T or western Union
Supply Ability: 1000 units per month

Rinco Type Ultrasonic Transducer Replacement High Performance

Description
Product Name: Ultrasonic Transducer Joint Bolt: M18*1..25
Type: The Upside-down Trumpet Type Application: Welding
Amplitude: 12um Quantity Of Ceramic Discs: 2 Pcs
Output Power: 900W Frequency: 35K
High Light:

high frequency ultrasonic transducer

,

portable transducer

Rinco Type Ultrasonic Transducer Replacement High Performance



Introduction:



This ultrasonic transducer is a high copy series, cost-effective, all parts are new.



Specifications:



Model

HSR-35

Frequency

35khz

Output power

9000watt

Joint bolt

M18*1.25

Ceramic disc Diameter

25mm

Quantity of Ceramic discs

2pcs

Amplitude

12um

Application

Welding



Description:



The transducer converts high-frequency electrical energy into high-frequency mechanical vibrations. And it contains several piezoelectric ceramic discs sandwiched under pressure between two metal blocks. Between each disc is a thin metal plate, which forms the electrode. When a sinusoidal electrical signal is fed to the transducer via the electrodes, the discs expand and contract, producing axial vibrations.



Applications:



Transducer, in electronics, a device that converts electric energy into some other form of energy, especially the application of mechanical energy in industry is more and more significant.

 Ultrasonic transducers are widely used in ultrasonic welding, ultrasonic cutting,ultrasonic sewing machine,ultrasonic sonochemistry, ultrasonic wire stripping machine,ultrasonic nebulizer,Ultrasonic riveting machine.



Competitive Advantages:



1. Stable parameters

2. Easy matching with ultrasonic power supply

3. Superior raw materials

4. Accept OEM cooperation



Detailed Images:

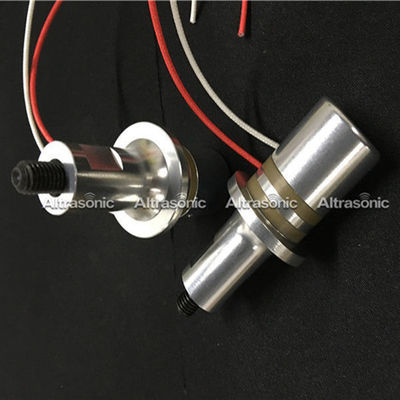

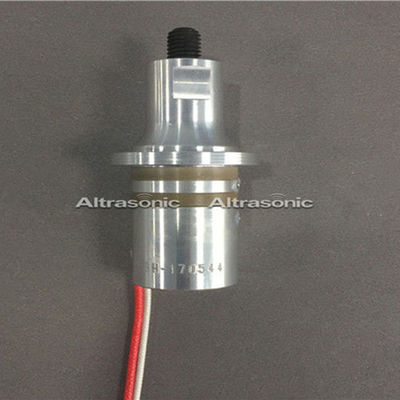

Rinco Type Ultrasonic  Transducer Replacement  High Performance 0Rinco Type Ultrasonic  Transducer Replacement  High Performance 1

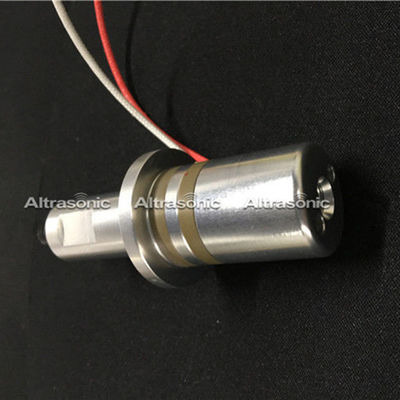

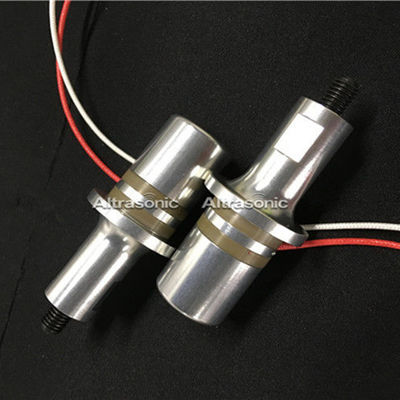

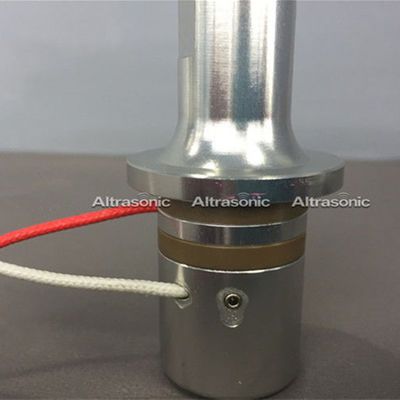

Rinco Type Ultrasonic  Transducer Replacement  High Performance 2Rinco Type Ultrasonic  Transducer Replacement  High Performance 3Rinco Type Ultrasonic  Transducer Replacement  High Performance 4

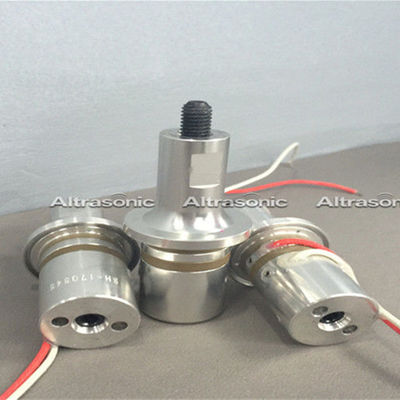

Rinco Type Ultrasonic  Transducer Replacement  High Performance 5

Rinco Type Ultrasonic  Transducer Replacement  High Performance 6

Rinco Type Ultrasonic  Transducer Replacement  High Performance 7
