Hand - Held Ultrasonic Spot Welding Machine Equipment For Seamless Shoes

China Hand - Held Ultrasonic Spot Welding Machine Equipment For Seamless Shoes supplier
Hand - Held Ultrasonic Spot Welding Machine Equipment For Seamless Shoes supplier Hand - Held Ultrasonic Spot Welding Machine Equipment For Seamless Shoes supplier

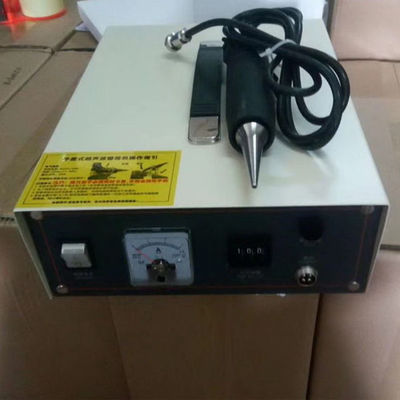

Large Image :  Hand - Held Ultrasonic Spot Welding Machine Equipment For Seamless Shoes

Product Details:

Place of Origin: China
Brand Name: Altrasonic
Certification: CE
Model Number: Portable series

Payment & Shipping Terms:

Minimum Order Quantity: 1 unit
Price: negotiation
Packaging Details: Packed in carton firstly,and then reinforced with wooden case for outer packing
Delivery Time: 7 working days after received your payment
Payment Terms: T/T, Western Union
Supply Ability: 3000 units per month
Contact Now
Detailed Product Description
Product Name: Ultrasonic Spot Welding Machine Frequency: 35Khz
Power: 500W Inlet Power: AC220V±10V Or AC110V±10V , 50/60HZ
Auotomatic Resonance Frequency Range: ±1000hz Working Environment: +5~+50℃
Keeping Environment: -5~+70℃ Net Weight: 9Kgs



Hand-Held Ultrasonic Welding Equipment

For Seamless Shoes





Technical Parameters:







Model HS3505B Input Voltage 220/110V, 50/60Hz
Weight 9KG Welding Time 0.01-9.99S
Frequency 35KHz Style Hand held
Output Power 500W Too Head Material Titanium Alloy
Control Mode NC Dynamic Forms Ultrasonic
Welding Head Stroke 5 mm Lift Control Manual
Welding Area 8*8mm Spot Welding Size Diameter 1-8mm
Appearance Size 440*120*180mm Cooling Mode

Air Cooling









Description:





  • This ultrasonic welding machine uses a new generation of ultrasonic welding technology, which greatly shorten the processing time, a few milliseconds can complete the welding.
  • Application of ultrasonic machining, clean, stable and reliable and low energy consumption, ultrasonic energy only in the precise area of the welding will be consumption, efficient and economical, operation no preheating and heat preservation.
  • This ultrasonic welding machine can not only be used to weld hard thermoplastic, but also can process the fabric and film. With the advantages of fast, clean and safe, favored by the majority of manufacturers.
  • This ultrasonic welding machine can be used for welding thermoplastics, we can change the welding head according to customer demand for welding, spot welding, embedding, removal and other processing.
  • This ultrasonic welding machine adopts imported piezoelectric ceramic crystal oscillator, high efficiency, long service life. Normal circulation self-cooled ultrasonic generator, the failure rate is very low.



  • This ultrasonic welding machine can also be used for thermoplastic plastic products of welding, riveting, welding and metal parts and plastic parts between mosaic and side pressure process, low energy consumption, high efficiency, no deformation, no pollution, firm welding, convenient operation.





Ultrasonic Welding Principle:

  • Ultrasonic welding machine is the use of ultrasonic generator to convert low current frequency to high frequency AC, then the same frequency of mechanical vibration by ultrasonic transducer.
  • Mechanical vibration transmitted to the ultrasonic welding joints by the amplitude modulator, the vibrational energy welding joints received transfer to the workpiece to be welded joint. In the region, the energy through friction converted into heat energy, to melt the plastic.



  • After vibration stopped, maintain short-term pressure makes the weldment on artifacts in molecular link way solidification as a whole.





Advantages:



  • High-quality ultrasonic transducer, strong power, good stability.
  • Welding fast, each welding time only 0.01-9.99 seconds.
  • Titanium alloy mold, for a variety of environments, difficult to damage.
  • Extended matte plastic handle, protect the transducer damage.
  • Compact design, small space.
  • Low noise, good working environment.
  • Low energy consumption, high efficiency, no distortion, no pollution, welding firm, and convenient operation.
  • Handheld welder, easy control, precision, spot welding preferred.
  • It can be accurately set and quickly adjusted parameters.



  • Metal paint box, beautiful appearance, durable resistance to fall.





Application Area:



This machine adopts high quality elements, smart design, convenient for carrying and moving, reliable performance, easy operation, mainly for spot welding, bonding, riveting, marking, sealing and so on.

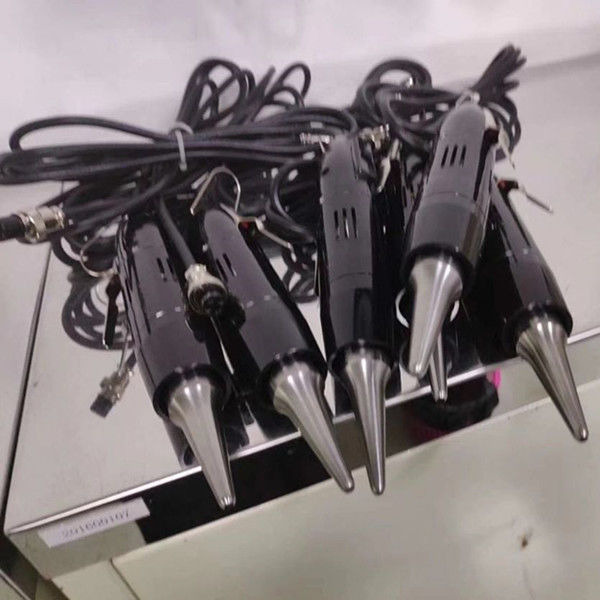

Hand - Held Ultrasonic Spot Welding Machine Equipment For Seamless Shoes



Hand - Held Ultrasonic Spot Welding Machine Equipment For Seamless ShoesHand - Held Ultrasonic Spot Welding Machine Equipment For Seamless Shoes
