40khz 100w Portable Ultrasonic Cutting Machine with Replaceable Blades for Nonwoven Cloths

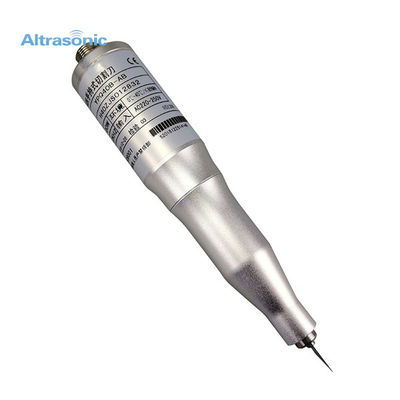

Ultrasonic cutting vibration system is mainly composed of ultrasonic transducer, ultrasonic booster and cutting blade. Among them, the role of ultrasonic transducer is to convert electrical signals into acoustic signals; Booster is an important part of ultrasonic machining equipment. It has two main functions :(1) energy accumulation is the amplification of mechanical vibration displacement or velocity amplitude, or the concentration of energy on a smaller radiant surface for energy accumulation;(2) effectively transfer sound energy to the load as a mechanical impedance converter, impedance matching between the transducer and the acoustic load, so that ultrasonic energy can be transmitted to the load more effectively from the transducer. The combination form of ultrasonic amplitude transformer and cutting blade is adopted in this system. In order to obtain a large amplitude amplification factor (Am), stepped amplitude transformer is adopted.

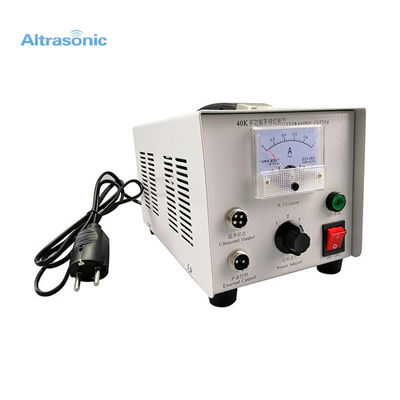

Power supply : ZJS-100L
Generator dimension : 155W*265L*170H
Blade diameter: 32*170

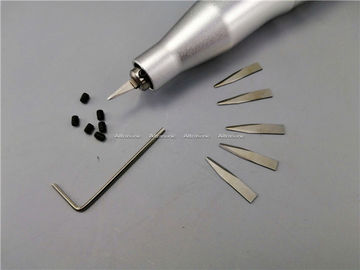

Blade: single blade(25pcs)or Double blades(10pcs)
1.5mm special hex wrench 1pcs
Connect screw: M3*4L 2 pcs
Cutting thickness :1mm-3mm
Wide range: all kinds of textile materials can be cut by ultrasonic.For example, natural fibers, synthetic fibers, including aromatic polyphthalamine fibers, carbon fibers and glass fibers, woven fabrics, non-woven fabrics and knitted fabrics can be cut by ultrasonic waves.
1. High stability
When the ultrasonic generator works, it generates electromagnetic vibration of 40khz, which is converted into mechanical vibration and transmitted to the cutter and cutting materials. Mechanical cutting is carried out, so no sharp edge is needed, and the blade wears little. At the same time, the cutter head can be replaced by itself.
2. No pollution
Ultrasonic knife cutting, the cutting head temperature is lower than 50 ℃, won't produce smoke and bad smell, ruled out when cutting damage and danger of the fire.
3. Cut neatly
Because ultrasonic wave cuts through high-frequency vibration, the material will not adhere to the blade surface, cutting only requires a small pressure, for fragile and soft materials are not deformation and wear, fabric cutting at the same time automatically sealing edge, will not cause edge collapse.
4. Simple operation

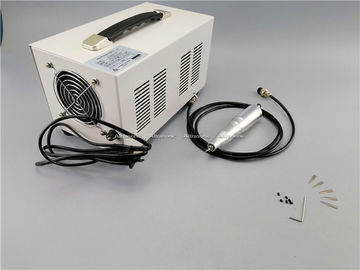

5. The cutting knife is connected to the ultrasonic generator, which is connected to the 220V power supply. When the switch is turned on, it can be used for cutting, supporting handheld and machine-mounted cutting (three-axis mechanical arm can be added).
We offer the same warranty as the OEM, namely, one years, free replacement.
Simply ship the broken unit back to arrive within three years of original shipment, and it will be replaced (one time).
Why choose Altrasonic
1. Free test: We accept samples from customers, do free test for customer. Also welcome customer visit our company for experiment.Your problem is our problem.
2. Oversea service: We have sub company in Australia,and agent in India,Malaysia,and Europe,we can offer oversea service for some customers. Our target is to be forever friend with every customer.
3. Customized solutions: We can customize individual program depending different requirements for different customers. Also processing with supplied samples,OEM service are welcomed
4. Warranty:One year Warranty with none human damage.In this period factory will responsible for repair fix it for free or factory will send the new parts to customer instead of the broken parts for free.After warranty time,factory will repair fix it or send the new parts on cost price
5. Quality control: 3 times old test to confirm the products is well quality. 20 technician work together , and learn together , to improve our products. 48 hours working time to test the stability of our product before sending out.
