Product Details:

Place of Origin: China
Brand Name: Altrasonic
Certification: CE
Model Number: HSQ40B-AB

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: USD$980-$1280 per set
Packaging Details: Inner bubble wrap, then put in a carton box
Delivery Time: 8-10 workdays
Payment Terms: Western Union, T/T
Contact Now
Detailed Product Description

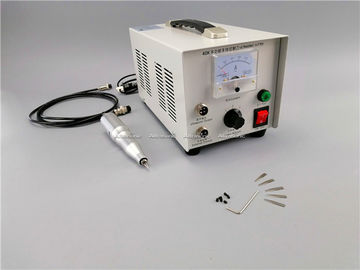

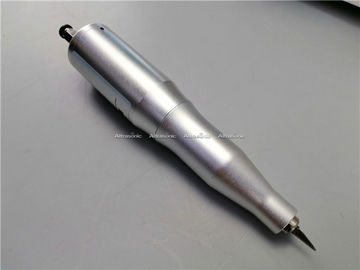

40K Ultrasonic Hand-held Cutting Unit For Cutting of Fabrics, Non-woven Materials, Films



Compact Ultrasonic Cutting Machine For Films , Ultrasonic Fabric Cutting Machine

Compact Ultrasonic Cutting Machine For Films , Ultrasonic Fabric Cutting Machine

Compact Ultrasonic Cutting Machine For Films , Ultrasonic Fabric Cutting MachineCompact Ultrasonic Cutting Machine For Films , Ultrasonic Fabric Cutting Machine



Description:



Different from traditional processing technology, the basic principle of ultrasonic cutting technology is to use an electronic ultrasonic generator to generate ultrasonic waves of a certain range of frequencies, and then through an ultrasonic-mechanical converter placed in the ultrasonic cutting head, the ultrasonic vibration is converted into mechanical vibration of the same frequency, and then amplified by resonance to obtain a large enough amplitude and energy (power) to meet the requirements of cutting the workpiece, and the energy is transmitted to the cutter at the top of the ultrasonic cutting head for cutting processing.



Specification:



Model:HSQ40B-AB

Frequency: 40KHZ

Power supply : ZJS-100L

Output power:40w

Voltage: 220V/110V

Weight :2.5kg

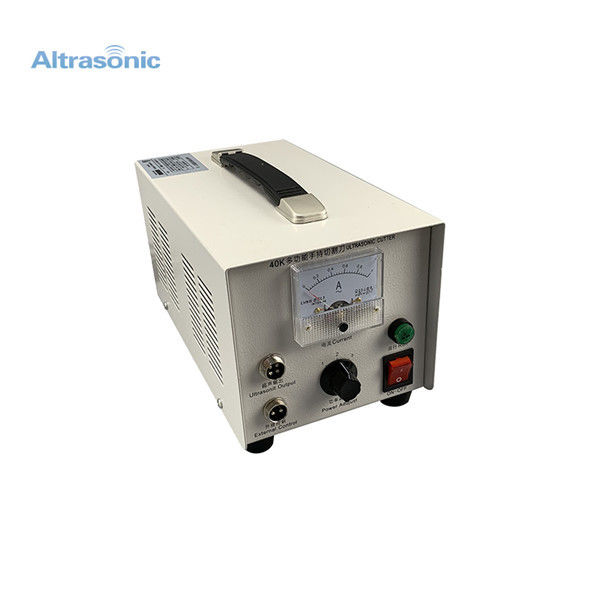

Generator dimension : 155W*265L*170H

Blade diameter: 32*170

Accessory:pedal 1pcs

Blade: single blade(25pcs)or Double blades(10pcs)

1.5mm special hex wrench 1pcs

Connect screw: M3*4L 2 pcs

Cutting thickness :1mm-3mm



Application:



Various textile materials and plastic sheets can be cut by ultrasound, such as natural fibers, synthetic fibers, non-woven fabrics and knitted fabrics can be cut by ultrasound.



Advantage:



1. All kinds of textile materials can be cut by ultrasonic.

2. No pollution: the equipment is only heated to about 50℃, it will not produce smoke and odor, and it also eliminates the danger of injury and fire during cutting.

3. High reliability

4. The cutting is neat: the cutting edge is very neat, and the warp and weft of the fabric will not displaced or detached.

5. Compared with the cold cutting process, when the thermoplastic material been cut, the edge of the slit is fused.



Warranty:



We offer the same warranty as the OEM, namely, one years, free replacement.

Simply ship the broken unit back to arrive within three years of original shipment, and it will be replaced (one time).



Why choose Altrasonic



1. OVERSEA SERVICE TEAM. We now have agents in India, Austrilia, Hongkong, Singapore, Taiwan, Malaysia, Germany, and other country still being discussing.



2. Innovation. Altrasonic R&D and marketing staffs to constantly explore new applications in the field of ultrasound, and the importance of team spirit of cooperation.



3. Half the price, double the value. Every product reach you have been test in our company three times, and with 72 hours continuously working, to confirm it is well before you get it. Also we always learn from foreign company, to upgrade our products.



4. Good components. Ceramic mainly imported from German, and using the superior quality aluminum, titanium raw materials.



5. Individual Customize. We can customize products according to your requirements, Also supply OEM service. Customize ultrasonic solution for different applications.
