Thermoplastic And Fabric Ultrasonic Hand Cutter With Replaceable Knives

China Thermoplastic And Fabric Ultrasonic Hand Cutter With Replaceable Knives supplier
Thermoplastic And Fabric Ultrasonic Hand Cutter With Replaceable Knives supplier Thermoplastic And Fabric Ultrasonic Hand Cutter With Replaceable Knives supplier Thermoplastic And Fabric Ultrasonic Hand Cutter With Replaceable Knives supplier Thermoplastic And Fabric Ultrasonic Hand Cutter With Replaceable Knives supplier Thermoplastic And Fabric Ultrasonic Hand Cutter With Replaceable Knives supplier

Large Image :  Thermoplastic And Fabric Ultrasonic Hand Cutter With Replaceable Knives

Product Details:

Place of Origin: China
Brand Name: Altrasonic
Certification: CE
Model Number: HSQ40B-AB

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: USD$980-$1280 per set
Packaging Details: Inner bubble wrap, then put in a carton box
Delivery Time: 8-10 workdays
Payment Terms: Western Union, T/T
Contact Now
Detailed Product Description

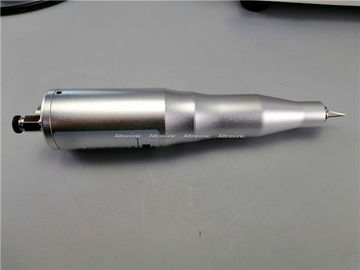

Ultrasonic Hand Cutter with Replaceable Knives for Cutting Thermoplastic and Fabric



Thermoplastic And Fabric Ultrasonic Hand Cutter With Replaceable Knives

Thermoplastic And Fabric Ultrasonic Hand Cutter With Replaceable KnivesThermoplastic And Fabric Ultrasonic Hand Cutter With Replaceable KnivesThermoplastic And Fabric Ultrasonic Hand Cutter With Replaceable Knives



Description:



The purpose of ultrasonic cutting is to use the energy of ultrasonic transducer to heat and melt the part of the cut material so as to cut the material. Therefore, ultrasonic cutting does not require sharp edges, nor does it require a lot of pressure, and it will not cause edge breakage or damage of the material being cut. At the same time, because the cutter is doing ultrasonic vibration, friction resistance is very small, the material is not easy to be cut on the blade.This is especially effective for cutting viscous and elastic materials, such as video, rubber, etc., or objects that do not add pressure.



Specification:

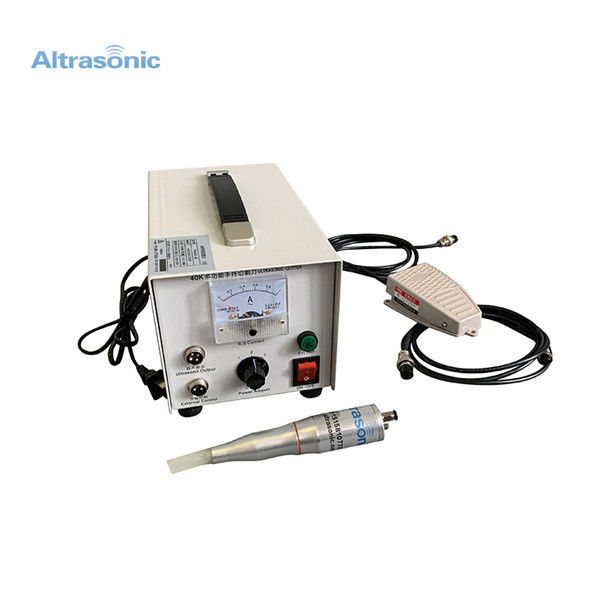

Model:HSQ40B-AB

Frequency: 40KHZ

Power supply : ZJS-100L

Output power:40w

Voltage: 220V/110V

Weight :2.5kg

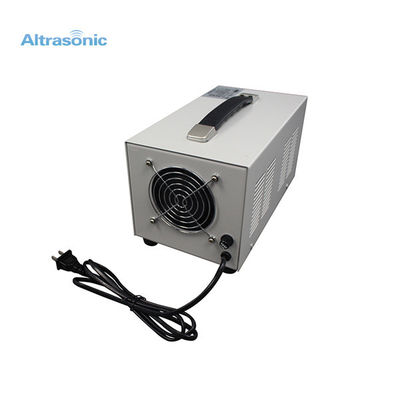

Generator dimension : 155W*265L*170H

Blade diameter: 32*170

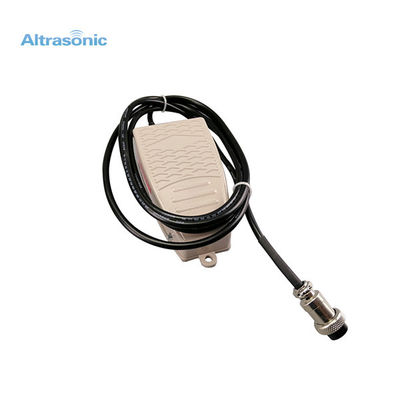

Accessory:pedal 1pcs

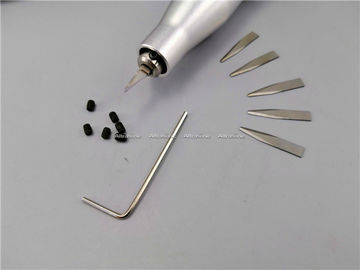

Blade: single blade(25pcs)or Double blades(10pcs)

1.5mm special hex wrench 1pcs

Connect screw: M3*4L 2 pcs

Cutting thickness :1mm-3mm



Application:



Raw rubber, Pipe

Printed circuit board

Industrial cutting

Plastic products cutting

Printing industry cutting

Automotive industry natural fiber segmentation

Deep excavation of synthetic fibers (multi-layer circuit cutting)

Plastic casing cutting

Thin synthetic resin processing

Paper cutting

Bottom film cutting



Advantage:



The cutting speed is greatly improved, and the efficiency of traditional cutting knife is increased by more than 10 times

High power ultrasonic transducer is used as vibration element to ensure long time stable operation

The cutting tool variety is complete, may also customize the related shape cutting tool according to the customer craft

It can produce disc type ultrasonic cutter cutting equipment, realize rolling cutting, suitable for special cutting applications

Can cut all kinds of common cutting tools difficult to cut products, to solve the production and processing problems

High hardness blade can be installed, cutting blade can be replaced, reducing the cost of use

Installation, easy to use, almost unchanged the original cutting process



Warranty:



We offer the same warranty as the OEM, namely, one years, free replacement.

Simply ship the broken unit back to arrive within three years of original shipment, and it will be replaced (one time).



Why choose Altrasonic



1. Cost-benefit, we will work out the best program with reasonable price for you after testing. we also have one year warranty for none human damage, in this period factory will responsible for all damages. After warranty, we will offer repair and new spare parts for customer with economical price.



2. Purchase process is very convenient and efficient, we will deal with customer’s case within 24 hour, and it often take 3-4 days to delivery goods from here to your company via international express. Our general lead time is around 7-15days.



3. Strictly quality control, our product will do 3 times aging test and 48 hours working time for stability test before sending out.
