40k Multi Function Hand Held Ultrasonic Cutter Knife For ABS / PP / PE

China 40k Multi Function Hand Held Ultrasonic Cutter Knife For ABS / PP / PE supplier
40k Multi Function Hand Held Ultrasonic Cutter Knife For ABS / PP / PE supplier 40k Multi Function Hand Held Ultrasonic Cutter Knife For ABS / PP / PE supplier 40k Multi Function Hand Held Ultrasonic Cutter Knife For ABS / PP / PE supplier 40k Multi Function Hand Held Ultrasonic Cutter Knife For ABS / PP / PE supplier 40k Multi Function Hand Held Ultrasonic Cutter Knife For ABS / PP / PE supplier 40k Multi Function Hand Held Ultrasonic Cutter Knife For ABS / PP / PE supplier

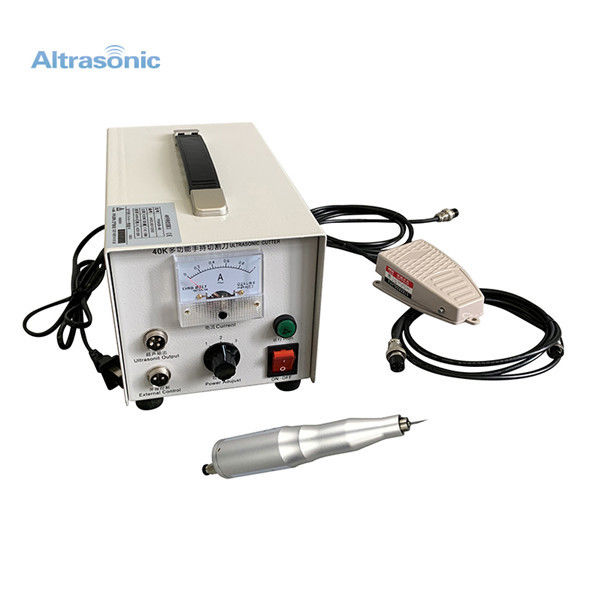

Large Image :  40k Multi Function Hand Held Ultrasonic Cutter Knife For ABS / PP / PE

Product Details:

Place of Origin: China
Brand Name: Altrasonic
Certification: CE
Model Number: HSQ40B-AB

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: USD$980-$1280 per set
Packaging Details: Inner bubble wrap, then put in a carton box
Delivery Time: 8-10 workdays
Payment Terms: Western Union, T/T
Contact Now
Detailed Product Description





40k Ultrasonic Multi-function Hand-held Cutter Knife For ABS,PP,PE



40k Multi Function Hand Held Ultrasonic Cutter Knife For ABS / PP / PE40k Multi Function Hand Held Ultrasonic Cutter Knife For ABS / PP / PE40k Multi Function Hand Held Ultrasonic Cutter Knife For ABS / PP / PE40k Multi Function Hand Held Ultrasonic Cutter Knife For ABS / PP / PE



Description:



Compared with the cold cutting process, when the thermoplastic material been cut, the edge of the slit is fused. Compared to thermal cutting, the use of ultrasonic cutting allows the edges of the cutting fabric to be very soft, avoiding melt shrinkage and excessive edge thickening. Since the ultrasonic waves are heated from the inside of the fabric rather than from the outside, the fabric is not yellowed.



Specification:



Model:HSQ40B-AB

Frequency: 40KHZ

Power supply : ZJS-100L

Output power:40w

Voltage: 220V/110V

Weight :2.5kg

Generator dimension : 155W*265L*170H

Blade diameter: 32*170

Accessory:pedal 1pcs

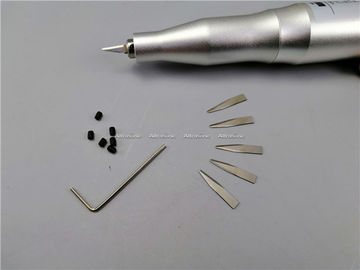

Blade: single blade(25pcs)or Double blades(10pcs)

1.5mm special hex wrench 1pcs

Connect screw: M3*4L 2 pcs

Cutting thickness :1mm-3mm



Application:



  • Aramid Prepreg
  • Boron Prepreg
  • Carbon Phenolic Prepreg
  • Fiberglass Prepreg
  • Graphite Prepreg
  • Hybrid Prepreg
  • Thermoplastic Prepreg
  • Unidirectional Tape
  • Aluminum Core Cured/Uncured Rubber
  • Foam Core Sealant
  • Nomex Core
  • Phenolic Core
  • Woven Fabric
  • Braided Materials



Advantage:



Can replace the blade, improve productivity and save cost

Air cooling device, ensure the continuous working but handle is not hot

Light weight, reduce processing fatigue

Complex and precise cutting can be accomplished with only a slight touch

Large output amplitude, easier cutting



Why Altrasonic?



Global Sales and Distribution Network

Altrasonic have agents in India, Australia, Hongkong, Singapore, Taiwan, Malaysia, Germany, and other country still being discussing. This global network allows Altrasonic to provide fast response to our customers worldwide and guarantees them superior access and ease of doing business.

Customer Support

We have built our business on the principle of being a valued business partner to our customers. Therefore we devote a great deal of time and resources to working with customers to explore new applications, application modifications, and product customizations.

Our Marketplace

Automotive, industrial, medical, chemical, research, food, packaging, toy, appliance, consumer electronics and synthetic textile manufacturers around the world use Altrasonic’s standard or customized equipment to process the full spectrum of commodity, chemical and engineering polymers.
