HandHeld Ultrasonic Cutter Knife Multi - Functional Ultrasonic Cutting Equipment

China HandHeld Ultrasonic Cutter Knife Multi - Functional Ultrasonic Cutting Equipment supplier
HandHeld Ultrasonic Cutter Knife Multi - Functional Ultrasonic Cutting Equipment supplier HandHeld Ultrasonic Cutter Knife Multi - Functional Ultrasonic Cutting Equipment supplier HandHeld Ultrasonic Cutter Knife Multi - Functional Ultrasonic Cutting Equipment supplier HandHeld Ultrasonic Cutter Knife Multi - Functional Ultrasonic Cutting Equipment supplier HandHeld Ultrasonic Cutter Knife Multi - Functional Ultrasonic Cutting Equipment supplier

Large Image :  HandHeld Ultrasonic Cutter Knife Multi - Functional Ultrasonic Cutting Equipment

Product Details:

Place of Origin: China
Brand Name: Altrasonic
Certification: CE
Model Number: HSQ40B-AB

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: USD$980-$1280 per set
Packaging Details: Inner bubble wrap, then put in a carton box
Delivery Time: 8-10 workdays
Payment Terms: Western Union, T/T
Contact Now
Detailed Product Description

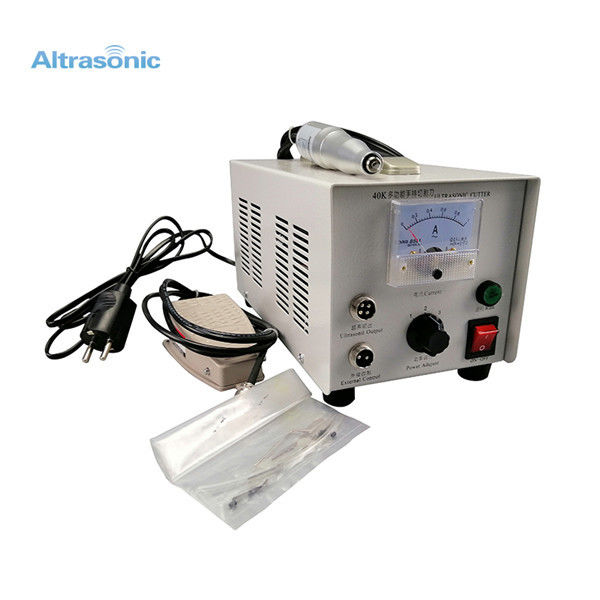

40K Hand Held Ultrasonic Cutter Knife Multi-functional Cutting Machine

HandHeld Ultrasonic Cutter Knife Multi - Functional Ultrasonic Cutting EquipmentHandHeld Ultrasonic Cutter Knife Multi - Functional Ultrasonic Cutting EquipmentHandHeld Ultrasonic Cutter Knife Multi - Functional Ultrasonic Cutting EquipmentHandHeld Ultrasonic Cutter Knife Multi - Functional Ultrasonic Cutting Equipment



Description:



When the ultrasonic generator works, it will generate electromagnetic vibration of 20-40KHZ, and it will be converted into mechanical oscillation by piezoelectric ceramics. This oscillation transmitted to the ultrasonic cutting blade and the cutting material, and heated up from the inside material, then the material is mechanically divided. In contrast to high temperature cutting, ultrasonic waves use mainly mechanical energy rather than thermal energy, less wear on ultrasonic cutting blades.



Specification:



Model:HSQ40B-AB

Frequency: 40KHZ

Power supply : ZJS-100L

Output power:40w

Voltage: 220V/110V

Weight :2.5kg

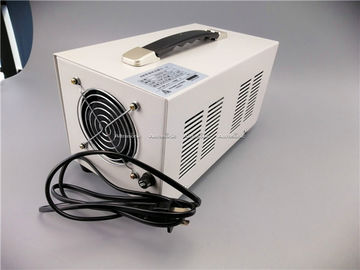

Generator dimension : 155W*265L*170H

Blade diameter: 32*170

Accessory:pedal 1pcs

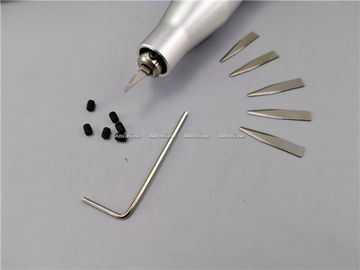

Blade: single blade(25pcs)or Double blades(10pcs)

1.5mm special hex wrench 1pcs

Connect screw: M3*4L 2 pcs

Cutting thickness :1mm-3mm



Application:



Natural fibers

Synthetic fiber

Thin plastic products(Such as plastic film, mobile phone shell)

All types of paper, base film

Rubber, silicone

Repair of printed circuit board copper foil

ABS,PP,PE ( thickness less than 2mm)

Various types of chemical fabrics



Advantage:



1. High cutting accuracy and non-deformation of material

2. Good finish of cutting surface and good bonding performance

3. Fast speed, high efficiency and pollution-free

4. Appropriate amplitude and feeding speed can improve cutting quality

4. The key factors influencing the cutting tool are the knife angle, material, shape and thickness of cutting material.

5. High power

6. Cutting speed depends on the Angle and thickness of the cutting material.
