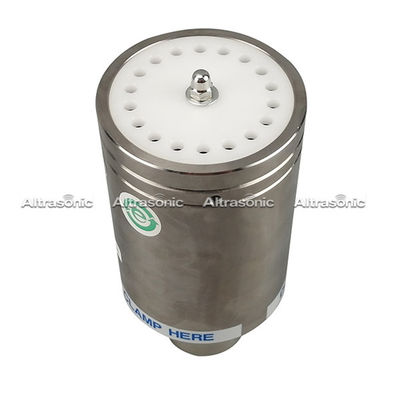

Replacement Branson CJ20 Ultrasonic Welding Transducer With Protect Housing

Replacement Branson CJ20 Ultrasonic Welding Transducer With Protect Housing
Replacement Branson CJ20 Ultrasonic Welding Transducer With Protect Housing Replacement Branson CJ20 Ultrasonic Welding Transducer With Protect Housing Replacement Branson CJ20 Ultrasonic Welding Transducer With Protect Housing Replacement Branson CJ20 Ultrasonic Welding Transducer With Protect Housing

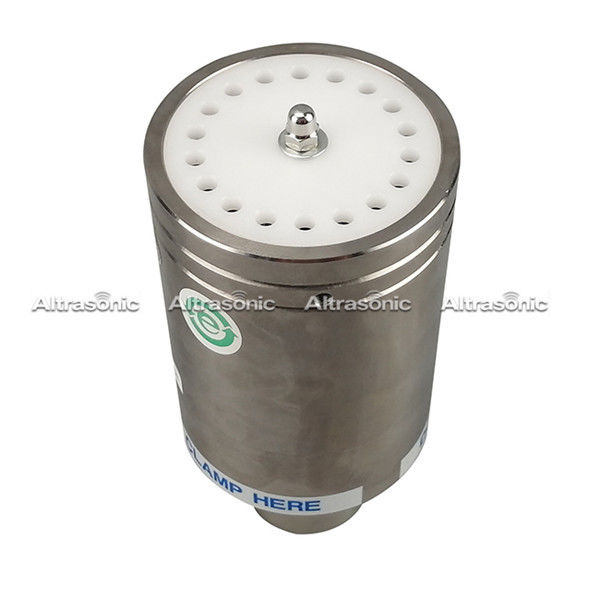

Large Image :  Replacement Branson CJ20 Ultrasonic Welding Transducer With Protect Housing

Product Details:
Place of Origin: China
Brand Name: Altrasonic
Certification: CE
Model Number: Branson CJ20 Replacement
Payment & Shipping Terms:
Minimum Order Quantity: 1PCS
Price: Negotiable
Packaging Details: Packed in carton firstly,and then reinforced with wooden case for outer packing
Delivery Time: 14 working days after receive your payment
Payment Terms: T/T or western Union
Supply Ability: 1,000 units per month

Replacement Branson CJ20 Ultrasonic Welding Transducer With Protect Housing

Description
Product Name: Ultrasonic Welding Transducer Joint Bolt: 1/2-20UNF
Ceramic Diameter: 50mm Capacitance: 20nf
Type: Branson Application: Welding
High Light:

high frequency ultrasonic transducer

,

portable transducer

Replacement Branson CJ20 Ultrasonic Welding Transducer With Protect Housing



Specifications:



Model

Branson CJ20 Replacement

Frequency

20khz

Output power

3300watt

Joint bolt

1/2-20UNF

Ceramic disc Diameter

50 mm

Quantity of Ceramic discs

6pcs

Capacitance

20nf

Amplitude

20um

Application

Welding



Description:



An ultrasonic transducer is an energy conversion device that converts an alternating electrical signal into an acoustic signal or converts an acoustic signal in an external sound field into an electrical signal in an ultrasonic frequency range. It is a key device in ultrasonic technology, and its performance is good or bad. It is directly related to the effect and scope of application of ultrasonic application technology. Due to the wide range of applications of ultrasonic technology and the emergence of new ultrasonic technologies, there are many types of ultrasonic transducers.



Applications:



Ultrasonic welding converts a 50/60 Hz current into 15, 20, 30 or 40 KHz of electrical energy through an ultrasonic generator. The converted high frequency electrical energy is again converted by the transducer into a mechanical motion of the same frequency, and then the mechanical motion is transmitted to the welding head through a set of horn devices that can change the amplitude. The horn transfers the received vibrational energy to the joint of the workpiece to be welded, in which the vibrational energy is converted into thermal energy by friction to melt the plastic. Ultrasound can be used not only to weld hard thermoplastics, but also to fabrics and films.



Ultrasonic welding machine

All material with thermoplasticity can use Ultrasonic welding machine ,

 it can welding the material more easy and stable.Such like plastic, fabric,

 ABS, nonwovens.

Ultrasonic cutting machine

Ultrasonic food cutting is popular because the perfect edge.

Ultrasonic cutting in packing area also welcomed, it can cutting and sealing

 at the same.

Ultrasonic sewing machine

Ultrasonic sewing can sewing the material without any cotton, and keep

 longer time.





Warranty:



We offer the same warranty as the OEM, namely, one years one-time replacement.

Simply ship the broken unit back to arrive within one years of original shipment, and it will be replaced (one

time).



Applied Range:


Replacement ultrasonic converter for Branson model CJ-20 (101-135-059),

for use with all 20KHz 2000 and 2000X actuator and IW systems.



Competitive Advantages:



1. Titanium materials

2. Once assembled, the transducers are aged before testing and final assembly. The properties of piezoelectric materials can change with time and pressure, so a bit of time on the shelf prior to testing will identify nonconforming material.

3. One by one testing to ensure that each transducer performance are excellent.

4. In good heat resistance, can be used in a wide range of temperature with long life and high reliability.



What we can do for you:



1. OEM - special custom-made the ultrasonic transducers or parts for you, and save cost for you.

2. Supply Replacement converter - Including NTK, Branson CJ20, CR20, 922JA..., Dukane 110-3122, Rinco brand and so on.

3. For some special items, you can provide us with samples, then we can give you a competitive price and custom-made it for you.



Replacement Branson CJ20 Ultrasonic Welding Transducer With Protect Housing 0
