Product Details:
|
| High Light: | ultrasonic generator,ultrasound generator |
||
|---|---|---|---|

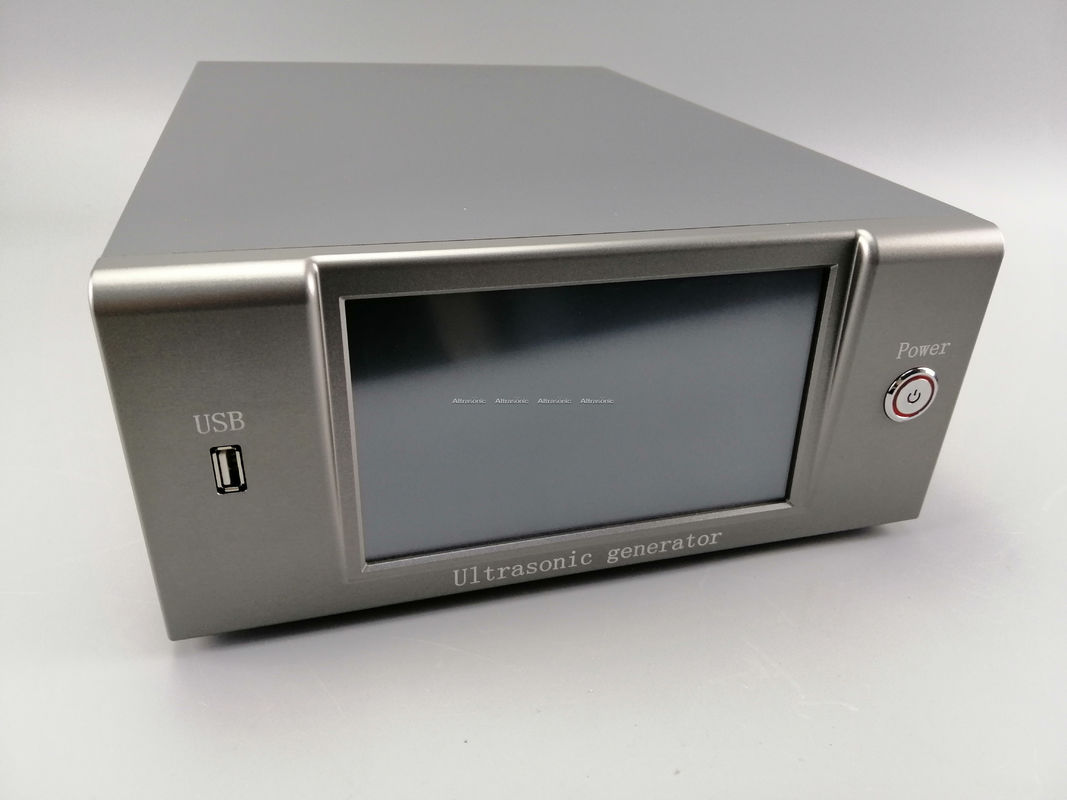

20khz Ultrasonic Electronic Box With PLC Connection Port
Description:
This generator is reliable and stable for operation by using perfect and optimized timely phase-locked loop tracking technique, easy and flexible for operation by quick human-machine interfaces configuration working method.
The power supply is digital, with automatic frequency tracking function, high reliability, with overcurrent, overheating, detuning alarm, digital frequency display.
Specification:
| Model | HS-G2015 |
| Frequency | 20khz |
| Output power | 1500watt |
| Frequency tuning method | Auto tuning |
| Automatic frequency adjustment range | ±2 |
| Power adjustable | 30%-99% |
| Frequency adjustable | 10%-99% |
| Net weight | 10kgs |
| Application | Welding |
Advantage:
1. Use intelligent closed-loop amplitude control technology to achieve the amplitude adjustment,
To input supply voltage and load fluctuations, maintain constant amplitude output.
2. Multiple welding mode switch, which have higher the welding precision, wider the apllication range and better the welding effect.
Application:
1. Ultrasonic cleaning
2. Ultrasonic machining
3. Ultrasonic weight loss
4. Ultrasonic breeding
5. Electronic blood pressure gauge
6. Remote control
7. Range
8. Leakage detection and gas flow monitoring
9. Robot imaging information collection
Comparison:
| Analog generator | Digital generator | |
| Circuit | Analog circuit, discrete components | Digital circuit, the chip control |
| Automatic search | × | ● |
| Automatic frequency tracking | × | ● |
| Frequency adjustment range | ±0.15 KHz | ±0.5 KHz |
| Power regulation | × | ● |
| 24 hours of continuous work | × | ● |
| Non resonant condition | × | ● |
| LCD | × | ● |
| Add the PLC protocol | × | ● |
| Automatic circuit protection | Bad, easy to cause the damage of components | Good |
| Repair method | Professional repair | Module replacement |
