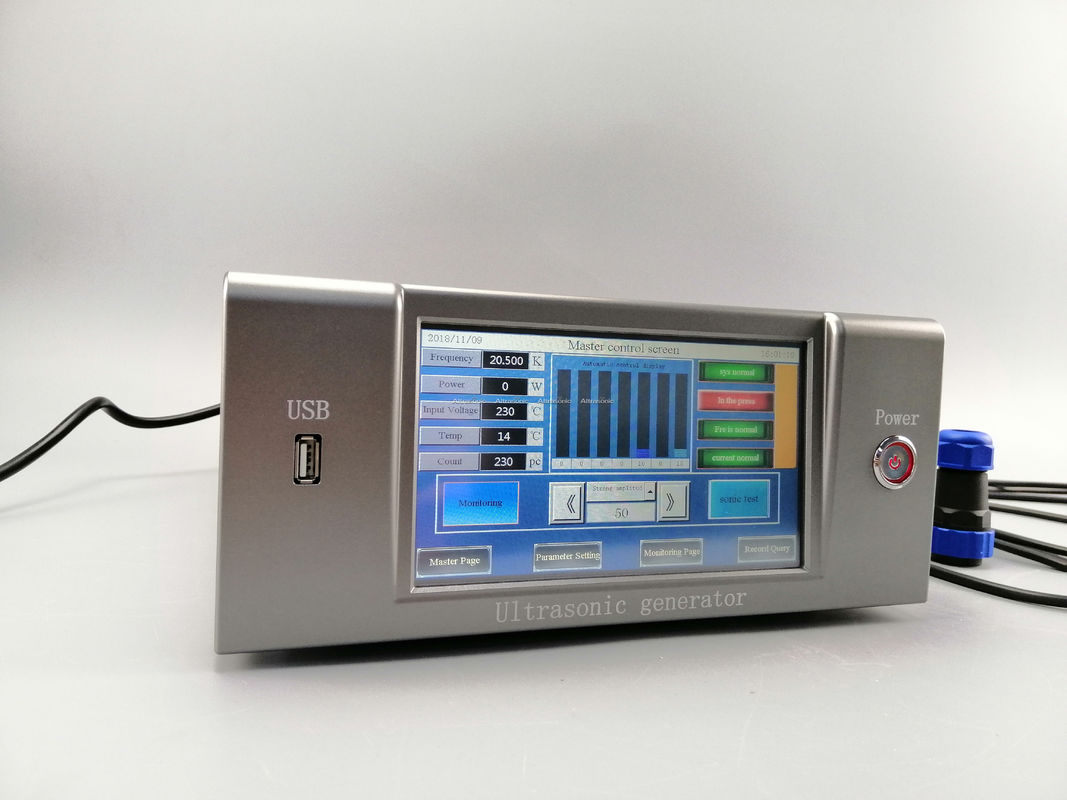

20khz Ultrasonic Driving Power Support PLC Control System
The working principle is to convert 220V, 50/60hz into the high voltage power required frequency of the transducer, use vibrator to convert into mechanical energy, then through vibration transfer to the welding horn and then to the processing material. Make use the air pressure and high frequency friction between working surfaces, the vibrator equiped in vibration tube, and the welding horn fixed external, use air compressor system and control circuit, under the condition that setting in advance, to processing the objects.
1.Amplitude stepless adjustment: Amplitude can instantly increase or decrease in the adjustment process, also can be micro adjusted, large or small parts all can be welded perfectly, effectively reducing wear shock, burns and so on.
2. Capable of monitoring defective products, more suitable for automatic supporting use.
3. The amplitude setting range is 10%-100%.
1.They are divided into industry, agriculture, transportation, life, medical and military according to the applied industry.
2.According to the functions realized, it is divided into ultrasonic processing, ultrasonic cleaning, ultrasonic detection, monitoring, telemetry, remote control, etc.;
3.According to the working environment, it is divided into liquid, gas, biological, etc.;
4.According to the nature, it is divided into power ultrasonic, ultrasonic detection, ultrasonic imaging, etc. .
|Analog generator||Digital generator|
|Circuit||Analog circuit, discrete components||Digital circuit, the chip control|
|Automatic frequency tracking||×||●|
|Frequency adjustment range||±0.15 KHz||±0.5 KHz|
|24 hours of continuous work||×||●|
|Non resonant condition||×||●|
|Add the PLC protocol||×||●|
|Automatic circuit protection||Bad, easy to cause the damage of components||Good|
|Repair method||Professional repair||Module replacement|
