Popular 20khz Ultrasonic Transducer Generator Driving Power Supply Easy To Use

China Popular 20khz Ultrasonic Transducer Generator Driving Power Supply Easy To Use supplier

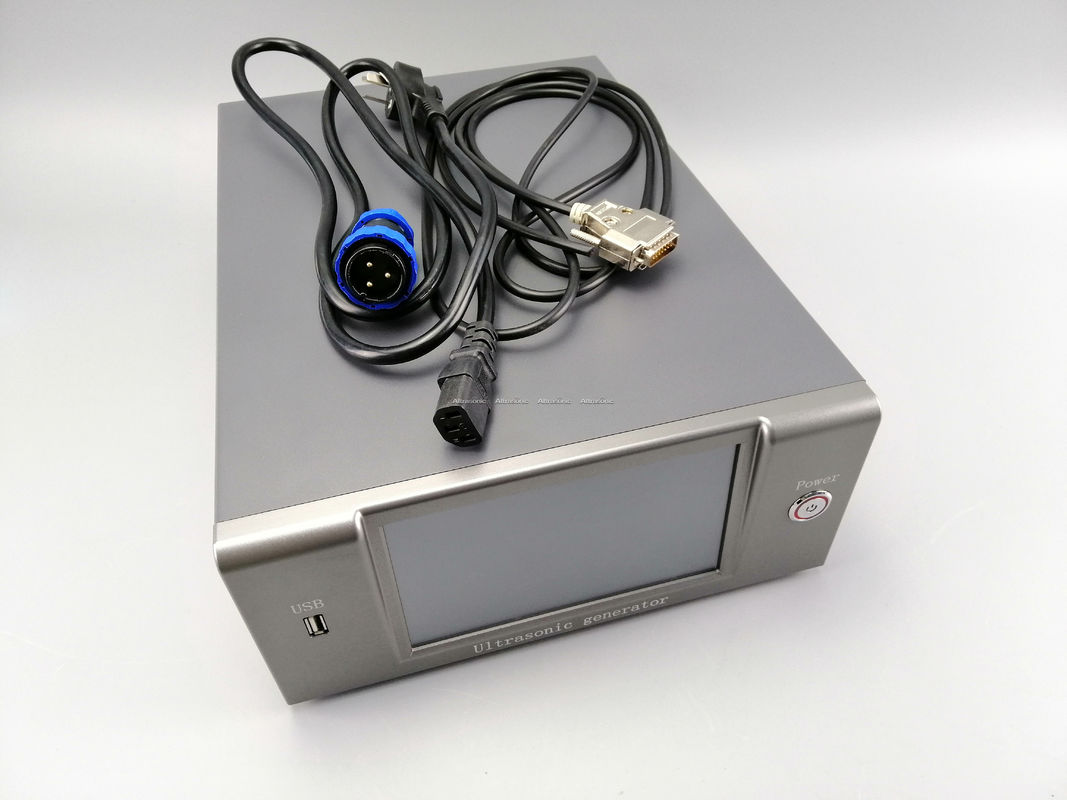

Large Image :  Popular 20khz Ultrasonic Transducer Generator Driving Power Supply Easy To Use

Product Details:

Place of Origin: China
Brand Name: Altrasonic
Certification: CE
Model Number: HS-G2030

Payment & Shipping Terms:

Minimum Order Quantity: 1
Packaging Details: wooden case
Delivery Time: 5 -15 days
Payment Terms: Western Union, T/T
Contact Now
Detailed Product Description

20khz Ultrasonic Driving Power With PLC Connection Port

Popular 20khz Ultrasonic Transducer Generator Driving Power Supply Easy To UsePopular 20khz Ultrasonic Transducer Generator Driving Power Supply Easy To UsePopular 20khz Ultrasonic Transducer Generator Driving Power Supply Easy To Use

Description:



Ultrasonic generator generate a signal frequency which ultrasonic transducer needed, then use plastic thermalplastic and use high frequency friction between work junctions to make the intermolecular generate heat rapidly, when the heat enough to melt the material, ultrasonic vibration stop, the melted work piece surface solidify, the processing is completed. The frequency adjustment of traditional ultrasonic generator is by manual, but automatic frequency generator can achieve frequency automatic tracking, real-time power display, man-machine interface friendly communication!

The frequencies commonly used for plastic processing are 15KHz and 20KHz, of which 20KHz is outside the range of human hearing, so it is called ultrasonic, but 15KHz is still in the range of human hearing.



Specification:



Model HS-G2040
Frequency 20khz
Output power 4000watt
Frequency tuning method Auto tuning
Automatic frequency adjustment range ±2
Power adjustable 30%-99%
Frequency adjustable 10%-99%
Net weight 10kgs
Application Welding



Advantage:



Automatic frequency tracking:

1. Digital frequency synthesis technology combined with digital phase-locked loop frequency tracking, eliminate the drift factors of temperature, static load, machining area, tool wear and other factors, overcome the insurmountable disadvantages of conventional analog generator.

  • Conducive parameter adjustment, easy modification by software, easily adjust the control scheme and achieve a variety of new control strategies.
  • Strong output: The use of IGBT power modules with separately excited oscillating circuit structure, the output power is more than 1.5 times that of conventional self-excited circuit.



Application:



1. Ultrasonic cleaning

2. Ultrasonic machining

3. Ultrasonic weight loss

4. Ultrasonic breeding

5. Electronic blood pressure gauge

6. Remote control

7. Range

8. Leakage detection and gas flow monitoring

9. Robot imaging information collection



Comparison:



  Analog generator Digital generator
Circuit Analog circuit, discrete components Digital circuit, the chip control
Automatic search ×
Automatic frequency tracking ×
Frequency adjustment range ±0.15 KHz ±0.5 KHz
Power regulation ×
24 hours of continuous work ×
Non resonant condition ×
LCD ×
Add the PLC protocol ×
Automatic circuit protection Bad, easy to cause the damage of components Good
Repair method Professional repair Module replacement
