Small Size Ultrasonic Cutting Machine Ultrasonic Cutting Device For Automative Carpet

Small Size Ultrasonic Cutting Machine Ultrasonic Cutting Device For Automative Carpet
Small Size Ultrasonic Cutting Machine Ultrasonic Cutting Device For Automative Carpet Small Size Ultrasonic Cutting Machine Ultrasonic Cutting Device For Automative Carpet Small Size Ultrasonic Cutting Machine Ultrasonic Cutting Device For Automative Carpet

Large Image :  Small Size Ultrasonic Cutting Machine Ultrasonic Cutting Device For Automative Carpet

Product Details:
Place of Origin: China
Brand Name: Altrasonic
Certification: CE
Model Number: HS-C30
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: $45-$2800
Packaging Details: wooden case
Delivery Time: 10-15days
Payment Terms: Western Union, MoneyGram, T/T, L/C
Supply Ability: 1000sets per month

Small Size Ultrasonic Cutting Machine Ultrasonic Cutting Device For Automative Carpet

Description
High Light:

ultrasonic cutting knife

,

ultrasonic cutting devices



30K Robotic Ultrasonic Cutting for Automative Carpet



Description:

Ultrasonic cutting uses ultrasonic energy to slice through objects. The edge of the instrument is blunt in comparison to other cutting methods, and actually creates a fusion effect after cutting an object.

An electric pulse is sent through the cutter, creating microscopic vibrations in the blade. These vibrations are so small they cannot be seen or felt. The energy from the vibrations slices through an object with very little pressure required.



Specification:



Model HS-C30
Frequency 30KHZ
Output Power 200W
Generator Digital generator, 452 x 180 x 100mm
Handle Φ44×220

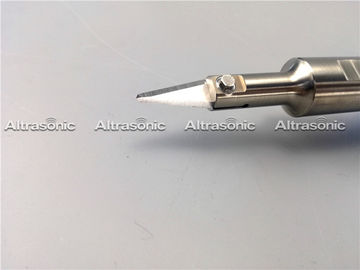

Size of cutter Blade replaceable
Length of cable 3M
Outer skin Aluminum
Weight 8KG
Voltage 220V / 110V

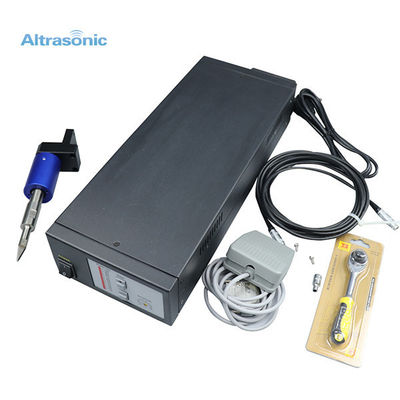

Accessory Foot switch 1pc;Cut blade 2pcs;
1.5mm special hex wrench 1pc;Screw M3×4L 2pcs
Material of blade titanium alloy, stainless steel



Advantages:



There are numerous benefits of ultrasonic cutting in industrial applications. Some of the main benefits include:
1.Produces a fusion effect for neat cuts, especially in viscous materials
2.Can be used for many different types of materials
3.Creates finely finished and structured objects
4.Emits less heat compared to other industrial cutting methods
5.Vibration enables various shapes for cutting holes
6.Ultrasonic Cutters do not emit noise, smoke and cause air contamination. Thus, ultrasonic cutting is an environment- friendly processing method.
7.Ultrasonic Cutters are small in size and do not require large installation areas. Special equipment is not required for the installation. Ultrasonic Cutters are small enough to be hand-held for many operations.
8.Ultrasonic Cutters can also be attached to automated machinery arms. Although they may not be familiar to you, they play an active role in the manufacturing processes of various industrial products which we use daily.



Applications:



Low pressure mold trimming

Non-woven carpet/fabric cutting

Instrument panel kiss cutting

Molded plastic part flash trimming and edge chamfering

Aerospace component routing



Why Altrasonic?



1. Cost-benefit, we will work out the best program with reasonable price for you after testing. we also have one year warranty for none human damage, in this period factory will responsible for all damages. After warranty, we will offer repair and new spare parts for customer with economical price.

2. Purchase process is very convenient and efficient, we will deal with customer’s case within 24 hour, and it often take 3-4 days to delivery goods from here to your company via international express. Our general lead time is around 7-15days.

3. Strictly quality control, our product will do 3 times aging test and 48 hours working time for stability test before sending out.



Small Size Ultrasonic Cutting Machine Ultrasonic Cutting Device For Automative Carpet 0Small Size Ultrasonic Cutting Machine Ultrasonic Cutting Device For Automative Carpet 1Small Size Ultrasonic Cutting Machine Ultrasonic Cutting Device For Automative Carpet 2

Small Size Ultrasonic Cutting Machine Ultrasonic Cutting Device For Automative Carpet 3Small Size Ultrasonic Cutting Machine Ultrasonic Cutting Device For Automative Carpet 4
