Product Details:
|
| Product Name: | 40khz 500w Ultrasound Converter | Frequency: | 40Khz |
|---|---|---|---|
| Power: | 500W | Connect Screw: | M8 |
| Ceramic Diameter: | 25 Mm | Qty Of Ceramic: | 4pcs |
| Capacitance: | 4.5 -5.3 Nf | Application: | Welding |
| Finish: | Depending On Customer's Requirements | ||
| High Light: | high frequency ultrasonic transducer,portable transducer |
||

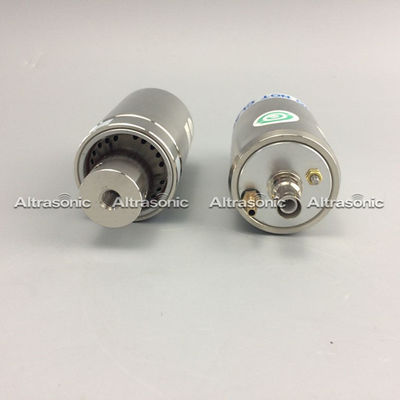

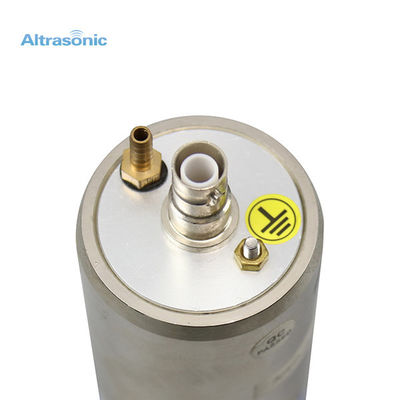

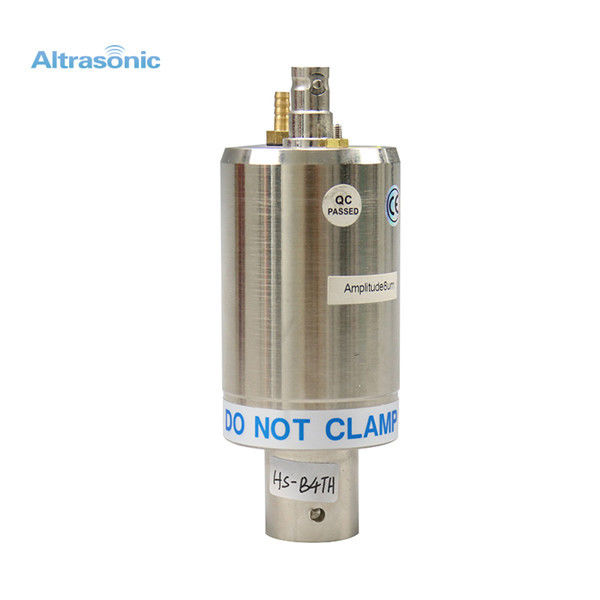

40kHz 500W Ultrasonic Welding Transducer Replacement Converter For Branson 4TH 25mm
Specification:
| Model | HS-B4TH |
| Frequency | 40 khz |
| Output power | 500 watt |
| Joint bolt | M8 |
| Ceramic disc Diameter | 25 mm |
| Quantity of Ceramic discs | 4 pcs |
| Capacitance | 4.5 -5.3 nf |
| Amplitude | 6 um |
| Application | welding machine |
Description:
The Replacement Converter for Branson 4TH Direct replacement for the Branson 4TH that
delivers lower cost, rugged quality and superior value.
First, all of the parts are all new.
The parts are made from certified materials in tightly controlled manufacturing processes, assembled and tested in a climate-controlled environment using carefully calibrated equipment, then properly aged and re-tested to ensure performance tha2t duplicates the OEM part.
Applied Range:
Replacement ultrasonic converter for Branson model 4TH, for use with 40KHz welding machine.
Competitive Advantage:
1. Titanium materials and Aluminum materials optional.
2. Once assembled, the transducers are aged before testing and final assembly. The properties of piezoelectric materials can change with time and pressure, so a bit of time on the shelf prior to testing will identify nonconforming material.
3. One by one testing to ensure that each transducer performance are excellent.
4. In good heat resistance, can be used in a wide range of temperature with long life and high reliability.
What we can do for you:
1. OEM - special custom-made the ultrasonic transducers or parts for you, and save cost for you.
2. Supply Replacement converter - Including NTK, Branson CJ20, CR20, 922JA..., Dukane 110-3122, Rinco brand and so on.
3. For some special items, you can provide us with samples, then we can give you a competitive price and custom-made it for you.
Warranty:
We offer the same warranty as the OEM, namely, three years one-time replacement.
Simply ship the broken unit back to arrive within three years of original shipment, and it will be replaced (one time).
Ultrasonic Converters and Ultrasonic Transducers are one in the same. There is one Ultrasonic OEM, Dukane Corporation, that uses the term Transducer. All of the other ultrasonic OEM manufactures such as Branson, Sonics and Materials, Rinco, Telesonics and Herrmann refer to these as Converters or Konverters.
Converters or Transducers all do the same thing…convert electrical energy to mechanical movement…so we have our electrical charge being introduced across the surface of the ceramics at the desired frequency which in turn gives us a movement or vibration at the working end on the converter.
The converter is threaded onto a booster, which increases, decreases or just transfers the amount of movement from the face of the converter to the horn or Sonotrode as we call it.
| Ultrasonic welding machine |
All material with thermoplasticity can use Ultrasonic welding machine , it can welding the material more easy and stable.Such like plastic, fabric, ABS, nonwovens. |
| Ultrasonic cutting machine |
Ultrasonic food cutting is popular because the perfect edge. Ultrasonic cutting in packing area also welcomed, it can cutting and sealing at the same. |
| Ultrasonic sewing machine |
Ultrasonic sewing can sewing the material without any cotton, and keep longer time. |
Tag: ultrasonic piezoelectric transducer, high frequency ultrasonic transducer
