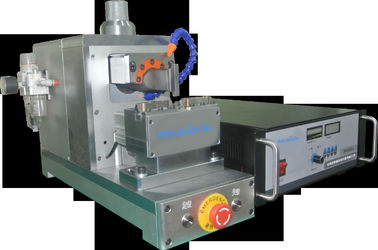

Small Size 5000W Ultrasonic Metal Welding Machine For Hydride Battery , Cables

China Small Size 5000W Ultrasonic Metal Welding Machine For Hydride Battery , Cables supplier
Small Size 5000W Ultrasonic Metal Welding Machine For Hydride Battery , Cables supplier Small Size 5000W Ultrasonic Metal Welding Machine For Hydride Battery , Cables supplier

Large Image :  Small Size 5000W Ultrasonic Metal Welding Machine For Hydride Battery , Cables

Product Details:

Place of Origin: China
Brand Name: Altrasonic
Certification: CE
Model Number: HS-D2050A

Payment & Shipping Terms:

Minimum Order Quantity: 1 unit
Price: Negotiation
Packaging Details: Wooden case
Delivery Time: 15 workdays
Payment Terms: T/T, Western Union
Supply Ability: 200 sets per month
Contact Now
Detailed Product Description
Power: 5000w Frequency: 20khz
Input Voltage: 220VAC Or 110VAC Materials Of Horn: Special Steel



5000W Ultrasonic Metal Welding Machine for hydride battery







Advantage of Ultrasonic metal welding:



  • No need solder and external heating, does not deform due to heat, does not have the residual

          stress, not only welding same metal, but also can weld between the different metals.

  • Suitable for non-melting, non-fragile metal materials, good electrical conductivity after welding,

           extremely low or nearly zero resistivity. low requirements for welding metal surface, and also be

           suitable for oxidation or electroplating.

  • Short welding time, no flux, no gas,no solder, no spark, environmental protection and safety.
  • Unique structure design, easy welding head changing.
  • Imported qualified components to ensure the stable operation of equipment.

Small Size 5000W Ultrasonic Metal Welding Machine For Hydride Battery , Cables



Specification:



Model HS-D2020A HS-D2030A HS-D2050A
Power 2000W 3000W 5000W
Working air pressure 0.05-0.9MPa 0.05-0.9MPa 0.05-0.9MPa
Frequency 20kHz 20kHz 20kHz
Voltage 220V 220V 380V
Weight 55KGs 60KGs 88KGs
Working head Size 550*280*380mm 550*280*430mm 550*380*660mm
Machine Size 540*380*150mm 540*380*150mm 540*380*150mm







Application:

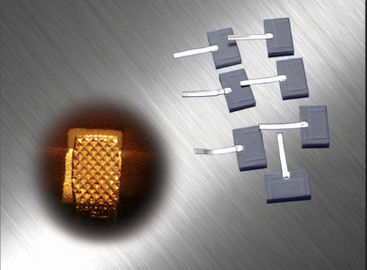

● Power battery, negative electrode welding, nickel-metal hydride battery and nickel plate welding

● Lithium battery, polymer battery copper foil and nickel sheet welding, aluminum foil and aluminum sheet       welding, aluminum sheet and nickel sheet welding

● Wire, cable and various electronic components, contacts, connectors, terminal welding

● The high current contact, such as electromagnetic switch, no fuse switch etc, welding of different metal          sheet

● International quality components to ensure the stable operation of equipment





Small Size 5000W Ultrasonic Metal Welding Machine For Hydride Battery , Cables



Small Size 5000W Ultrasonic Metal Welding Machine For Hydride Battery , Cables









Small Size 5000W Ultrasonic Metal Welding Machine For Hydride Battery , Cables



Small Size 5000W Ultrasonic Metal Welding Machine For Hydride Battery , Cables







Comparison of various welding methods:



● Argon arc welding, resistance welding, current welding, intermediate frequency welding, high frequency

welding and other such welding are welding. It melts the metal together at high temperature and has changed the original properties of materials



● The laser welding principle is the same as above, relying on high-temperature fusion welding, but can be precise spot welding, note that it is a point can not be area welding



● Ultrasonic welding principle is high frequency friction welding, close to cold welding, it is the best electrical connection welding process at present, for the destruction of the parent material, until now there is no international found that a welding process can be compared with ultrasonic welding



● For the specific industry, ultrasonic welding has the advantage of no competition



● Our company independently developed quality control system, with three basic control modes of welding energy, time and height, and a variety of quality control software to meet different demands.Other domestic companies basically do not have the welding energy control mode, only simple time control



Small Size 5000W Ultrasonic Metal Welding Machine For Hydride Battery , Cables









Small Size 5000W Ultrasonic Metal Welding Machine For Hydride Battery , CablesThe mutual fusibility of the figure above is for reference only, the actual specific should be given by the experiment.







Small Size 5000W Ultrasonic Metal Welding Machine For Hydride Battery , CablesSmall Size 5000W Ultrasonic Metal Welding Machine For Hydride Battery , CablesSmall Size 5000W Ultrasonic Metal Welding Machine For Hydride Battery , CablesSmall Size 5000W Ultrasonic Metal Welding Machine For Hydride Battery , Cables
