Environmental Freind Ultrasonic Welder Fast Lithium Battery Welding Copper And Nickle Foil

China Environmental Freind Ultrasonic Welder Fast Lithium Battery Welding Copper And Nickle Foil supplier
Environmental Freind Ultrasonic Welder Fast Lithium Battery Welding Copper And Nickle Foil supplier Environmental Freind Ultrasonic Welder Fast Lithium Battery Welding Copper And Nickle Foil supplier Environmental Freind Ultrasonic Welder Fast Lithium Battery Welding Copper And Nickle Foil supplier

Large Image :  Environmental Freind Ultrasonic Welder Fast Lithium Battery Welding Copper And Nickle Foil

Product Details:

Place of Origin: China
Brand Name: Altrasonic
Certification: CE
Model Number: HS-D2020A

Payment & Shipping Terms:

Minimum Order Quantity: 1 unit
Price: Negotiation
Packaging Details: Wooden case
Delivery Time: 15 workdays
Payment Terms: T/T, Western Union
Supply Ability: 200 sets per month
Contact Now
Detailed Product Description
Power: 2000w Frequency: 20khz
Input Voltage: 220VAC Or 110VAC Materials Of Horn: Special Steel



Lithium battery welding, copper foil and nickle sheet welding --- Ultrasonic Metal Welding Machine





Advantage of Ultrasonic metal welding:



  • No need solder and external heating, does not deform due to heat, does not have the residual

          stress, not only welding same metal, but also can weld between the different metals.

  • Suitable for non-melting, non-fragile metal materials, good electrical conductivity after welding,

           extremely low or nearly zero resistivity. low requirements for welding metal surface, and also be

           suitable for oxidation or electroplating.

  • Short welding time, no flux, no gas,no solder, no spark, environmental protection and safety.
  • Unique structure design, easy welding head changing.
  • Imported qualified components to ensure the stable operation of equipment.

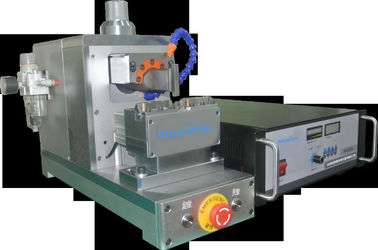

Environmental Freind Ultrasonic Welder Fast Lithium Battery Welding Copper And Nickle Foil



Specification:



Model HS-D2020A HS-D2030A HS-D2050A
Power 2000W 3000W 5000W
Working air pressure 0.05-0.9MPa 0.05-0.9MPa 0.05-0.9MPa
Frequency 20kHz 20kHz 20kHz
Voltage 220V 220V 380V
Weight 55KGs 60KGs 88KGs
Working head Size 550*280*380mm 550*280*430mm 550*380*660mm
Machine Size 540*380*150mm 540*380*150mm 540*380*150mm







Application:



● Power battery, negative electrode welding, nickel-metal hydride battery and nickel plate welding

● Lithium battery, polymer battery copper foil and nickel sheet welding, aluminum foil and aluminum sheet       welding, aluminum sheet and nickel sheet welding

● Wire, cable and various electronic components, contacts, connectors, terminal welding

● The high current contact, such as electromagnetic switch, no fuse switch etc, welding of different metal          sheet

● International quality components to ensure the stable operation of equipment





Environmental Freind Ultrasonic Welder Fast Lithium Battery Welding Copper And Nickle Foil



Environmental Freind Ultrasonic Welder Fast Lithium Battery Welding Copper And Nickle Foil

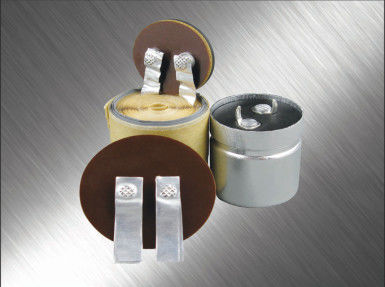

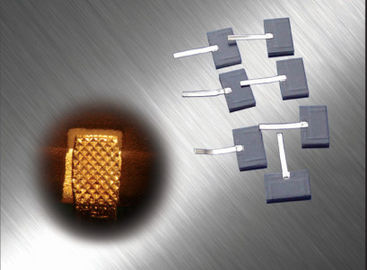

Applied in lithium ion Battery Tab Welding Machine, anode with tab, tab and aluminum plate, polymer battery multilayer copper foil, aluminum foil and ear welding, aluminum and nickel are connected.

Suit for lithium ion battery at the bottom of the aluminum and aluminum welding nickel composite belt, with a special fixture.



There are many materials joining requirements in battery manufacture. Depending on the size, type, and capacity, these include both internal and tab-to-terminal connections, can and fill plug sealing, and external connections. Several joining options can be considered including ultrasonic , resistance, and laser welding. Ultrasonic welding is most often used to join the internal electrode battery materials which are typically constructed of thin foils of copper and aluminum. The remaining joins - including connections inside the can, and external terminal tab connections - are suited to both resistance and laser welding. The decision to use one technology or the other is determined both by the type of weld required and production requirements. Laser welding is the joining technology of choice for can and plug applications (seam sealing).













   Environmental Freind Ultrasonic Welder Fast Lithium Battery Welding Copper And Nickle Foil









Environmental Freind Ultrasonic Welder Fast Lithium Battery Welding Copper And Nickle FoilEnvironmental Freind Ultrasonic Welder Fast Lithium Battery Welding Copper And Nickle FoilEnvironmental Freind Ultrasonic Welder Fast Lithium Battery Welding Copper And Nickle FoilEnvironmental Freind Ultrasonic Welder Fast Lithium Battery Welding Copper And Nickle Foil
