Durable Ultrasonic Metal Welding Machine Automotive Wire Harness Welding Revolution

China Durable Ultrasonic Metal Welding Machine Automotive Wire Harness Welding Revolution supplier
Durable Ultrasonic Metal Welding Machine Automotive Wire Harness Welding Revolution supplier Durable Ultrasonic Metal Welding Machine Automotive Wire Harness Welding Revolution supplier Durable Ultrasonic Metal Welding Machine Automotive Wire Harness Welding Revolution supplier Durable Ultrasonic Metal Welding Machine Automotive Wire Harness Welding Revolution supplier

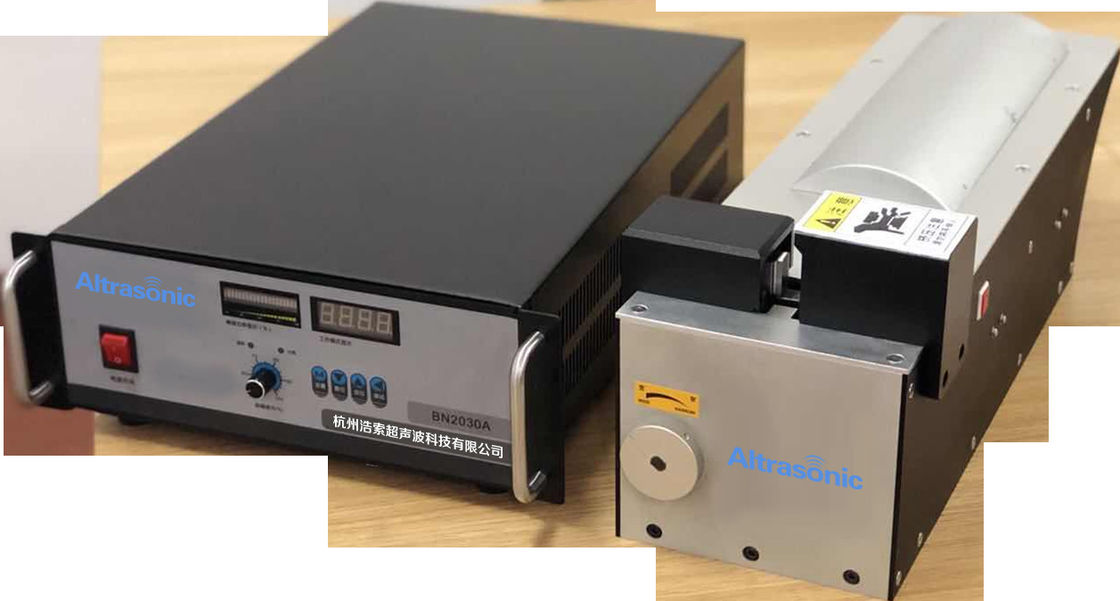

Large Image :  Durable Ultrasonic Metal Welding Machine Automotive Wire Harness Welding Revolution

Product Details:

Place of Origin: China
Brand Name: Altrasonic
Certification: CE
Model Number: HS-X2040A

Payment & Shipping Terms:

Minimum Order Quantity: 1 unit
Price: Negotiation
Packaging Details: Wooden case
Delivery Time: 15 workdays
Payment Terms: T/T, Western Union
Supply Ability: 100 sets per month
Contact Now
Detailed Product Description
Power: 4000w Frequency: 20khz
Generator: Digital Generator Input Voltage: 220V
Components: Digital Generator, Transducer, Booster, Welding Horn Weight: 28KGS
Welding Area: 1-30mm² Working Air Pressure: 0.05-0.9Mpa





Automotive wire harness welding revolution, 20Khz ultrasonic metal welding machine





Description:



Altrasonic ultrasonic wire splicer can be used for welding of metal wires, cooper and aluminum wires, pre-crimped wire, metal stranded wire, terminal, wire/conductor for battery etc. It can be widely used for applications like car, electronics, generator, communication devices, instrument and etc.





Specification:





Durable Ultrasonic Metal Welding Machine Automotive Wire Harness Welding Revolution








Advantages:



1. Can be operated easily, no need for professions thus low labor cost.

2. Automatic program for welding process, high production efficiency.

3. Optimized welding process, no need of accessory material for welding, fast welding speed, and high energy efficiency.

4. Electronic protection circuit for safety;easy to operate

5. Compact design, advances structural design makes this machine light and portable

6. Welding tip with high quality steel, robust and durable





What is the difference between Ultrasonic metal welding machine and ultrasonic plastic welding machine ?



Firstly, the way of working is not the same. Generally, the vibration direction of the welding head in the ultrasonic plastic welding is perpendicular to the welding position. In the ultrasonic metal welding machine, the vibration direction of the welding head is parallel to the welding position. In some special cases, plastic welding can also be used in parallel directions, such as thinner plastic parts.



High power capacity, stable ultrasonic generator:

The first requirement for a stable ultrasonic generator is frequency automatic tracking. Frequency automatic tracking can ensure that the transducer system can work in resonance, that is, the welding head amplitude is maximized. The use of frequency automatic tracking technology, the replacement of molds and work without the need for FM, is the basic requirements for metal welding. A device with manually adjustable frequency adjustable inductance can basically meet the requirements.



Secondly, due to the application of metal welding machines to welding metals, higher requirements are placed on ultrasonic welding technology. Compared to ordinary plastic welding, the requirements for power capacity, power density, stability, and automatic control are not the same. level. Domestic ultrasonic plastic welding generators are basically self-excited circuits, typically represented by full-bridge circuits and half-bridge circuits commonly used in Taiwanese machines. The distinctive feature is a tuned inductor. If the existing mature technology for plastic welding is directly transferred to metal welding, its technical innateness will lead to unstable use of the product; its only advantage is that the price is cheap, but for the high requirements of the metal welding itself, This advantage is very pale.



The stable ultrasonic generator also requires: constant amplitude function and amplitude stepless adjustment. Constant amplitude function, which can ensure the consistency of welding, is the key to stable production; stepless adjustment of the amplitude is the basic to ensure the use of equipment, such as the ability to weld copper and weld aluminum materials on the same equipment through parameter adjustment.



High power capacity: Metal welding machines require high energy density relative to plastic welding machines and must have relatively high power capacity. For example, a 20 kHz machine requires basically more than 3000 W of power capacity. Many companies often have false claims for power capacity, so we only need to compare them with the plastic welding machines they do, because plastic welding machines are too high to be believed.



1. High-quality welding heads: Metal welding, as an industrial application, inevitably requires a long-life welding head.

2. High-quality control system: It has three basic control modes: welding energy, time, and altitude. A variety of quality control software meets different requirements.

3. Metal welding machines use high-quality transducers such as 20kHz transducers that must be able to withstand more than 3kw of load for long periods of time. Many companies' transducers use ordinary plastic welding transducers and are difficult to distinguish in appearance. This is irresponsible.



Why choose Altrasonic ?



OVERSEA SERVICE TEAM. We now have agents in India, Austrilia, Hongkong, Singapore, Taiwan, Malaysia, Germany, and other country still being discussing.

Innovation. Altrasonic R&D and marketing staffs to constantly explore new applications in the field of ultrasound, and the importance of team spirit of cooperation.


Half the price, double the value. Every product reach you have been test in our company three times, and with 72 hours continous working, to confirm it is well before you get it. Also we always learn from foreign company, to
upgrade our products.

Good components. Ceramic mainly imported from German, and using the superior quality aluminum, titanium raw materials.

Individual Customize. We can customize products according to your requirements, Also supply OEM service.

Customize ultrasonic solution for different applications.







Automotive wire harness welding revolution, 20Khz ultrasonic metal welding machine
