Mini Altrasonic Harness Ultrasonic Metal Welding Machine For Big Area Welding

China Mini Altrasonic Harness Ultrasonic Metal Welding Machine For Big Area Welding supplier
Mini Altrasonic Harness Ultrasonic Metal Welding Machine For Big Area Welding supplier Mini Altrasonic Harness Ultrasonic Metal Welding Machine For Big Area Welding supplier Mini Altrasonic Harness Ultrasonic Metal Welding Machine For Big Area Welding supplier

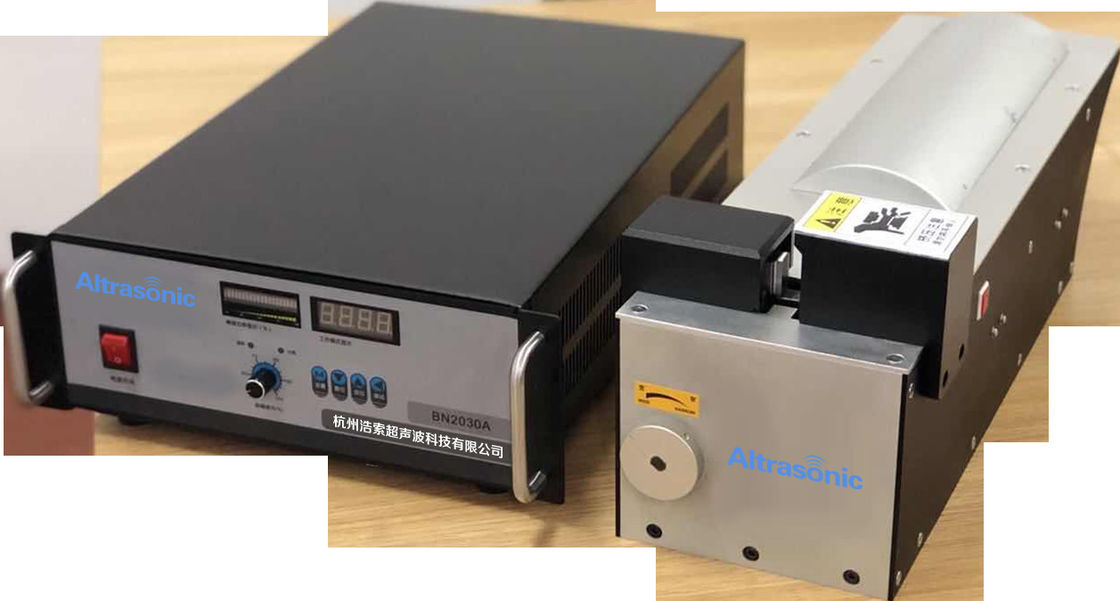

Large Image :  Mini Altrasonic Harness Ultrasonic Metal Welding Machine For Big Area Welding

Product Details:

Place of Origin: China
Brand Name: Altrasonic
Certification: CE
Model Number: HS-X2030A

Payment & Shipping Terms:

Minimum Order Quantity: 1 unit
Price: Negotiation
Packaging Details: Wooden case
Delivery Time: 15 workdays
Payment Terms: T/T, Western Union
Supply Ability: 200 sets per month
Contact Now
Detailed Product Description
Power: 3000w Frequency: 20khz
Generator: Digital Generator Voltage: 220V
Components: Digital Generator, Transducer, Booster, Welding Horn Materials Of Horn: Special Steel
Welding Area: 0.5-20mm²



Altrasonic Ultrasonic Harness Welding Machine, Big Area Welding, Make It Possible





Description:



Altrasonic ultrasonic harness welding machine can be used for welding of metal wires, cooper and aluminum wires, pre-crimped wire, metal stranded wire, terminal, wire/conductor for battery etc. It can be widely used for applications like car, electronics, generator, communication devices, instrument and etc.





Specification:



Model No# HS-X2020A HS-X2030A HS-X2040A
Power 2000W 3000W 4000W
Welding area 0.5-16mm² 0.5-20mm² 0.5-30mm²
Working air pressure 0.05-0.9Mpa 0.05-0.9Mpa 0.05-0.9Mpa
Frequency 20Khz 20Khz 20Khz
Volotage 220V 220V 220V
Weight 18KGS 22KGS 28KGS
Working head  size 530*210*230mm 550*220*240mm 550*250*240mm





Advantages:



1. Equipment power is divided into 2000W,3000W,4000W, one-time welding molding, big welding area.

2. Integrated design, advanced equipment structure, small size and light weight, beautiful appearance, easy to move; PLL phase-locked frequency tracking technology is adopted to ensure the welding effect between harness and harness, harness and terminal end plate.

3.Cost reduction, good electrical conductivity after welding, low or almost zero resistance coefficient shorting welding time without any flux, gas and solder, which is green and the most advanced electrical connection technology currently.





what is the difference between Ultrasonic metal welding machine and ultrasonic plastic welding machine ?



Firstly, the way of working is not the same. Generally, the vibration direction of the welding head in the ultrasonic plastic welding is perpendicular to the welding position. In the ultrasonic metal welding machine, the vibration direction of the welding head is parallel to the welding position. In some special cases, plastic welding can also be used in parallel directions, such as thinner plastic parts.



High power capacity, stable ultrasonic generator:

The first requirement for a stable ultrasonic generator is frequency automatic tracking. Frequency automatic tracking can ensure that the transducer system can work in resonance, that is, the welding head amplitude is maximized. The use of frequency automatic tracking technology, the replacement of molds and work without the need for FM, is the basic requirements for metal welding. A device with manually adjustable frequency adjustable inductance can basically meet the requirements.



Secondly, due to the application of metal welding machines to welding metals, higher requirements are placed on ultrasonic welding technology. Compared to ordinary plastic welding, the requirements for power capacity, power density, stability, and automatic control are not the same. level. Domestic ultrasonic plastic welding generators are basically self-excited circuits, typically represented by full-bridge circuits and half-bridge circuits commonly used in Taiwanese machines. The distinctive feature is a tuned inductor. If the existing mature technology for plastic welding is directly transferred to metal welding, its technical innateness will lead to unstable use of the product; its only advantage is that the price is cheap, but for the high requirements of the metal welding itself, This advantage is very pale.



The stable ultrasonic generator also requires: constant amplitude function and amplitude stepless adjustment. Constant amplitude function, which can ensure the consistency of welding, is the key to stable production; stepless adjustment of the amplitude is the basic to ensure the use of equipment, such as the ability to weld copper and weld aluminum materials on the same equipment through parameter adjustment.



High power capacity: Metal welding machines require high energy density relative to plastic welding machines and must have relatively high power capacity. For example, a 20 kHz machine requires basically more than 3000 W of power capacity. Many companies often have false claims for power capacity, so we only need to compare them with the plastic welding machines they do, because plastic welding machines are too high to be believed.



1. High-quality welding heads: Metal welding, as an industrial application, inevitably requires a long-life welding head.

2. High-quality control system: It has three basic control modes: welding energy, time, and altitude. A variety of quality control software meets different requirements.

3. Metal welding machines use high-quality transducers such as 20kHz transducers that must be able to withstand more than 3kw of load for long periods of time. Many companies' transducers use ordinary plastic welding transducers and are difficult to distinguish in appearance. This is irresponsible.





Altrasonic Ultrasonic Harness Welding Machine, Big Area Welding, Make It Possible
