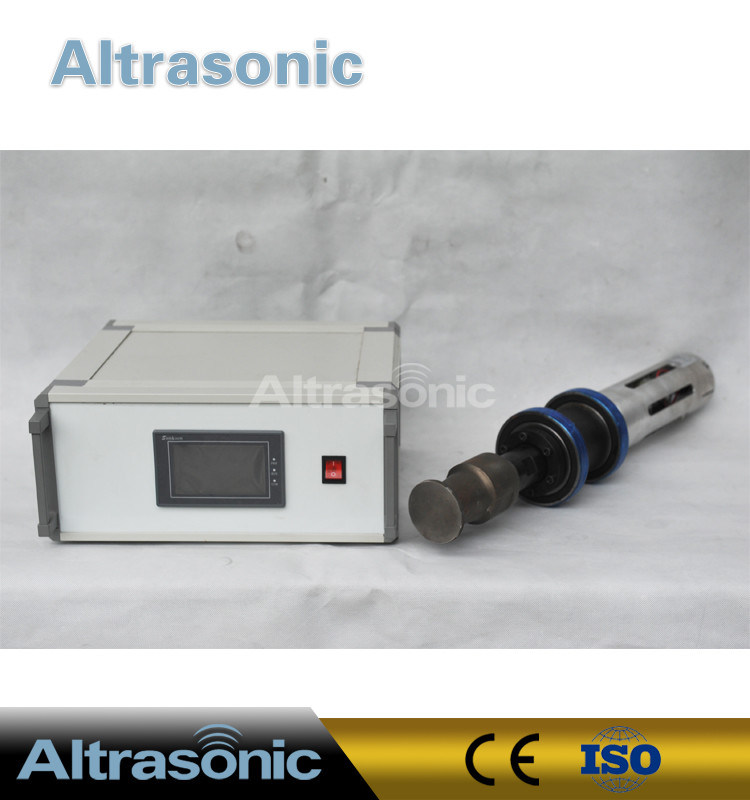

High Power Ultrasonic Metal Welding Machine , High Frequency Welder Equipment

High Power Ultrasonic Metal Welding Machine , High Frequency Welder Equipment
High Power Ultrasonic Metal Welding Machine , High Frequency Welder Equipment High Power Ultrasonic Metal Welding Machine , High Frequency Welder Equipment High Power Ultrasonic Metal Welding Machine , High Frequency Welder Equipment

Large Image :  High Power Ultrasonic Metal Welding Machine , High Frequency Welder Equipment

Product Details:
Place of Origin: China
Brand Name: Altrasonic
Certification: CE
Model Number: HSP11B-MB
Payment & Shipping Terms:
Minimum Order Quantity: 1 unit
Price: Negotiation
Packaging Details: Wooden case
Delivery Time: 15 workdays
Payment Terms: T/T, Western Union
Supply Ability: 200 sets per month

High Power Ultrasonic Metal Welding Machine , High Frequency Welder Equipment

Description
Power: 2000w Frequency: 20khz
Generator: Digital Generator Input Voltage: 220V/50HZ
Control: CPU Control,automatic Scanning/tracking Components: Digital Generator, Transducer, Booster, Welding Horn
Materials Of Horn: Special Steel
High Light:

ultrasonic metal welding equipment

,

ultrasonic metal welding



High Power Ultrasonic Metal Welding Machine , High Frequency Welder Equipment





Description:



ultrasonic metal welding machine is the high frequency vibration between the work piece surface, until the contact surface heating and welding together. As copper, silver, nickel chromium canwelding to dot or strip, which can be widely applied to the silicon chip fuses, quick fuse melts melting, electrical wire terminals, lithium ion, nickel metal hydride, nickel cadmium battery pole piece such as dot, strip welding.





Specification:



Frequency 20 Khz
Output Power 2000 W
Voltage 220 V
Switch Handle or foot switch
Power Adjusting Step or continuous
Working Time Control 24 Hours
Weignt 20-30 KG ( Determined by the size of the horn )
Generator Digital Generator
Welding speed 10m / s






Principle:



By using the ultrasonic high frequeccy vibration principle, the ultrasonic metal welder converts the ultrasonic vibration energy into friction energy to transfer the metal’s surface. Under condition of producing the heat by the friction and putting apressure to the metal, The metal pieces will fuse.





Main Advantage:



1. Fast Heating: The minimum rate of heating is less than one second(rate of heating is available for adjustment and control)



2. Wide Coverage of Heating: It can be used to heat various metal parts (replace removable induction coil as per different shape).



3. Easy Installation: It can be used once it is connected with power source, induction coil as well as water supply pipe and rising pipe; it is small in size and light in weight.



4. Easy Operation: You can learn to operate it within several minutes.



5. Fast start-up: It can be started to perform heating operation on condition that water and power supply is available.



6. Low Power Consumption: As compared with conventional vacuum tube high frequency equipments, it can save the power by approximately 70%. The smaller the size of the work pieces, the lower power consumption would be.



7. High Effectiveness: It has such features as uniform heating ( it is applicable to adjust the spacing of the induction coil to ensure the appropriate temperature as required by each part of work piece ), fast warming and limited oxic horizon, and can gurad against any waste after annealing.



8. Comprehensive Protection: It has such functions as overvoltage, over-current, overheat and water shortage alarm indications as well as automatic control and protection.



9. Controllable Temperature: It is applicable to control the temperature for heating work pieces as per the preset heating time, and thereby control the heating temperature at a certain technical point.



10. Comprehensive Full Load Design: It can work continuously for 24 hours



11. Small Size And Light Weight: It has a weight of only several dozens of kilograms, of which, the limited floor space can effectively save the workshop space. Sound operational environment: it is favorable for environmental protection, conservation of energy and safety operation, which is free of any noise, exhaust gas and dust.



12. Elimination of High Voltage: it requires no step-up transformer which may produce approximately ten thousand voltage, and thus can ensure the maximum safety.
