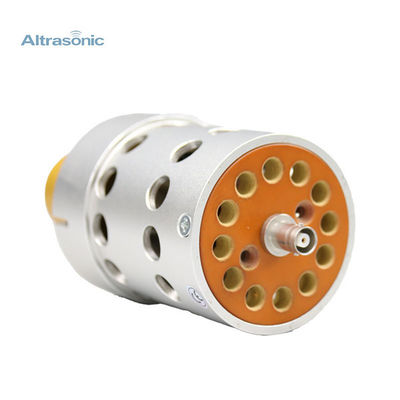

20Khz Dukane Type High Power Ultrasonic Transducer Replacement For Plastic Welding

20Khz Dukane Type High Power Ultrasonic Transducer Replacement For Plastic Welding
20Khz Dukane Type High Power Ultrasonic Transducer Replacement For Plastic Welding 20Khz Dukane Type High Power Ultrasonic Transducer Replacement For Plastic Welding 20Khz Dukane Type High Power Ultrasonic Transducer Replacement For Plastic Welding

Large Image :  20Khz Dukane Type High Power Ultrasonic Transducer Replacement For Plastic Welding

Product Details:
Place of Origin: China
Brand Name: Altrasonic
Certification: CE
Model Number: HS-D41C30
Payment & Shipping Terms:
Minimum Order Quantity: 1PCS
Price: Negotiable
Packaging Details: Packed in carton firstly,and then reinforced with wooden case for outer packing
Delivery Time: 14working days after received your payment
Payment Terms: T/T or western Union
Supply Ability: 1,000 units per month

20Khz Dukane Type High Power Ultrasonic Transducer Replacement For Plastic Welding

Description
Product Name: Welding Transducer Frequency: 20 Khz
Ceramic Diameter: 50 Mm Capacitance: 11-17nF
Power: 2000W Application: Welding Machine
Amplitude: 20 Um Ceramic Disc: 4 Pcs
Material Of Booster: Titanium, Aluminum, Steel Materials Optional Protective Housing: Aluminum And Stainless Steel Optional
High Light:

high frequency ultrasonic transducer

,

portable transducer

20Khz Dukane Type High Power Ultrasonic Transducer Replacement For Plastic Welding



Specifications:



Model

HS-41C30

Frequency 20Khz
Output power 2000 watt
Joint bolt 1/2-20 UNF
Ceramic disc Diameter 50mm
Qty of ceramic discs 4pcs
Capacitance 11-17 nf
Amplitude 20 um
Application Plastic welding machine



Description:



The 2000 Watt 20 KHz Ultrasonic Converter Direct replacement for the Dukane 41C30 that delivers lower cost, rugged quality and superior value.



The transducer converts high-frequency electrical energy into high-frequency mechanical vibrations. And it contains several piezoelectric ceramic discs sandwiched under pressure between two metal blocks. Between each disc is a thin metal plate, which forms the electrode. When a sinusoidal electrical signal is fed to the transducer via the electrodes, the discs expand and contract, producing axial vibrations.







Applied Range:

Ultrasonic transducer,ultrasonic generator and ultrasonic horn constitute a whole ultrasonic system,
which can be widely used to do welding in various kinds of industries.

Applied Industries : automobile industry, electric industry, medical industry, household appliance industry, non woven fabric clothing,
packing, office supplies, toys, etc.
Applied Machines : Ultrasonic cleaner,Beauty set,welding machines,cutting machines,Medical scalpel and tartar clear.



Replacement Item:



Item No Connect Screw (Size)

Ceramic diameter

(mm)

Qty of ceramic

(PC)

Frequency(khz) Resistance(Ω) Color of ceramic Capacitance

Input Power

(W)

Branson CJ20 1/2-20UNF 50 6 19.90 10 Yellow 20000 3300
Branson 502 1/2-20UNF 50 6 19.90 10 Yellow 20000 3300
Branson 402 M8*1.25 25 4 39.60 10 Yellow 4200 800
Branson 4TH M8*1.25 25 4 39.90 10 Yellow 4200 800
Branson 902 1/2-20UNF 40 4 19.85 10 Yellow 8000 1100
Branson 922J 1/2-20UNF 50 6 19.90 10 Yellow 20000 2200
Dukane 40K M8*1.25 35 2 39.80 5 Gray 3000 800
Dukane 20K 1/2-20UNF 50 2 19.50 10 Yellow 11000 2000
Dukane 110-3122 1/2-20UNF 50 4 19.50 10 Yellow 11000 2000
Dukane 110-3168 1/2-20UNF 45 2 19.50 10 Yellow 4000 800
Rinco 35K M8*1.25 25 2 34.80 50 Yellow 2000 900
Rinco 20K M16*2 50 2 19.90 50 Yellow 5000 3000
Telsonic 35K M8*1.25 25 4 35.00 5 Yellow 4000 1200
Telsonic 20K 1/2-20UNF 50 4 20.00 3 Yellow 10000 2500



What we can do for you:

1. OEM - special custom-made the ultrasonic transducers or parts for you, and save cost for you.
2. Supply Replacement converter - Including NTK, Branson CJ20, CR20, 922JA..., Dukane 110-3122, Rinco brand and so on.
3. For some special items, you can provide us with samples, then we can give you a competitive price and custom-made it for you.
