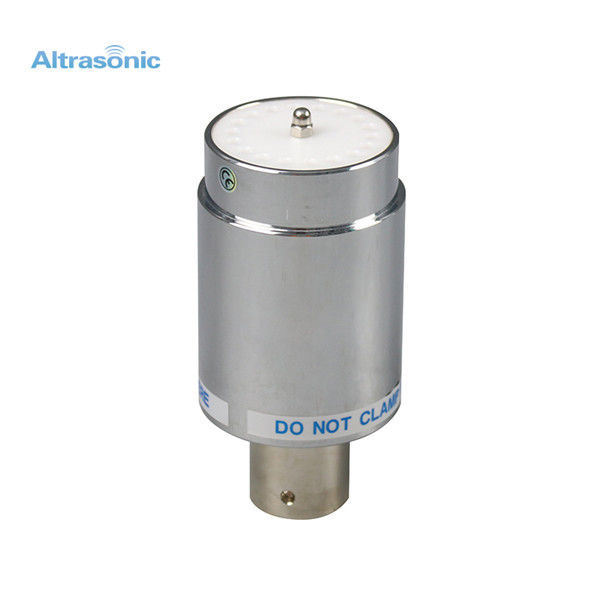

High Performance Ultrasonic Transducer For Welding Replacement Branson 922J

High Performance Ultrasonic Transducer For Welding Replacement Branson 922J
High Performance Ultrasonic Transducer For Welding Replacement Branson 922J High Performance Ultrasonic Transducer For Welding Replacement Branson 922J High Performance Ultrasonic Transducer For Welding Replacement Branson 922J High Performance Ultrasonic Transducer For Welding Replacement Branson 922J

Large Image :  High Performance Ultrasonic Transducer For Welding Replacement Branson 922J

Product Details:
Place of Origin: China
Brand Name: Altrasonic
Certification: CE
Model Number: HS-B922J
Payment & Shipping Terms:
Minimum Order Quantity: 1PCS
Price: Negotiable
Packaging Details: Packed in carton firstly,and then reinforced with wooden case for outer packing
Delivery Time: 20 working days after received your payment
Payment Terms: T/T or western Union
Supply Ability: 1,000 units per month

High Performance Ultrasonic Transducer For Welding Replacement Branson 922J

Description
Product Name: Replacement Branson 922J Frequency: 20Khz
Ceramic Diameter: 50 Mm Capacitance: 20nF
Power: 2200W Application: Welding Machine
Amplitude: 20 Um Ceramic Disc: 6 Pcs
Protective Housing: Aluminum And Stainless Steel Optional
High Light:

high frequency ultrasonic transducer

,

portable transducer

High Performance Ultrasonic Transducer For Welding Replacement Branson 922J



Specifications:



Model HS-B922J
Frequency 20 khz
Output power 2200 watt
Joint bolt 1/2-20 UNF
Ceramic disc Diameter 50mm
Qty of ceramic discs 6pcs
Capacitance 20nF
Amplitude 20um
Application Welding machine



Description:



The 2200 Watt 20 KHz Ultrasonic Converter Direct replacement for the Branson 922J that delivers lower cost, rugged quality and superior value.



The transducer converts high-frequency electrical energy into high-frequency mechanical vibrations. And it contains several piezoelectric ceramic discs sandwiched under pressure between two metal blocks. Between each disc is a thin metal plate, which forms the electrode. When a sinusoidal electrical signal is fed to the transducer via the electrodes, the discs expand and contract, producing axial vibrations.





Applied Range:

Ultrasonic transducer,ultrasonic generator and ultrasonic horn constitute a whole ultrasonic system,
which can be widely used to do welding in various kinds of industries.

Applied Industries : automobile industry, electric industry, medical industry, household appliance industry, non woven fabric clothing,
packing, office supplies, toys, etc.
Applied Machines : Ultrasonic cleaner,Beauty set,welding machines,cutting machines,Medical scalpel and tartar clear.



Competitive Advantage:



1. Titanium, aluminum, steel materials of horn optional.

2. Once assembled, the transducers are aged before testing and final assembly. The properties of piezoelectric materials can change with time and pressure, so a bit of time on the shelf prior to testing will identify nonconforming material.

3. One by one testing to ensure that each transducer performance are excellent.

4. In good heat resistance, can be used in a wide range of temperature with long life and high reliability.



What we can do for you:

1. OEM - special custom-made the ultrasonic transducers or parts for you, and save cost for you.
2. Supply Replacement converter - Including NTK, Branson CJ20, CR20, 922JA..., Dukane 110-3122, Rinco brand and so on.
3. For some special items, you can provide us with samples, then we can give you a competitive price and custom-made it for you.





High Performance Ultrasonic Transducer For Welding Replacement Branson 922J 0High Performance Ultrasonic Transducer For Welding Replacement Branson 922J 1High Performance Ultrasonic Transducer For Welding Replacement Branson 922J 2
