Incomparable 20khz Ultrasonic Transducer With 40MM Ceramic Disc Diameter

Certifications
Good quality Ultrasonic Converter for sales
Customer Reviews
The converters corresponding to your INVOICE NO. HS2015021 work very well. We would like to order more

—— Peter

I'm very happy with your good communication skills as well as follow up and good deal. I will definitely inform you my further program for further coo

—— Vinay

We tested it and it worked.  I will let you know about future purchases soon.

—— Alvin

Thank you! It is a pleasure, to work with a company that wants to make it right for the customer :) many times i deal with Chinese companies that do not care about the customer and long term business. I think I made the right decision going with you and Altrasonic !!!

—— Cameron

I'm Online Chat Now

Incomparable 20khz Ultrasonic Transducer With 40MM Ceramic Disc Diameter

China Incomparable 20khz Ultrasonic Transducer With 40MM Ceramic Disc Diameter supplier
Incomparable 20khz Ultrasonic Transducer With 40MM Ceramic Disc Diameter supplier Incomparable 20khz Ultrasonic Transducer With 40MM Ceramic Disc Diameter supplier Incomparable 20khz Ultrasonic Transducer With 40MM Ceramic Disc Diameter supplier

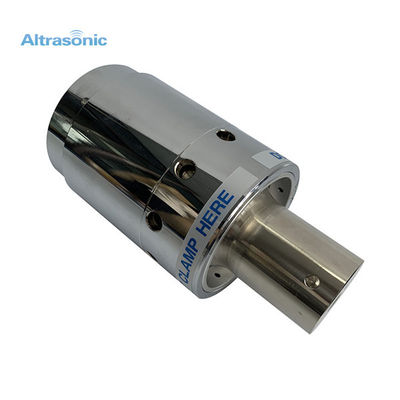

Large Image :  Incomparable 20khz Ultrasonic Transducer With 40MM Ceramic Disc Diameter

Product Details:

Place of Origin: China
Brand Name: Altrasonic
Certification: CE
Model Number: Replacement Branson 902R

Payment & Shipping Terms:

Minimum Order Quantity: 2 unit
Price: negotiation
Packaging Details: Packed in carton firstly,and then reinforced with wooden case for outer packing
Delivery Time: 14 working days after received your payment
Payment Terms: T/T or western Union
Supply Ability: 1,000 units per month
Contact Now
Detailed Product Description
Product Name: Ultrasonic Welding Transducer Joint Bolt: 1/2-20UNF
Ceramic Diameter: 40mm Type: Branson Type
Application: Welding



Incomparable 20khz Ultrasonic Transducer With 40MM Ceramic Disc Diameter

Specifications:



Model Replacemen Branson 902R
Frequency 20 khz
Output power 2000 watt
Joint bolt 1/2-20 UNF
Ceramic disc Diameter 40mm
Quantity of Ceramic discs 4 pcs
Amplitude 20 um
Application welding machine



Description:



The 1100 Watt 20 KHz Ultrasonic Converter Direct replacement for the Branson 902R that delivers lower cost, rugged quality and superior value.
First, all of the parts are all new.

The parts are made from certified materials in tightly controlled manufacturing processes, assembled and

tested in a climate-controlled environment using carefully calibrated equipment, then properly aged and re-tested to ensure

performance that duplicates the OEM part.

Warranty:



We offer the same warranty as the OEM, namely, three years one-time replacement.

Simply ship the broken unit back to arrive within three years of original shipment, and it will be replaced (one

time).



Applied Range:

Replacement ultrasonic converter for Branson model 902R
for use with all 20KHz 2000 and 2000X actuator and IW systems.





What we can do for you,
1. OEM - special custom-made the ultrasonic transducers or parts for you, and save cost for you.
2. Supply Replacement converter - Including NTK, Branson CJ20, CR20, 922JA..., Dukane 110-3122, Rinco brand and so on.
3. For some special items, you can provide us with samples, then we can give you a competitive price and custom-made it for you.





Incomparable 20khz Ultrasonic Transducer With 40MM Ceramic Disc DiameterIncomparable 20khz Ultrasonic Transducer With 40MM Ceramic Disc Diameter
