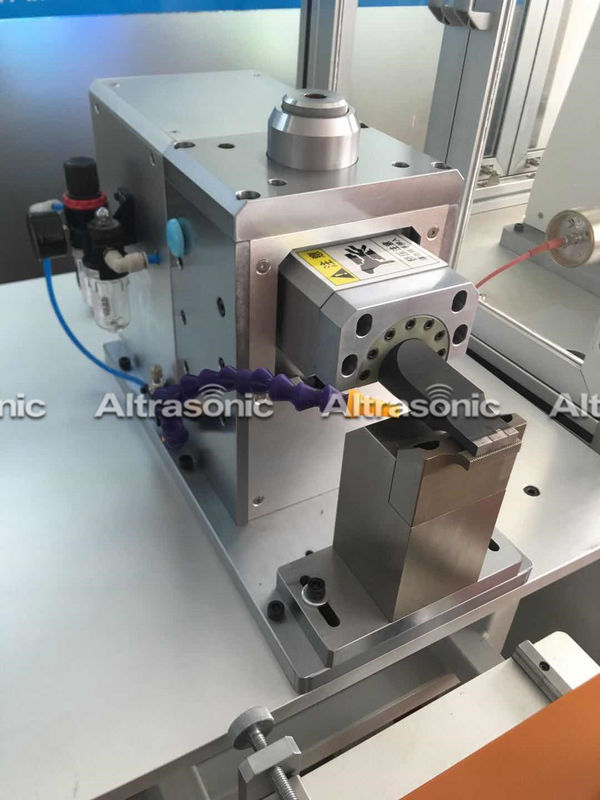

Spot Series Ultrasonic Metal Welding Machine For No Ferrous Metal Plate

China Spot Series Ultrasonic Metal Welding Machine For No Ferrous Metal Plate supplier
Spot Series Ultrasonic Metal Welding Machine For No Ferrous Metal Plate supplier Spot Series Ultrasonic Metal Welding Machine For No Ferrous Metal Plate supplier Spot Series Ultrasonic Metal Welding Machine For No Ferrous Metal Plate supplier Spot Series Ultrasonic Metal Welding Machine For No Ferrous Metal Plate supplier

Large Image :  Spot Series Ultrasonic Metal Welding Machine For No Ferrous Metal Plate

Product Details:

Place of Origin: China
Brand Name: Altrasonic
Certification: CE
Model Number: HS-2032JX-AT

Payment & Shipping Terms:

Minimum Order Quantity: 1 unit
Price: Negotiation
Packaging Details: Wooden case
Delivery Time: 15 workdays
Payment Terms: T/T, Western Union
Supply Ability: 200 sets per month
Contact Now
Detailed Product Description
Power: 2000w Frequency: 20khz
Generator: Digital Generator Input Voltage: 3800V/16A
Control: CPU Control,automatic Scanning/tracking Components: Digital Generator, Transducer, Booster, Welding Horn
Materials Of Horn: Special Steel



Spot Series Ultrasonic Metal Welding Machine For No Ferrous Metal Plate





Description:



Altrasonic ultrasonic spot welder are suitable for instant welding of Non-ferrous metal plate, thin stick, trace, folio, belt, wire etc, which are made of cooper, aluminum, tin, nickel, gold, silver. It is widely used for welding process of car metal components, hardware products, batteries, electronics, solar products, mechanical products etc. For example: for NI-MH battery; for lithium battery and polymer battery; welding between wires and electronic components, terminal, connector etc.





Specification:



Model MAX Power Frequency Stroke Control method Input Voltage Dimension Weight
HS-1540JD-BT 5000W 15KHZ 25mm Time 380v 630*280*430 70kgs
HS-2032JD-BT 3200W 20KHZ 25mm Time 380v 490*200*340 60kgs
HS-2020JD-BT 2000W 20KHZ 25mm Time 220v 490*200*340 55kgs
HS-3509JD-BT 900W 35KHZ 25mm Time 220v 490*200*340 45kgs







Advantages:



1. Easy to operate;including electronic protection circuit for safety.

2. Power up to 5000w; no treatment needed before welding

3. Unique structural design, welding tip can be changed easily.

4. Advanced ultrasonic control unit with micro-processor to achieve the best welding performance

5. Ultrasonic welding process with high effective, less pollution and saving energy.

6. Global outsourcing for components, ensuring a stable operation of the equipment.





what is the difference between Ultrasonic metal welding machine and ultrasonic plastic welding machine ?



Firstly, the way of working is not the same. Generally, the vibration direction of the welding head in the ultrasonic plastic welding is perpendicular to the welding position. In the ultrasonic metal welding machine, the vibration direction of the welding head is parallel to the welding position. In some special cases, plastic welding can also be used in parallel directions, such as thinner plastic parts.



High power capacity, stable ultrasonic generator:

The first requirement for a stable ultrasonic generator is frequency automatic tracking. Frequency automatic tracking can ensure that the transducer system can work in resonance, that is, the welding head amplitude is maximized. The use of frequency automatic tracking technology, the replacement of molds and work without the need for FM, is the basic requirements for metal welding. A device with manually adjustable frequency adjustable inductance can basically meet the requirements.



Secondly, due to the application of metal welding machines to welding metals, higher requirements are placed on ultrasonic welding technology. Compared to ordinary plastic welding, the requirements for power capacity, power density, stability, and automatic control are not the same. level. Domestic ultrasonic plastic welding generators are basically self-excited circuits, typically represented by full-bridge circuits and half-bridge circuits commonly used in Taiwanese machines. The distinctive feature is a tuned inductor. If the existing mature technology for plastic welding is directly transferred to metal welding, its technical innateness will lead to unstable use of the product; its only advantage is that the price is cheap, but for the high requirements of the metal welding itself, This advantage is very pale.



The stable ultrasonic generator also requires: constant amplitude function and amplitude stepless adjustment. Constant amplitude function, which can ensure the consistency of welding, is the key to stable production; stepless adjustment of the amplitude is the basic to ensure the use of equipment, such as the ability to weld copper and weld aluminum materials on the same equipment through parameter adjustment.



High power capacity: Metal welding machines require high energy density relative to plastic welding machines and must have relatively high power capacity. For example, a 20 kHz machine requires basically more than 3000 W of power capacity. Many companies often have false claims for power capacity, so we only need to compare them with the plastic welding machines they do, because plastic welding machines are too high to be believed.



1. High-quality welding heads: Metal welding, as an industrial application, inevitably requires a long-life welding head.

2. High-quality control system: It has three basic control modes: welding energy, time, and altitude. A variety of quality control software meets different requirements.

3. Metal welding machines use high-quality transducers such as 20kHz transducers that must be able to withstand more than 3kw of load for long periods of time. Many companies' transducers use ordinary plastic welding transducers and are difficult to distinguish in appearance. This is irresponsible.





20Khz Ultrasonic Metal Spot Welding Series for No-ferrous Metal Plate



  Spot Series Ultrasonic Metal Welding Machine For No Ferrous Metal Plate



Spot Series Ultrasonic Metal Welding Machine For No Ferrous Metal Plate
