8 Inch Full Touch Screen Measuring Instrument For Ultrasonic Transducers and equipment, Frequency checking

China 8 Inch Full Touch Screen Measuring Instrument For Ultrasonic Transducers and equipment, Frequency checking supplier
8 Inch Full Touch Screen Measuring Instrument For Ultrasonic Transducers and equipment, Frequency checking supplier 8 Inch Full Touch Screen Measuring Instrument For Ultrasonic Transducers and equipment, Frequency checking supplier 8 Inch Full Touch Screen Measuring Instrument For Ultrasonic Transducers and equipment, Frequency checking supplier 8 Inch Full Touch Screen Measuring Instrument For Ultrasonic Transducers and equipment, Frequency checking supplier

Large Image :  8 Inch Full Touch Screen Measuring Instrument For Ultrasonic Transducers and equipment, Frequency checking

Product Details:

Place of Origin: China
Brand Name: Altrasonic
Certification: CE
Model Number: HS520A

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Packaging Details: Carton or Wooden case
Payment Terms: T/T, Western Union
Supply Ability: 200 sets per month
Contact Now
Detailed Product Description
Function: Check The Frequency And Impendance Size: 24 X 19 X 10 Cm
Voltage: 100-250VAC Working Temperature: 10-40 C

Measuring The Impedance Of Ultrasonic Transducers







Specification:



Specification

Performance

HS520A
Product feature Portable, 8inch screen, Full touch screen
Dimension L24cm,W19cm,H10cm
Frequency range 1KHz~500MHz/1Mhz/3Mhz
Measurement Index All the parameters, the graph
Measurement Accuracy < 0.5%
Measurement Speed 5s/one pass(600scan point) Adjustable
Frequency Accuracy ±10ppm
Phase Resolution 0.15 degree
Environment Temperature 10~40degree centigrade
Impedance Range 1Ω~1MΩ
Frequency Step 0.1Hz~any
Power Supply AC100V~AC250V,50~60Hz, 30W
Application Ultrasonic device







Description:



The TRZ Horn Analyzer determines the operation frequency of the item to be tested and its impedance and current with the touch of a button. It’s quick and easy. With this quick and easily retrieved information, the user can perform the quality control of transducers, tuning of sonotrodes and ultrasonic horns, preventive and corrective maintenance of acoustic sets and much more







Application:



Piezoelectric ceramics, transducers, ultrasonic cleaning machines, ultrasonic plastic welding machine, underwater acoustic, magnetostrictive materials, ultrasonic grinder, ultrasonic atomization , reversing radar, ultrasonic ranging, phacoemulsification , ultrasonic motors, and all other devices used in piezoelectric and ultrasound.







Competitive Advantages:



1. Large screen, full-screen touching, making the HS520A both HS70A-P(computer version) operating experience, and no cumbersome with a sense of computer operation.



2. Relies on the new powerful ARM processor data processing capacity, HS520A measurement accuracy is much higher than HS70A-D (with display version), can achieve HS70A-P(computer version) level.



3. Full-screen touch operation is more user-friendly, no longer need HS70A-D(own display version) a large number of physical buttons, thus operating instruments becomes extremely simple, the production size smaller, lighter and more portable.



4. Connecting the computer to operate as HS70V-P. The software is fully compatible, the user are no longer familiar with software operation.



5.HS520A was taken into account the needs of automated production line operation in the development time, reserved the 232interface with PLC communication and IO communication interface (replay input and output)



6. HS520A operation is no longer based on Windows system, with long-term reliable operation capacity in the production line.





Measuring The Impedance Of Ultrasonic Transducers

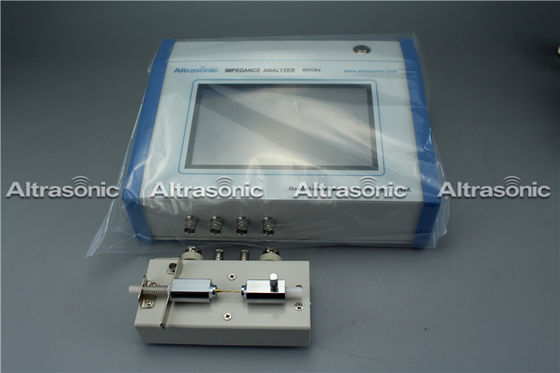

8 Inch Full Touch Screen Measuring Instrument For Ultrasonic Transducers and equipment, Frequency checking

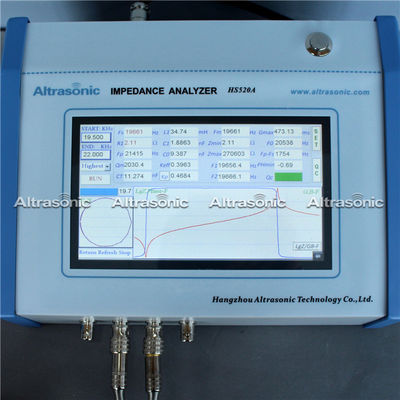

8 Inch Full Touch Screen Measuring Instrument For Ultrasonic Transducers and equipment, Frequency checking

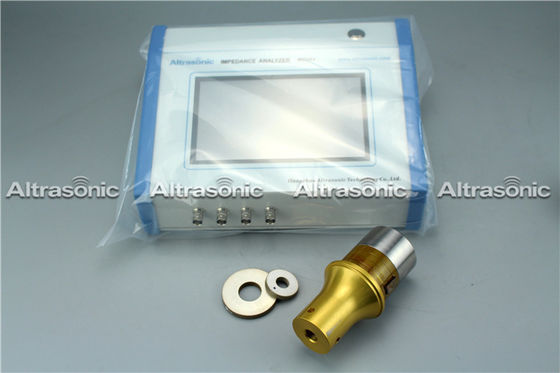

8 Inch Full Touch Screen Measuring Instrument For Ultrasonic Transducers and equipment, Frequency checking

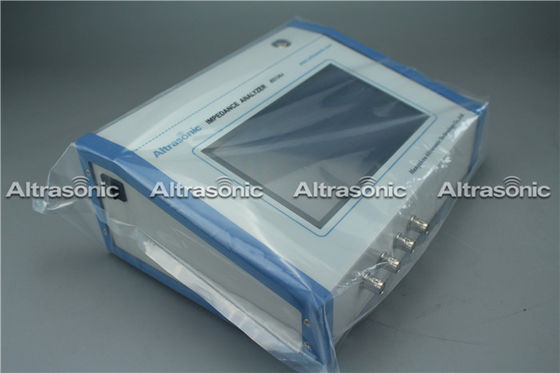

8 Inch Full Touch Screen Measuring Instrument For Ultrasonic Transducers and equipment, Frequency checking
