Blade Replaceable Ultrasonic Cutting Equipment 40KHZ With Analog Generator For Loom

China Blade Replaceable Ultrasonic Cutting Equipment 40KHZ  With Analog Generator For Loom supplier

Large Image :  Blade Replaceable Ultrasonic Cutting Equipment 40KHZ With Analog Generator For Loom

Product Details:

Place of Origin: CHINA
Brand Name: Altrasonic
Certification: CE
Model Number: HSQ40B-AB

Payment & Shipping Terms:

Minimum Order Quantity: 1 Unit
Price: Negotiation
Packaging Details: Carton packing
Delivery Time: 7 workdays afer receiving the payment
Payment Terms: T/T, Western Union
Supply Ability: 200 sets per month
Contact Now
Detailed Product Description
Frequency: 40Khz Power: 100W
Blade: Replaceable Material Of The Blade: Titanium
Application: Cutting Generator: Analog
Size Of Generator: 155 X 265 X 170mm Length Of Cable: 3M
Voltage: 220V / 110V

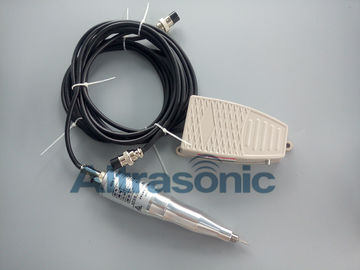

40KHZ Ultrasonic Loom Cutting Machine High Quality Cutting Easy to Replace

Blade Replaceable Ultrasonic Cutting Equipment 40KHZ  With Analog Generator For LoomBlade Replaceable Ultrasonic Cutting Equipment 40KHZ  With Analog Generator For Loom



Specification:



Model HSQ40B-AB
Frequency 40KHZ
Output Power 100W

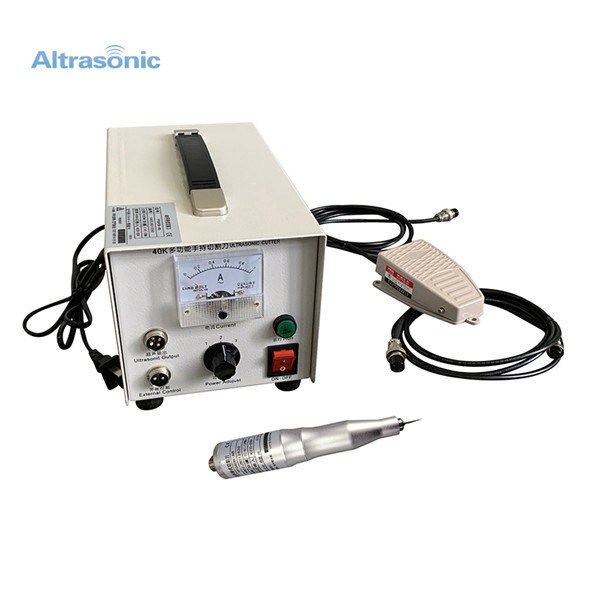

Generator Analog generator, 155 x 265 x 170mm
Handle Φ32×170
Size of cutter Blade replaceable
Length of cable 3M
Outer skin Aluminum
Weight 8KG
Voltage 220V / 110V
Accessory Foot switch1pc;Cut blade 25pcs;1.5mm special hex wrench 1pc;
Screw M3×4L 2pcs
Material of cutter titanium alloy, stainless steel



Description:



Ultrasonic Cutting Machine is a class of device using ultrasonic energy for cutting. Instead of using traditional blade cutting,ultrasonic cutting has its advantages of smooth, reliable cutting, accurate trimming, no deformation, no raising, fuzzing, spinning,wrinkling etc. It can avoid the rough cutting-edge, coked edge, fuzzballs and other shortcomings of laser cutting machine.





Appliction:


Ultrasonic cutting machine is used for cutting rubber, synthetic fabric, cloth, plastic, sheet metal, Braided Materials etc.



Competitive Advantage



* Cutting the fabric with no scattered side, mo hardening, smooth and beautiful.

* Can be hand held or installed om machines and line, easy operation.

* Power adjustable, can connect with the client’s control system.

* Safe separation and sealing of the workpiece during operation.

* Beautiful and closed cutting edge.

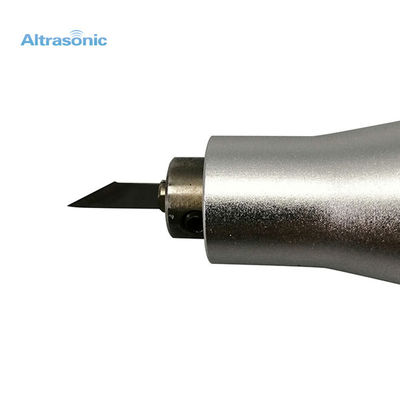

* Special fabric cutting blade, cutting high quality, easy to replace.

* Completely replace the resistance heat knife cutting process, energy saving and environment protection.



40KHZ Ultrasonic Loom Cutting Machine High Quality Cutting Easy to Replace

Blade Replaceable Ultrasonic Cutting Equipment 40KHZ  With Analog Generator For LoomBlade Replaceable Ultrasonic Cutting Equipment 40KHZ  With Analog Generator For Loom
