Product Details:
|
| Product Name: | Ultrasonic Riveting Welding Gun | Frequency: | 35Khz |
|---|---|---|---|
| Power: | 300-1000W | Inlet Power: | AC220V±10V Or AC110V±10V , 50/60HZ |
| Auotomatic Resonance Frequency Range: | ±1000hz | Working Environment: | +5~+50℃ |
| Keeping Environment: | -5~+70℃ | Net Weight: | 10kgs |
| Max Current: | 15A | Origin: | China |
| High Light: | sonic welding machine,portable spot welder |
||

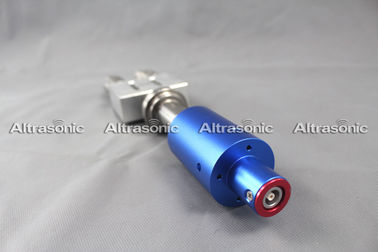

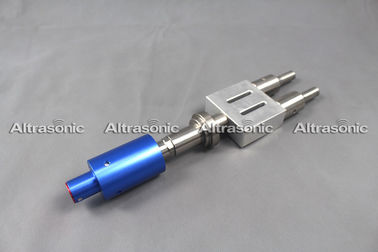

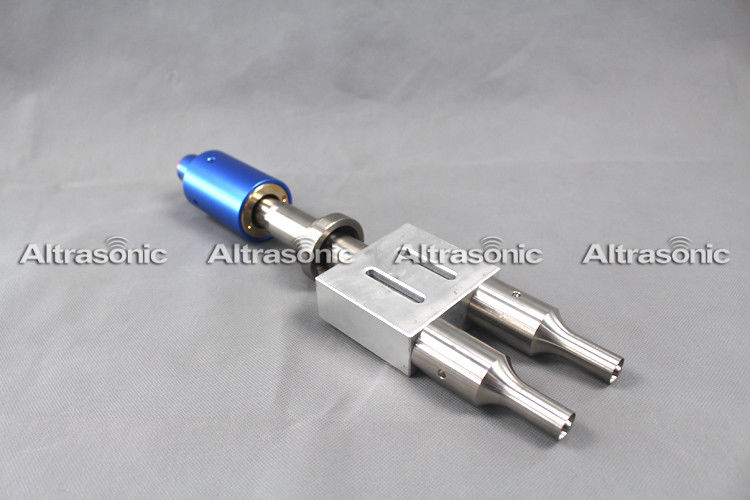

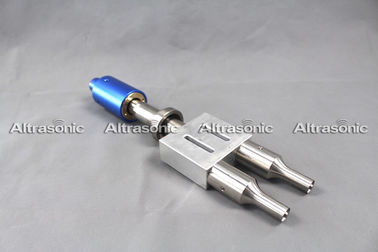

Non Standard Equipment Ultrasonic Multi Station Automatic Welding Machine
Gun type: in accordance with the shape design of human body engineering, ultrasonic start switch is located on the trigger, easy to grasp and use the welding operation, especially suitable for horizontal or vertical.
Cylinder type: for the appearance of design straight, ultrasonic start switch is located outside the cylinder, easy welding and hand carried, can also be installed between the on machine, welding operation for each direction.
Specifications:
| Model | HS-40 | HS-35 | HS-30 | HS-28 | HS-20 |
| Frequency | 40khz | 35khz | 30khz | 28khz | 20khz |
| Power | 500W | 500~800w | 500~800w | 500~800w | 500~1000w |
| Horn | ≤10mm | ≤10mm | ≤10mm | ≤12mm | ≤13mm |
| Housing Diameter | 44mm | 44mm | 44mm | 44mm | 64mm |
| Weight of welder | 1.0kg | 1.0kg | 1.0kg | 1.0kg | 1.5kg |
Advantages of Ultrasonic in Auto Industry.
1. application in riveting, forming and welding
2. light weight, easy to take, easy to operate (handheld)
3. Equipped with welding timer
4. Easty to set time welding
5. Equipped with an overload protection circuit( Voltage, current, phase, temperature, output)
6. FET power output
7. Automatic resonance
8. Maintain the amplitude function automatically
Condition of Ultrasonic Welding:
Ultrasonic automotive plastics as the condition of ultrasonic welding, the most important is the time to apply welding energy (vibration, welding time) length and pressure, of course, other conditions are also very important. Welding temperature ultrasonic welding material viscosity flow temperature. Otherwise the material will not melt.
The welding time varies depending on the material and the shape of the product. The welding time of some molded articles is only 0.2 seconds. Over time will cause excessive welding and produce a lot of flash and bubble, resulting in poor airtight, must pay attention. Cooling (holding) time For crystalline plastic, if the temperature below the melting point, the connection will be solidified, usually the pressure time is maintained between 0.1-0.2 seconds. AMMA plastic).
Ultrasonic implants: the nut screws or other metal into plastic work piece. Ultrasonic energy through the ultrasound machine will be transmitted to the metal. The high-speed vibration and heat, the pressure in the ultrasound machine to make metal objects embedded directly into the plastic inside.
Ultrasonic riveting: the nature of metal and plastic or two different plastic bonding together, can make use of ultrasonic riveting machine, so that the weldment hard brittle, beautiful, strong.
Ultrasonic welding: the use of ultrasound machine small welding head, the two pieces of plastic products into multi-point welding, or welding the first row of teeth on a direct pressure on the two plastic work piece, so as to achieve the effect of ultrasonic welding.
Applications In Automobile:
Ultrasonic Spot Welding is mainly used in automotive interior parts. Ultrasonic spot welding in sound-proof cotton of engine cover, trunk and wheel casing, and hallstand felt. Ultrasonic Riveting Welding can be used in automobile air-conditioning outlet welding, car rear view mirror, car door handles, hand car door and so on.
Automotive plastic parts are mostly welded in non-standard ultrasonic welding equipment, long multi-station design, with PCL program control and LCD operation, large automotive complex workpiece welding, including different directions of the welding surface, in multiple locations.
Requirements:

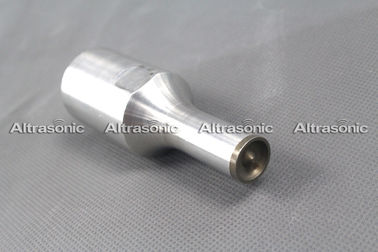

Components of Ultrasonic Welding (Horn, Booster and Transducer)
They can amplify the amplitude at a particular ratio step by step. For example, the transducer amplitude is 6mm, the booster can amplify it triply to 18mm, and then the horn can make it to 36mm. However, the work life of horn would be shortened with the amplification of amplitude. The required amplitude differs with the welding material.
There are three common horn material:
1.Titanium
high price, excellent performance good toughness and low loss, difficult to be processed;
Its amplitude can reach to 60mm.
2. Aluminum
low price, fast loss, easy to be processed;
Its highest amplitude less than 300mm.
3. Steel
too hard to be made as horn;
its highest amplitude less than 25mm;
It is suitable for cutting but the blowpipe need to be added in for its cooling.
Tag: ultrasonic spot welder, portable spot welder
