Multi Head Ultrasonic Spot Welding Machine For Automotive Spoiler Puncture Welding Equipment

China Multi Head Ultrasonic Spot Welding Machine For Automotive Spoiler Puncture Welding Equipment supplier
Multi Head Ultrasonic Spot Welding Machine For Automotive Spoiler Puncture Welding Equipment supplier Multi Head Ultrasonic Spot Welding Machine For Automotive Spoiler Puncture Welding Equipment supplier Multi Head Ultrasonic Spot Welding Machine For Automotive Spoiler Puncture Welding Equipment supplier Multi Head Ultrasonic Spot Welding Machine For Automotive Spoiler Puncture Welding Equipment supplier Multi Head Ultrasonic Spot Welding Machine For Automotive Spoiler Puncture Welding Equipment supplier Multi Head Ultrasonic Spot Welding Machine For Automotive Spoiler Puncture Welding Equipment supplier

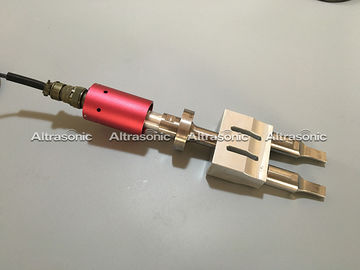

Large Image :  Multi Head Ultrasonic Spot Welding Machine For Automotive Spoiler Puncture Welding Equipment

Product Details:

Place of Origin: CHINA
Brand Name: Altrasonic
Certification: CE
Model Number: HSP35

Payment & Shipping Terms:

Minimum Order Quantity: 1 Unit
Price: Negotiation
Packaging Details: Carton or Wooden Case
Delivery Time: Within 7 workdays after receipt total amount
Payment Terms: T/T, Western Union
Supply Ability: 2000pcs per month
Contact Now
Detailed Product Description
Product Name: 35 Khz Portable Ultrasonic Spot Welder Frequency: 35Khz±1 KHz
Power: 900W Frequency Tuning Method: Auto Tuning
Components: Ultrasonic Transducer, Welding Horn, Protective Sleeve And Digital Generator Welding Type: Hand Held Operation

Ultrasonic Multi Head for Automotive Spoiler Puncture Welding Machine





Description:



Automobile spoiler welding machine belongs to an ultrasonic multi-head welding machine which is used by ultrasonic puncture welding method, the two ABS injection parts are directly welded together without any medium. The welding process is stable, strong degree of noumenon intensity 70%, the cost is better than the effect of the glue on the market.





Principle:



Automobile spoiler is usually called automobile rear wing board or automobile tail fin plate , and rear wing board is made up of two to three parts. In order to achieve aesthetics, ultrasonic spot welding is usually used. The automobile spoiler welding machine consists of multiple sets of 35k ultrasonic systems with two sets of ultrasonic handles. Tailor-made soldering stations facilitate the welding of the tail fins of various automobile manufacturers to achieve beautiful, efficient, and firm purposes.





Specifications:



Model HS-30
Frequency 30khz
Power 500~800w
Horn ≤10mm
Housing Diameter 44mm
Weight of welder 1.0kg





Components:



Components of Ultrasonic Welding (Horn, Booster and Transducer)

They can amplify the amplitude at a particular ratio step by step. For example, the transducer amplitude is 6mm, the booster can amplify it triply to 18mm, and then the horn can make it to 36mm. However, the work life of horn would be shortened with the amplification of amplitude. The required amplitude differs with the welding material.



There are three common horn material:

Titanium

high price, excellent performance good toughness and low loss, difficult to be processed;

Its amplitude can reach to 60mm.

Aluminum

low price, fast loss, easy to be processed;

Its highest amplitude less than 300mm.

Steel

too hard to be made as horn;

its highest amplitude less than 25mm;

It is suitable for cutting but the blowpipe need to be added in for its cooling.





Ultrasonic Multi Head for Automotive Spoiler Puncture Welding Machine





Multi Head Ultrasonic Spot Welding Machine For Automotive Spoiler Puncture Welding Equipment



Multi Head Ultrasonic Spot Welding Machine For Automotive Spoiler Puncture Welding Equipment





FAQ:



1. What is ultrasonic puncture welding?



Ultrasonic puncture welding is only one kind of ultrasonic welding. It belongs to energy welding or destructive welding. It is widely used in auto industry.



2.How to use ultrasonic puncture welding technology?



It was decided by product material, best of same material, or a mixture of materials and other materials. It depends on whether the ultrasonic wave of two kinds material can be fused. You can send the material to try to test.



3.How to design ultrasonic puncture welding?



Usually it is up and down welding. The characteristics of puncture welding, there will certainly be a scar on one side, the other side may not be seen. Many customers are concerned about material issues and also they care about how to design. There are some differences in the products of different ultrasonic puncture welding.



4.What is the ultrasonic welding machine of mud guard and soundproof cotton?



The ultrasonic welding machine of mud guard and Soundproof cotton, the ultrasonic technology is used to weld the two cotton with ultrasonic puncture technology, which is used to weld the auto wheel cover and replace the original binding process. The ultrasonic welding is stable, and the sound insulation effect of loading test meets the standard.Front and rear wheel covers also need ultrasonic welding, you can use a handheld ultrasonic welding machine for welding, also can use multi-head ultrasonic welding or robot welding if large quantity, compared to handheld ultrasonic welding machine, it is low cost and durable.
