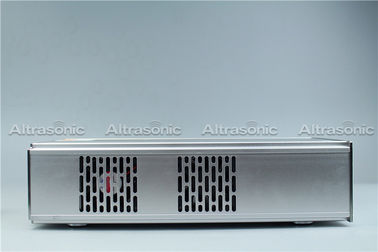

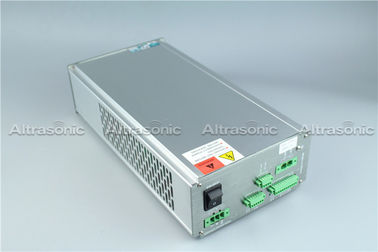

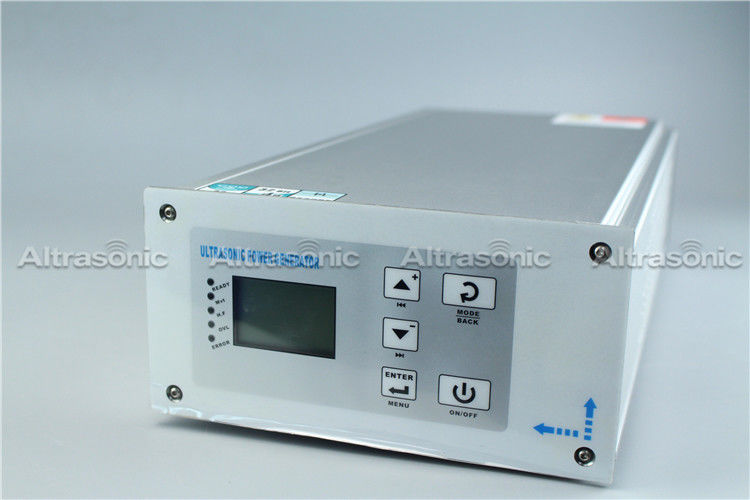

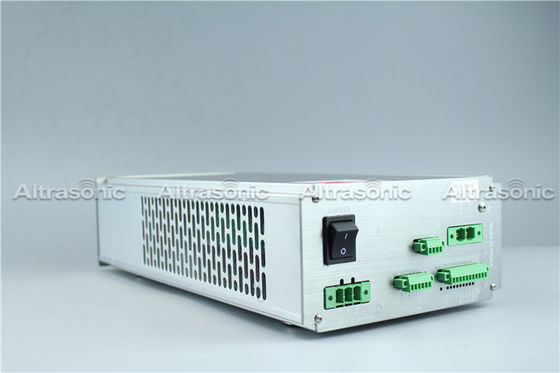

Replacement Branson Generator Ultrasonic Power Supply with Multi Connector

Replacement Branson Generator Ultrasonic Power Supply with Multi Connector
Replacement Branson Generator Ultrasonic Power Supply with Multi Connector Replacement Branson Generator Ultrasonic Power Supply with Multi Connector Replacement Branson Generator Ultrasonic Power Supply with Multi Connector Replacement Branson Generator Ultrasonic Power Supply with Multi Connector

Large Image :  Replacement Branson Generator Ultrasonic Power Supply with Multi Connector

Product Details:
Place of Origin: CHINA
Brand Name: Altrasonic
Certification: CE
Model Number: HS-G-D20
Payment & Shipping Terms:
Minimum Order Quantity: 1 unit
Price: negotiation
Packaging Details: Packed in wooden carton, and PE form inside
Delivery Time: 7 working days after received your payment
Payment Terms: T/T, Western Union
Supply Ability: 3,000 units per month

Replacement Branson Generator Ultrasonic Power Supply with Multi Connector

Description
Product Name: Ultrasonic Digital Generator Output Power: 2600w
Working Type: Continue Or Pulse Optional Net Weight: 7 Kg
Frequency: 20Khz Voltage: 220V/110V 50/60Hz
Size: 195*400*98 Mm Mode: Digital
High Light:

ultrasonic generator

,

ultrasound generator

Replacement Branson Generator with Multi Connector for Different Application







Description:

The ultrasonic generator, also called ultrasonic driving power supply, electronic box, control box, is an important part of high power ultrasonic system. Main function is to generate high power and high frequency alternating current, drive the ultrasonic transducer. High-power ultrasonic power supply from the conversion efficiency into consideration generally take the form of switch power supply circuit.Ultrasonic power supply can be divided into self-excited and it excited type power supply, it power called ultrasonic generator excitation type, autonomous power called ultrasonic controller.







Applications:

Ultrasonic generator main function is to generate high power and high frequency alternating current, drive the ultrasonic transducer.
Ultrasonic generator is applied to all kinds of ultrasonic equipment, mainly with ultrasonic welding, ultrasonic cutting, ultrasonic chemical equipment and ultrasonic welding equipment such as non-woven fabric.







Specifications:



Model HS-G-D20
Frequency 20khz
Output power 2600watt
Frequency tuning method continue or pulse optional
Size 195*400*98 mm
Input Voltage 220V/110V 50/60HZ
Net weight 7kgs
Temperature ≤300℃
Moisture ≤85%RH
Power adjustable 1%-99%
Applications For welding machine







Competitive Advantage:​



  • The use of high-quality electronic components assembly.
  • Advanced and reliable protection circuit makes the reliability is greatly improved.
  • FM and frequency automatic compensation, frequency of the digital display.
  • Frequency deviation, working current two meter indication and protection function.
  • According to the customer request interface plug.
  • Has the advantages of simple structure, easy to repair, cheap.







Comparison:



  Analog generator Digital generator
Circuit Analog circuit, discrete components Digital circuit, the chip control
Automatic search ×
Automatic frequency tracking ×
Frequency adjustment range ±0.15 KHz ±0.5 KHz
Power regulation ×
24 hours of continuous work ×
Non resonant condition ×
LCD ×
Add the PLC protocol ×
Automatic circuit protection Bad, easy to cause the damage of components Good
Repair method Professional repair

Module replacement









Replacement Branson Generator with Multi Connector for Different Application



Replacement Branson Generator Ultrasonic Power Supply with Multi Connector 0Replacement Branson Generator Ultrasonic Power Supply with Multi Connector 1Replacement Branson Generator Ultrasonic Power Supply with Multi Connector 2



Tag: ultrasound generator,ultrasound power supply

Replacement Branson Generator Ultrasonic Power Supply with Multi Connector 3
