Introduction:

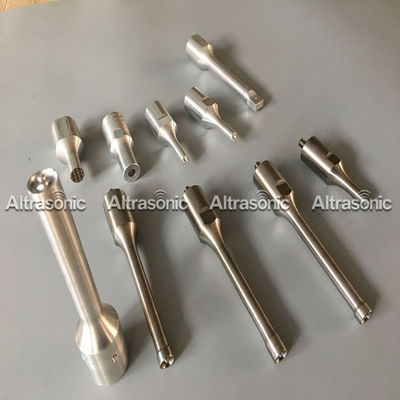

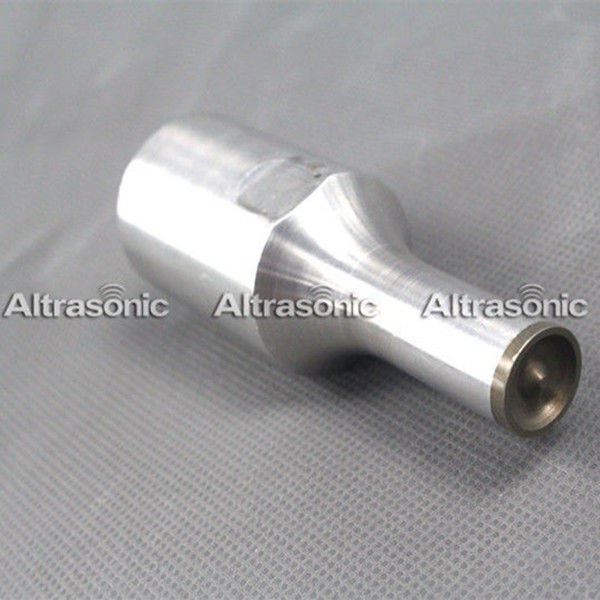

The ultrasonic horn is the generic term for all ultrasonic emitters, it is an indispensable part of ultrasonic welding equipment. The function of the welding horn is to couple the ultrasonic produced by the transducer to the processed object.

The material of the welding horn:

1.Titanium

high price, excellent performance good toughness and low loss, difficult to be processed;

Its amplitude can reach to 60mm.

2. Aluminum

low price, fast loss, easy to be processed;

Its highest amplitude less than 300mm.

3. Steel

too hard to be made as horn;

its highest amplitude less than 25mm;

It is suitable for cutting but the blowpipe need to be added in for its cooling.

And original German imported materials.

Advantages:

1. application in riveting, forming and welding

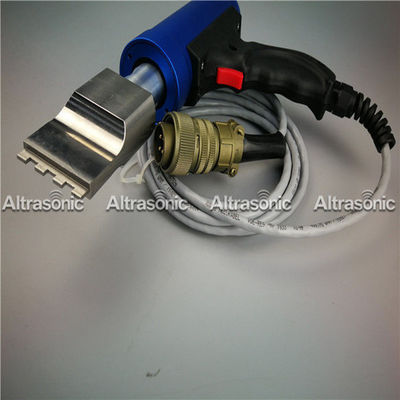

2. light weight, easy to take, easy to operate (handheld)

3. Equipped with welding timer

4. Easty to set time welding

5. Equipped with an overload protection circuit( Voltage, current, phase, temperature, output)

6. FET power output

7. Automatic resonance

8. Maintain the amplitude function automatically

9. Starting: achieving maximum power with 105msec

Payment:

Tag: ultrasonic spot welder,sonic welding machine

FAQ:

1.Do you provide samples ? is it free or extra ?

  Yes, we could offer the sample and it's not free.

2.Can you design lace soldering of the welding horn

 Yes, we can design the welding horn according to your requirement.

3.How about OEM ?

  We provide OEM service ,and if you want printing your own logo on inner box , just send us your logo    style ,and the we will give you the quotation.
