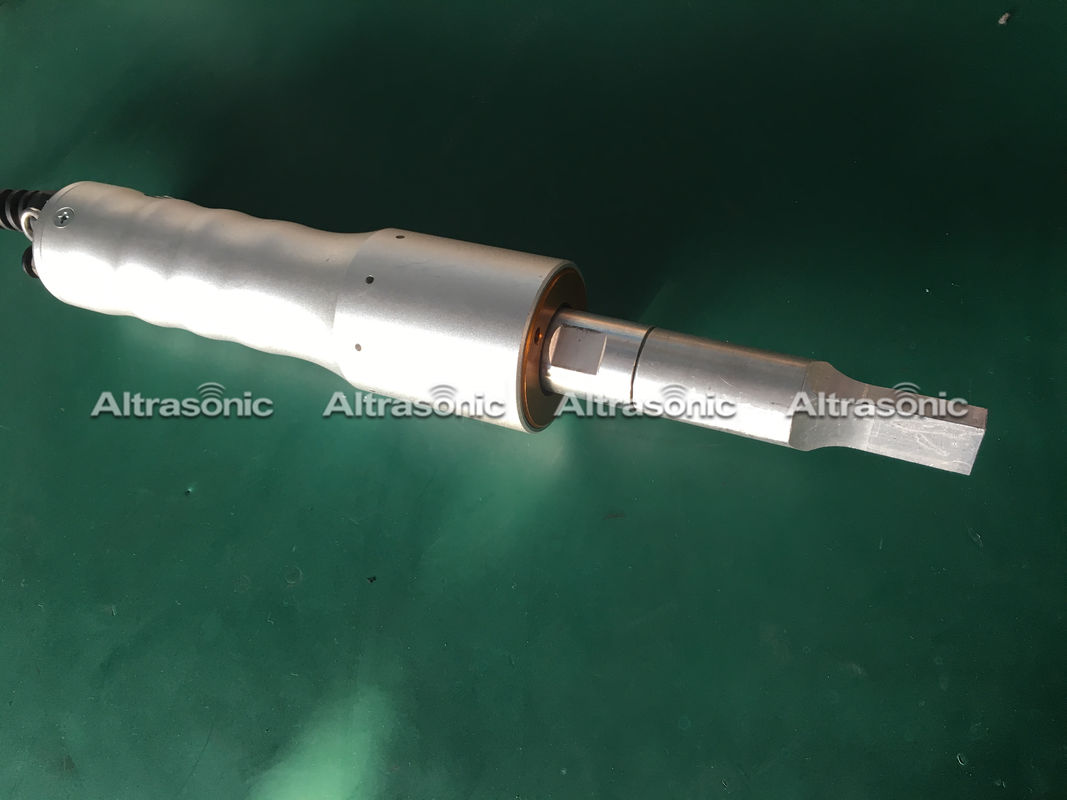

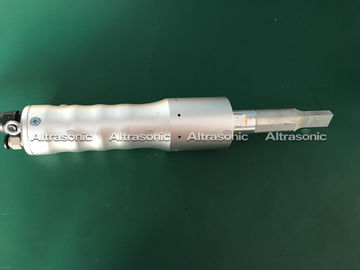

1000W 30 Khz Portable Ultrasonic Spot Welding Machine with Protective Sleeve

Front Spoiler Commonly Known As Air Dam Is One Of The Ultrasonic Puncture Welding Product

Specifications:

Gun type: in accordance with the shape design of human body engineering, ultrasonic start switch is located on the trigger, easy to grasp and use the welding operation, especially suitable for horizontal or vertical.

Cylinder type: for the appearance of design straight, ultrasonic start switch is located outside the cylinder, easy welding and hand carried, can also be installed between the on machine, welding operation for each direction.

Advantages and Disadvantages of Ultrasonic in Auto Industry.

Advantages:​

• Equipped with welding timer
• Light weight, easy to take, easy to operate (handheld)
• Easty to set time welding
• Application in riveting, forming and welding
• Equipped with an overload protection circuit( Voltage, current, phase, temperature, output
• Maintain the amplitude function automatically
• Starting: achieving maximum power with 105msec

Disadvantages:

Limitation of measure, shape and material.(ultrasonic welding for PP, PC, ABS, PA, PS, AMMA plastic).

Different Applications of Ultrasonic Spot Welder

Ultrasonic welding: ultrasonic vibration with ultrasonic welding mould, the ultrasonic welding energy conduction to the plastic surface, resulting in local temperature, so that the plastic surface melting. Under the pressure of the ultrasonic hand, so to weld plastic, beautiful, strong effect.

Ultrasonic implants: the nut screws or other metal into plastic work piece. Ultrasonic energy through the ultrasound machine will be transmitted to the metal. The high-speed vibration and heat, the pressure in the ultrasound machine to make metal objects embedded directly into the plastic inside.

Different Types of Horn

Titanium
high price, excellent performance good toughness and low loss, difficult to be processed;
Its amplitude can reach to 60mm.

Aluminum
low price, fast loss, easy to be processed;
Its highest amplitude less than 300mm.

Steel
too hard to be made as horn;
its highest amplitude less than 25mm;
It is suitable for cutting but the blowpipe need to be added in for its cooling.

Payment:

Tag: ultrasonic spot welder,sonic welding machine

FAQ:

1. What is ultrasonic puncture welding?

Ultrasonic puncture welding is only one kind of ultrasonic welding. It belongs to energy welding or destructive welding. It is widely used in auto industry.

2.How to use ultrasonic puncture welding technology?

It was decided by product material, best of same material, or a mixture of materials and other materials. It depends on whether the ultrasonic wave of two kinds material can be fused. You can send the material to try to test.

3.How to design ultrasonic puncture welding?

Usually it is up and down welding. The characteristics of puncture welding, there will certainly be a scar on one side, the other side may not be seen. Many customers are concerned about material issues and also they care about how to design. There are some differences in the products of different ultrasonic puncture welding.

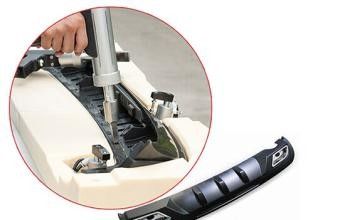

4.What is the ultrasonic puncture welding of Auto tail spoiler welding?

Automobile spoiler welding machine is also known as auto tail air dam welding machine. Using ultrasonic puncture welding, the two ABS injection parts are directly welded together without any media, achieving the purpose of aesthetic appearance, high efficiency, and firmness. No damage, cracks or deformation of the welding surface and the back.
