Portable Penetration Ultrasonic Spot Welding Machine With Reserve Tankpad

China Portable Penetration Ultrasonic Spot Welding Machine With Reserve Tankpad supplier
Portable Penetration Ultrasonic Spot Welding Machine With Reserve Tankpad supplier Portable Penetration Ultrasonic Spot Welding Machine With Reserve Tankpad supplier Portable Penetration Ultrasonic Spot Welding Machine With Reserve Tankpad supplier

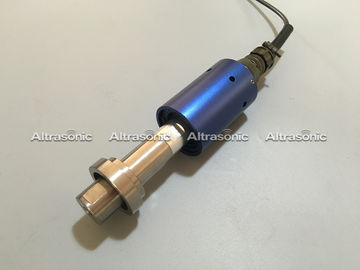

Large Image :  Portable Penetration Ultrasonic Spot Welding Machine With Reserve Tankpad

Product Details:

Place of Origin: CHINA
Brand Name: Altrasonic
Certification: CE
Model Number: HSP35

Payment & Shipping Terms:

Minimum Order Quantity: 1 Unit
Price: Negotiation
Packaging Details: Carton or Wooden Case
Delivery Time: Within 7 workdays after receipt total amount
Payment Terms: T/T, Western Union
Supply Ability: 2000pcs per month
Contact Now
Detailed Product Description
Product Name: 35 Khz Portable Ultrasonic Spot Welder Frequency: 35Khz±1 KHz
Power: 900W Frequency Tuning Method: Auto Tuning
Components: Ultrasonic Transducer, Welding Horn, Protective Sleeve And Digital Generator Welding Type: Hand Held Operation

Portable Ultrasonic Penetration Welding With Reserve Tankpad





Specifications:



  Gun Type Cylinder Type
Model HS-35G HS-28G HS-28G HS-20G HS-28C HS-28C HS-28C
Frequency 35k 28k 28k 20k 28k 28k 28k
Power 700 300&500 400&700 900 300&500 400&700 500&800
Horn ≤10mm ≤10mm ≤12mm ≤13mm ≤8mm ≤12mm ≤12mm
Housing Diameter 51mm 64mm 40mm 45mm 60mm
Handle Size 100mm×45mm×32mm —— —— ——
Weight Without Wire and Horn 0.6kg 1.3kg 1.3kg 1.5kg 0.6kg 0.6kg 1.3kg
Digital generator
Analog generator



Gun type: in accordance with the shape design of human body engineering, ultrasonic start switch is located on the trigger, easy to grasp and use the welding operation, especially suitable for horizontal or vertical.

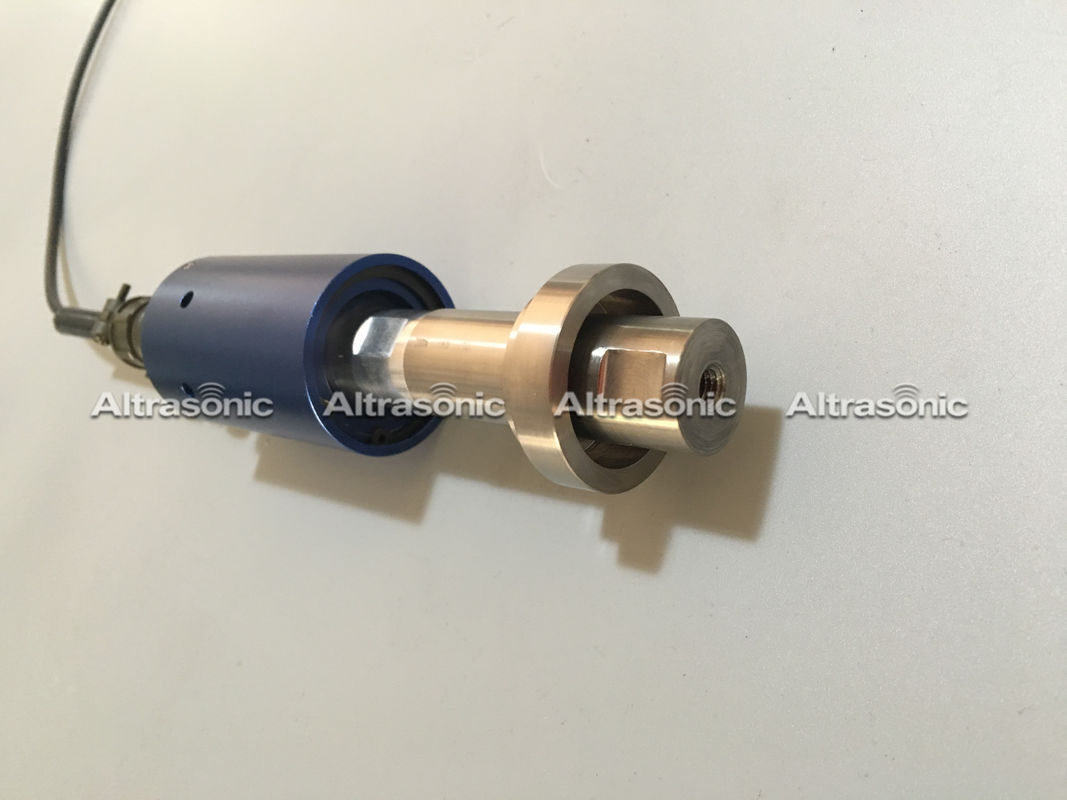

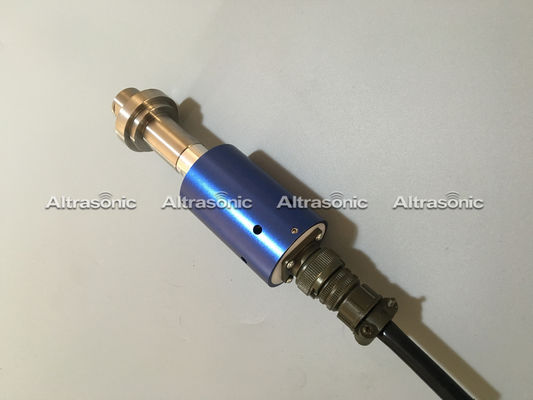

Cylinder type: for the appearance of design straight, ultrasonic start switch is located outside the cylinder, easy welding and hand carried, can also be installed between the on machine, welding operation for each direction.





Description:



Independent research and development on power hand-held ultrasonic spot welding machine with 28K, 35K,30K three different frequencies. Can be different for the following purposes;

Ultrasonic welding: ultrasonic vibration with ultrasonic welding mould, the ultrasonic welding energy conduction to the plastic surface, resulting in local temperature, so that the plastic surface melting. Under the pressure of the ultrasonic hand, so to weld plastic, beautiful, strong effect.

Ultrasonic implants: the nut screws or other metal into plastic work piece. Ultrasonic energy through the ultrasound machine will be transmitted to the metal. The high-speed vibration and heat, the pressure in the ultrasound machine to make metal objects embedded directly into the plastic inside.

Ultrasonic riveting: the nature of metal and plastic or two different plastic bonding together, can make use of ultrasonic riveting machine, so that the weldment hard brittle, beautiful, strong.

Ultrasonic welding: the use of ultrasound machine small welding head, the two pieces of plastic products into multi-point welding, or welding the first row of teeth on a direct pressure on the two plastic work piece, so as to achieve the effect of ultrasonic welding.

Portable Ultrasonic Plastic Spot welding gun principle:
When the ultrasonic role in the thermoplastic plastic contact surface, it will generate tens of thousands of times per second, high frequency vibration, this high-frequency vibration, ultrasonic energy through the ultrasonic wave transmitted to the mold to ultrasonic welding material surface, it will produce high-temperature materials. Plastic contact surface resulting in rapid melting, coupled with stress, it blend and coagulation, so that to achieve the purpose of ultrasonic welding.





Applications In Electronic Component:



Electronic upgrading of products, welding requirements for plastic parts is higher and higher.And ultrasonic welding technology with environmental protection, energy saving, security, and the advantages of without adjuvant, adapt to the high demand of electrical and electronic industry.Application of ultrasonic welding technology of electronic equipment and accessories are: battery shell, chargers, valve control type sealed lead-acid battery maintenance, 3 inches floppy disk, U disk, SD card, CF card, USB connector, video, computer, digital watches, mobile phones, MP3, disk, mobile phone battery, charger, mobile phone shell, setting device, switch socket, prepaid water meter meter, communications equipment, cordless phones, mobile phone accessories, following from bluetooth, etc.





Competitive Advantage:



Rapid sonotrode exchange

High quality, heavy duty aluminum housing

High frequency and control cable to the ultrasound generator are in a strong and highly flexible braided plastic sheet

Timer-controlled air cooling as an option

Mobile – can be transported by handle on the generator case





Portable Ultrasonic Penetration Welding With Reserve Tankpad





Portable Penetration Ultrasonic Spot Welding Machine With Reserve Tankpad



Portable Penetration Ultrasonic Spot Welding Machine With Reserve Tankpad





Portable Penetration Ultrasonic Spot Welding Machine With Reserve Tankpad



Portable Penetration Ultrasonic Spot Welding Machine With Reserve Tankpad





Portable Penetration Ultrasonic Spot Welding Machine With Reserve Tankpad



Portable Penetration Ultrasonic Spot Welding Machine With Reserve Tankpad
